Owner & Operator's Manual
Model No
Voltage
9494310
100-120V 50/60Hz
9494311
230V 50/60Hz
Description
Safety ...............................................
Features ...........................................
Installation ........................................
Control Panel Description .................
Operating Instructions ......................
Setup ................................................
Maintenance .....................................
Specifications ...................................
Service Parts ....................................
Declaration of Conformity .................
Accessories ......................................
Product Service ................................
Warranty...........................................
1
Page
2
3
3
5
6
12
13
14
15
16
17
18
Back
Advertisement
Table of Contents
Related Manuals for DENTSPLY CERAMPRESS Qex
Summary of Contents for DENTSPLY CERAMPRESS Qex

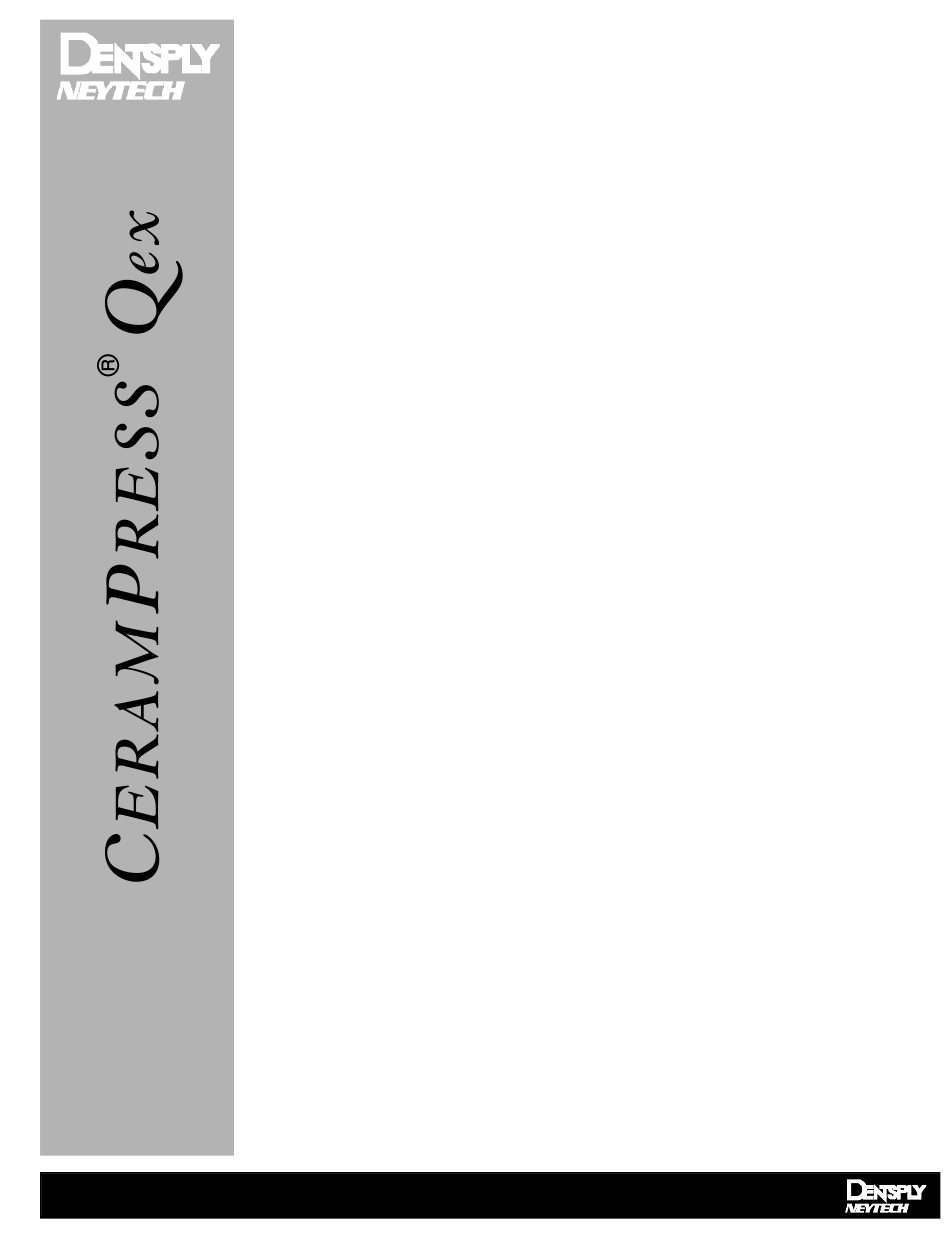

- Page 1 Owner & Operator's Manual Model No Voltage 9494310 100-120V 50/60Hz 9494311 230V 50/60Hz Description Page Safety ..........Features ........... Installation ........Control Panel Description ....Operating Instructions ...... Setup ..........Maintenance ........Specifications ........Service Parts ........Declaration of Conformity ....Accessories ........
-
Page 5: Control Panel Description

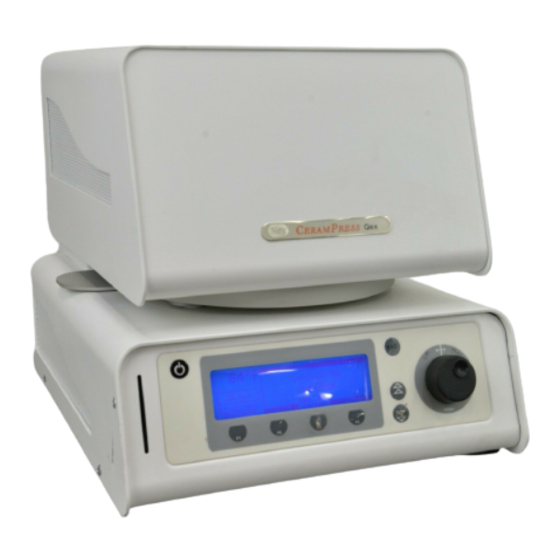

Stop, Copy, etc. LCD DISPLAY DESCRIPTION: Area to customize furnace by adding laboratory name. Muffle Temperature General Program Information Lab: xxxxxxxxx 119°C Absolute Cerampress Qex Vacuum Nite Mode Pressure 700mm (barometer) 01.01.2000 Date/Time Press Ceramic Setup 01:35:35 Command Names of F1, F2,... -
Page 6: Getting Started
Note: For a detailed explanation of the Control Panel see the description on page 4. PRESSING OPERATION (PRESS MODE): • Press the On/Off Key On/Off CeramPress Qex LCD Contrast (Rotate adjustment wheel to set the display contrast level.) The mode selection screen is displayed after 3 seconds: 119°C... - Page 7 • Pressing Start key (F3) starts the program and the Start function key is changed to Stop. Stop key (F3) is replaced by Start once the start temp is reached. At this point the Cerampress Qex sounds a beep to alert the operator to load the pressing ring, pellets and ring plungers.
-
Page 8: Card Operation
CERAMIC OPERATION (CERAMIC MODE): 119°C Lab: Cerampress Qex 700mm Nite Mode 01.01.2000 01:35:35 Press Ceramic Setup Mode Selection Mode selection • Pressing the “Ceramic” key (F3) displays a listing of programs 1 thru 100 - no symbol used. • The muffle temperature is controlled at the Lo Temp setting from the selected program. - Page 9 CERAMIC MODE PARAMETER TABLE Parameter Description Programming Range Dry Pos Muffle position at start of program 0 - 9 (0 = closed) Time to dry the work 00:00 - 59:59 min Close Closing time of muffle in steps 00:00 - 59:59 min Lo Temp Firing cycle starting temp 100 - 800°C (212°F - 1472°F)
- Page 10 SPECIAL PROGRAM OPERATION: To gain access to this feature a “Special Card” is required. In this mode, the operator has total flexibility in the design of programs such as ceramic only or Titanium based firing. Insert this “Special Card” while in the Mode Selection Screen. The card programs are downloaded automati- cally to the furnace.
