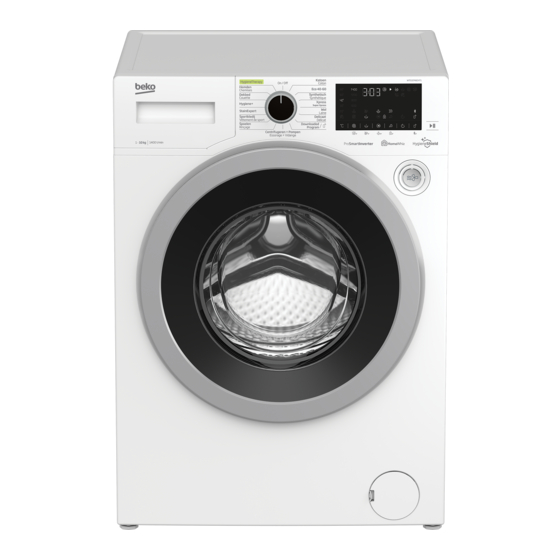

- Page 1 Washing Machine User Manual WTE10746CHT1 Document Number : 2820529375_EN/ 22-03-21.(9:03)
-
Page 2: General Safety Instructions
General safety instructions This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 Life and property safety Never place the product on a carpet-covered floor. Otherwise, lack of airflow beneath the machine will cause electrical parts to overheat. - Page 3 Laundry stained with Liquid cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers must be washed in hot water with plenty of detergent beforehand. After the washing programme, it can be used in the Refresh programme or in the Wash&Wear auxiliary function selection.
-
Page 4: Children's Safety
In failures that cannot be repaired using information given in safety instructions, turn off the machine, unplug the power cable and call the Authorised Service Agent. The machine must not be used only in the Refresh programme for a long time. -
Page 5: Electrical Safety
Electrical products are dangerous for the children. Keep children away from the product when it is in use. Do not allow them to play with the product. Use child lock to prevent children from intervening with the product. Do not forget to close the loading door when leaving the room where the product is located. -
Page 6: Important Instructions For Environment
Important instructions for environment 2.1 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 7: Technical Specifications
Technical specifications Supplier name or trademark Beko WTE10746CHT1 Model name 7158143800 Rated capacity (kg) Maximum spin speed (rpm) 1400 Built-in Height (cm) Width (cm) Depth (cm) Single Water inlet / Double Water inlet • / - • Available Electrical input (V/Hz) -
Page 8: Appropriate Installation Location
4.1 Installation • Apply to the nearest authorized service agent for the installation of your product. • Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility. • Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures. -
Page 9: Connecting Water Supply
WARNING: Remove the transportation safety bolts before operating the product! Otherwise, the product will get damaged. Keep the transportation safety bolts in a safe place to reuse when the product needs to be moved again in the future. Install the transportation safety bolts in reverse order of the disassembly procedure. Never move the product without the transportation safety bolts properly fixed in place! 4.1.4 Connecting water supply The water supply pressure required to run the product is between 1 to 10 bars (0.1 –... -
Page 10: Adjusting The Feet
• The end of the hose should not be bent, it should not be stepped on and the hose must not be pinched between the drain and the product. • If the length of the hose is too short, use it by adding an original extension hose. Length of the hose may not be longer than 3.2 m. -
Page 11: Sorting The Laundry
4.2 Preparation 4.2.1 Sorting the laundry • Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. • Always obey the instructions given on the garment tags. 4.2.2 Preparing laundry for washing • Laundry items with metal attachments such as, underwiring, belt buckles or metal buttons will damage the product. -
Page 12: Correct Load Capacity
4.2.5 Correct load capacity The maximum load capacity depends on the type of laundry, the degree of soiling and the desired washing programme. The product automatically adjusts the water amount according to the weight of the laundry put inside it. WARNING: Comply with the information in “4.3.3 Programme and consumption table”. -
Page 13: Using Softeners
• Do not use amounts exceeding the dosage quantities recommended on the detergent package to avoid problems of excessive foam, poor rinsing, financial savings and finally, environmental protection. • Use less detergent for smaller loads, lightly soiled clothes or when using short duration programmes especially in soft water areas. -
Page 14: Using Bleaches
Using bleaches • Select a programme with prewash and add the bleaching agent at the beginning of the prewash. Do not put detergent in the prewash compartment. As an alternative application, select a programme with extra rinse and add the bleach while the product is taking water from the detergent compartment during first rinsing step. •... -
Page 15: Operating The Product
4.3 Operating the product 4.3.1 Control panel 1 - Programme Selection knob 7 - End Time Setting button 2 - Temperature level lights 8 - Auxiliary Function button 3 3 - Spin level indicator lights 9 - Auxiliary Function button 2 4 - Display 10 - Auxiliary Function button 1 5 - Start / Pause button... -
Page 16: Programme And Consumption Table
4.3.3 Programme and consumption table Auxiliary functions Programme Temperature (°C) 2,75 • • • • • 1400 Cold - 90 2,00 • • • • • Katoen 1400 Cold - 90 1,10 • • • • • 1400 Cold - 90 40 *** 58,0 0,855... -
Page 17: Programme Selection
The auxiliary functions in the table may vary according to the model of your machine. Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage. You can see the washing duration on the display of your machine while selecting a programme. - Page 18 • Katoen (Cottons) You can wash your durable cotton laundry (sheets, bedlinen, towels, bathrobes, underwear etc.) in this programme. When the quick wash function button is pressed, programme duration becomes notably shorter but effective washing performance is ensured with intense washing movements. If the quick wash function is not selected, superior washing and rinsing performance is ensured for your heavily soiled laundry.
- Page 19 • Centrifugeren + Pompen (Spin+Drain) You can use this function to remove the water on the garment of drain the water in the machine. • Spoelen (Rinse) Use when you want to rinse or starch separately. Curtain • You can use this programme to wash your tulles and curtains. As their meshed texture causes excessive foaming, put little amount of detergent into the main wash compartment.
-
Page 20: Temperature Selection
Below you can find the soil groups that can be selected with the “Quick Wash” setting button: When “Quick Wash” is not When the “Quick Wash” button When the “Quick Wash” button selected is pressed once is pressed twice Sweat Blood Collar soil Chocolate... -
Page 21: Spin Speed Selection
You can also change the temperature after the washing starts. This change can be made if the washing steps allow it. Changes cannot be made if the steps do not allow it. If you scroll to cold wash option and press Temperature Adjustment button again, the recommended maximum temperature for the selected programme appears on the display. -
Page 22: Auxiliary Functions
Also the frames of the auxiliary function selected for the current programme after the washing has started remains illuminated. Some functions cannot be selected together. If a second auxiliary function conflicting with the first one is selected before starting the machine, the function selected first will be cancelled and the second auxiliary function selection will remain active. -
Page 23: Functions/Programmes Selected By Pressing The Function Keys For 3 Seconds
4.3.8.2 Functions/Programmes Selected by Pressing the Function Keys for 3 Seconds • Drum Clean+ Press and hold the auxiliary function button 1 for 3 seconds to select the programme. Use regularly (once in every 1-2 months) to clean the drum and provide the required hygiene. Steam is applied before the programme to soften the residues in the drum. -
Page 24: Starting The Programme
To deactivate bluetooth connection: Press and hold Remote Control function button for 3 seconds. Countdown “3-2-1” will be displayed, and then Bluetooth icon will disappears on the display. First setup of the HomeWhiz application must be complete for the bluetooth connection to be activated. After setup, pressing the remote control function button while the knob is at Download Programme/Remote Control position will automatically activate the bluetooth connection. -
Page 25: Loading Door Lock
4 Programme follow-up indicator lights on the display will show the current programme step. 4.3.11 Loading door lock There is a locking system on the loading door of the machine that prevents opening of the loading door in cases when the water level is unsuitable. "Door Locked"... -
Page 26: Switching The Machine To Pause Mode
4.3.12 Changing the selections after programme has started Adding laundry after the programme has started If the water level in the machine is suitable when you press Start/Pause button, the door lock will be deactivated and the door will open, allowing you to add garments. The door lock icon on the display goes off when the door lock is deactivated. -
Page 27: End Of Programme
4.3.14 End of programme End symbol appears on the display when the programme is completed. If you do not press any button for 10 minutes, the machine will switch to OFF mode. Display and all indicators are turned off. Completed programme steps will be displayed if you press On/Off button. 4.3.15 HomeWhiz Feature and Remote Control Function HomeWhiz allows you to use your smart device to check your washing machine and get information about its status. - Page 28 • Return to the HomeWhiz application and wait until the setup is complete. When setup is complete, give your washing machine a name. Now, you can tap and see the product you have added in the HomeWhiz Aplication. If you cannot successfully perform the setup within 5 minutes, your washing machine will turn off automatically. In this case, you will have to start over the setup procedure.
- Page 29 When the Remote Control is on, you can only manage, turn-off and status follow-up operations through your washing machine. And all functions except child lock can be managed through the application. You can follow whether the Remote Control function is On or Off through the function indicator on the button. If the Remote Control function is Off, all the operations are handled on the washing machine and only status follow-up is allowed on the application.
-
Page 30: Maintenance And Cleaning
4.4 Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 4.4.1 Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time. -
Page 31: Draining Remaining Water And Cleaning The Pump Filter
4.4.5 Draining remaining water and cleaning the pump filter The filter system in your machine prevents solid items such as buttons, coins and fabric fibres clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend. -
Page 32: Troubleshooting
Troubleshooting Problem Cause Solution Programs do not start after the Start / Pause / Cancel button is not pressed. • Press Start / Pause / Cancel button. loading door is closed. It may be difficult to close the loading door in case of •... - Page 33 Problem Cause Solution Washing takes longer than Water pressure is low. • Product waits until taking in adequate amount specified in the user manual.(*) of water to prevent poor washing quality due to the decreased amount of water. Therefore, the washing time extends.
- Page 34 Problem Cause Solution Washing performance is poor: Oily Regular drum cleaning is not applied. • Clean the drum regularly. For this, please see stains appeared on the laundry. “Cleaning the loading door and the drum” (**) Washing performance is poor: Odours and bacteria layers are formed on the drum as •...
- Page 35 Problem Cause Solution Detergent residue in the detergent Detergent was put in wet drawer. • Dry the detergent drawer before putting in detergent. drawer. (**) Detergent has gotten damp. • Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
- Page 36 Repair and repair attempts by end-users for parts not included in such list and/or not following the instructions in the user manuals for self-repair or which are available in support.beko.com, might give raise to safety issues not attributable to Beko, and will void the warranty of the product.
