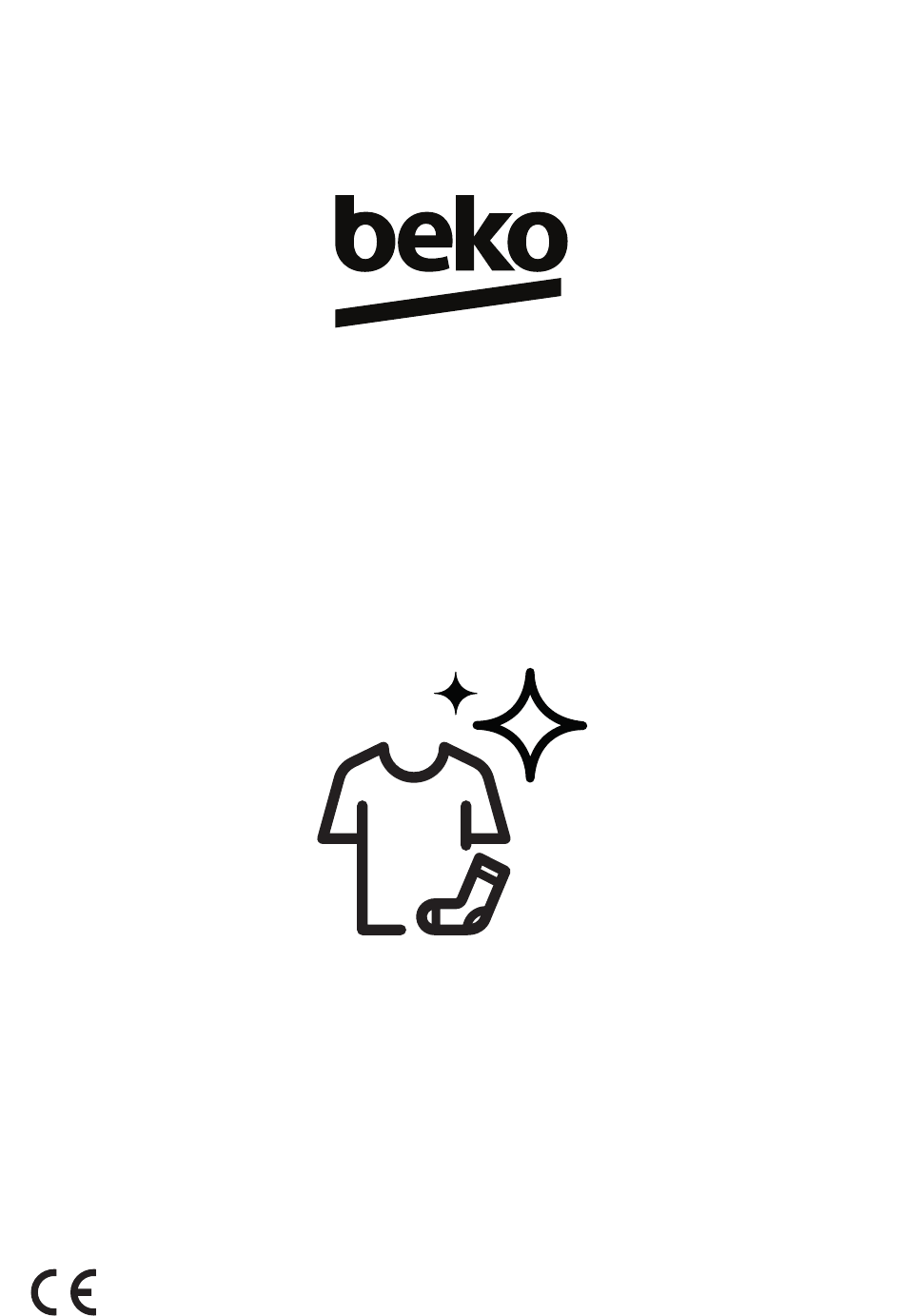

- Page 1 Washing Machine User Manual WTE10726W Document Number : 2820529747_EN/ 07-10-21.(10:23)
- Page 2 General safety instructions This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 Life and property safety Never place the product on a carpet-covered floor. Otherwise, lack of airflow beneath the machine will cause electrical parts to overheat.
- Page 3 should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone. Children under the age of 3 should be kept away unless continuously supervised. Packaging materials are dangerous for the children. Keep packaging materials in a safe place away from reach of the children.
- Page 4 Important instructions for environment 2.1 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling.
- Page 5 Technical specifications Supplier name or trademark Beko Model name WTE10726W Rated capacity (kg) Maximum spin speed (rpm) 1400 Built-in Height (cm) Width (cm) Depth (cm) Single Water inlet / Double Water inlet • / - • Available Electrical input (V/Hz)
- Page 6 4.1 Installation During the installation, when you turn on the product for the first time, calibration mode* must be run. Calibration mode provides the machine to detect load amount correctly. To activate calibration mode, Drum Clean** program should be selected, and spin speed option should be cancelled. During the cycle, drum must be empty.
- Page 7 CAUTION: Remove the transportation safety bolts before operating the washing machine! Otherwise, the product will be damaged. Keep the transportation safety bolts in a safe place to reuse when the washing machine needs to be moved again in the future. Install the transport safety bolts in reverse order of the disassembly procedure.
- Page 8 4.1.6 Adjusting the feet CAUTION: In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and cause crushing and vibration problems.
- Page 9 4.2 Preparation 4.2.1 Sorting the laundry • Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. • Always observe the instructions given on the garment care labels. 4.2.2 Preparing laundry for washing • Laundry items with metal attachments such as, underwiring, belt buckles or metal buttons will damage the machine.
- Page 10 4.2.6 Using detergent and softener When using detergent, softener, starch, fabric dye, bleach and descaling agents; read the manufacturer's instructions written on the package and follow the dosages specified. Use measuring cup if available. The detergent drawer is composed of three compartments: –...
- Page 11 Using liquid detergents If the product contains a liquid detergent cup: • Put the liquid detergent container into the compartment no “2”. • If the liquid detergent lost its fluidity, dilute it with water before putting it into the detergent container. If the product is equipped with a liquid detergent part: •...
- Page 12 • Oxygen-based bleach can be used together with the detergent. However, if its thickness is not the same with the detergent, put the detergent first into the compartment no. "2" in the detergent drawer and wait until the detergent flows while the product is taking in water. While the product continues taking in water, add bleach in the same compartment.
- Page 13 4.3 Operating the product 4.3.1 Control panel 1 - Programme Selection knob 7 - End Time Setting button 2 - Temperature level lights 8 - Auxiliary Function button 3 3 - Spin level indicator lights 9 - Auxiliary Function button 2 4 - Display 10 - Auxiliary Function button 1 5 - Start / Pause button...
- Page 14 4.3.3 Programme and consumption table Auxiliary functions Selectable Programme temperature range °C Cold - 90 2,65 1400 • • • • • Cottons Cold - 90 1,90 1400 • • • • • Cold - 90 1,10 1400 • • •...
- Page 15 The auxiliary functions in the table may vary according to the model of your machine. Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage. You can see the washing duration on the display of your machine while selecting a programme.
- Page 16 Allergy UK is the brand of the British Allergy Association. Seal of Approval is created to guide people that require recommendation about a product that the related product restricts / reduces / eliminates the allergens or reduces the allergen content significantly in the ambient where allergy patients exist.
- Page 17 • Lingerie You can use this programme to wash delicate garments that are suitable for hand wash and delicate women's underwear. Small amount of garments must be washed in a washing net. Hooks, buttons etc. must be done up and zips must be zipped up. •...
- Page 18 • Towel Use this program to wash durable cotton laundry such as towels. Load the towels into the machine paying attention to place them in a way that they will not contact the bellow or the glass. 4.3.6 Temperature selection Whenever a new programme is selected, the recommended temperature for the programme appears on the temperature indicator.
- Page 19 If you want to spin the laundry held in water, adjust the Spin Speed and press Start / Pause button. The programme will resume. Water is drained, laundry is spun and the programme is completed. 4.3.8 Auxiliary function selection Select the desired auxiliary functions before starting the programme. Whenever a programme is selected, icons of the auxiliary function symbol that is selected together with it illuminates.
- Page 20 • Customized Programme This auxiliary function can only be used for Cotton and Synthetics programmes together with the HomeWhiz application. When this auxiliary function is activated, you can add up to 4 auxiliary rinsing steps to the programme. You can select and use some auxiliary functions even though they are not found on your product. You can increase and decrease the time of the Cottons and Synthetics programmes within a safe range.
- Page 21 To deactivate the Child Lock: Press and hold Auxiliary Function button 3 for 3 seconds. After the countdown as “3-2-1" on the display is over, child lock symbol disappears. • Bluetooth 3’’ You can use the bluetooth connection function to pair your machine with your smart device. This way, you can use your smart device to get information about your machine and control it.
- Page 22 4.3.10 Starting the programme 1 Press Start / Pause button to start the programme. 2 The Start / Pause button's light which was off before starts to illuminate steadily now, indicating that the programme has started. 3 Loading door is locked. The door lock symbol appears on the display after the loading door is locked. 4 Programme follow-up indicator lights on the display will show the current programme step.
- Page 23 • Remove the loading door emergency handle behind the filter cover with a tool. • Open the loading door by pulling the loading door emergency handle downwards. • Try to pull the handle downwards again if the loading door is not opened. •...
- Page 24 You can also change the speed and temperature settings. See "Speed selection" and "Temperature selection". The loading door will not open if the water temperature in the machine is high or the water level is above the loading door baseline. 4.3.13 Cancelling the programme The programme is cancelled when program selection knob is turned to a different programme or machine is turned off and on again using the program selection knob.
- Page 25 • When the appliance is in HomeWhiz setup mode, you will see an animation on the display and the bluetooth icon will flash until your machine gets paired with smart device. Only programme knob will be active in this mode. Other buttons will be inactive. On the screen you see on the app, select the washing machine and press next.
- Page 26 WARNING: When the bluetooth connection is on in your product, Remote Control function will be selectable. If the Remote Control function cannot be selected, check the connection status. If the connection cannot be established, repeat the initial set-up settings on the appliance. WARNING: For safety reasons, the product’s door will remain locked while the Remote Control function is enabled, independently of the operating mode.
- Page 27 4.4 Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 4.4.1 Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time.
- Page 28 4.4.5 Draining remaining water and cleaning the pump filter The filter system in your machine prevents solid items such as buttons, coins and fabric fibres clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend.
- Page 29 Troubleshooting Problem Cause Solution Programmes do not start after the Start / Pause / Cancel button is not pressed. • Press Start / Pause / Cancel button. loading door is closed. It may be difficult to close the loading door in case of •...
- Page 30 Problem Cause Solution Washing takes longer than Water pressure is low. • Product waits until taking in adequate amount specified in the user manual.(*) of water to prevent poor washing quality due to the decreased amount of water. Therefore, the washing time extends.
- Page 31 Problem Cause Solution Washing performance is poor: Insufficient amount of detergent is used. • Use the recommended amount of detergent Stains persist or the laundry is not appropriate for water hardness and the laundry. whitened. (**) Excessive laundry is loaded in. •...
- Page 32 Problem Cause Solution Detergent residue in the detergent Detergent was put in wet drawer. • Dry the detergent drawer before putting in drawer. (**) detergent. Detergent has gotten damp. • Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
