Cardinal Health
Negative Pressure Wound Therapy
Clinician Quick Reference Guide
NOTE: Please refer to the Cardinal Health™ SVED® CLINICIAN User Manual for
detailed instructions and review the Precautions and Contraindications before use.
This can be found at www.infusystem.com/npwt.
Insert Canister
Insert canister in holder by sliding it up into bottom of the Canister Holder. Line up
the two short ports with the Canister Holder and press until it "clicks" into place and
locks. To remove canister, press Canister Release Button, grasp canister at bottom
and pull downward.
Connect the Dressing
Connect the blue end of the tubing to the open port of the canister. Gently twist and
push connector on just enough to seal it. Make sure that the clamp on the tubing is
open.
NOTE: Please refer to the Cardinal Health™ SVED® Clinician User Manual for
instructions on how to properly dress the wound and troubleshoot issues.
Turning the SVED® ON
Press the ON
Button to start therapy. Select desired negative pressure wound
therapy setting by pressing the corresponding Pressure Setting -70, -120, or
-150mmHg
button. The Pressure Setting Button ashes until desired
pressure is reached, after which the button remains lit.
Therapy Lockout
To lock therapy setting, press and hold the desired Pressure Setting
seconds. The SVED® beeps three times indicating therapeutic setting is locked.
Repeat process to unlock therapy setting.
Intermittent Mode
To operate the SVED® in Intermittent Mode, press and hold the desired Pressure
Setting
Button then momentarily press the OFF
begins ashing and the SVED® beeps twice indicating the SVED® is now operating in
Intermittent Mode. Release both buttons. Repeat process to return to Continuous
Mode.
Troubleshooting Alerts
If the SVED® begins to alert, please refer to troubleshooting table on the back.
Turning the SVED® OFF
To turn the SVED® o , press the OFF
© 2020 Cardinal Health. All Rights Reserved. CARDINAL HEALTH, the Cardinal Health LOGO, ESSENTIAL TO CARE and SVED® are trademarks or registered
trademarks of Cardinal Health and may be registered in the US and/or in other countries. All other marks are the property of their respective owners.
®
SVED
™
Button for 3
Button. The ON
Button
Button.

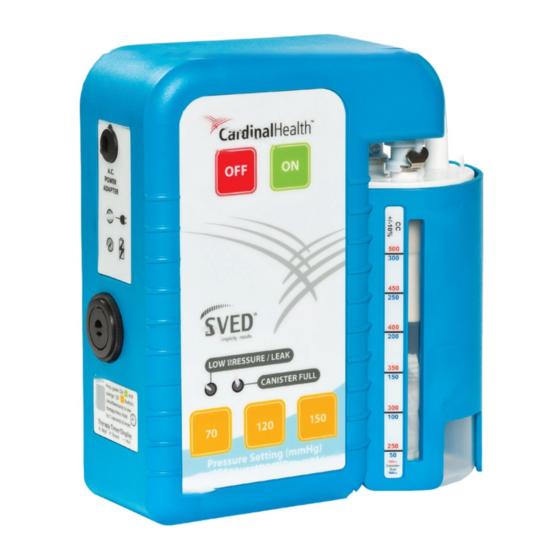

Canister Holder
Canister Release Button
ON Button
OFF Button
Battery Charging Port
Plugged In
Power/Charging Status
Canister Full Alert
Low Pressure/Leak Alert
Therapy Timer/Display
Pressure Settings
Canister
Notice to Users: As with any prescription medical device, failure to follow
product instructions or adjusting settings and performing therapy applications
without the express direction and/or supervision of your trained clinical
caregiver may lead to improper product performance and the potential for
serious or fatal injury.
De brillation: Remove the wound dressing if de brillation is required in the
area of dressing placement. Failure to remove the dressing may inhibit
electrical current transmission and/or patient resuscitation.
Magnetic Resonance Imaging (MRI): The SVED® is not MRI-compatible. Do
not take into the MRI area.
Hyperbaric Oxygen Therapy (HBO): NEVER allow an SVED® — whether on or
o — inside a hyperbaric chamber. The SVED® must be disconnected from the
patient prior to HBO treatment.
For more information and videos visit our website at
www.infusystem.com/npwt
Questions? Contact InfuSystem NPWT Clinical Support
(844) 534-1997
In partnership with
PW 596
Rev 01/21
