SERVICE MANUAL
BINKS "TROPHY" SERIES
HVLP, LVMP & CONVENTIONAL
MANUAL SPRAY GUNS

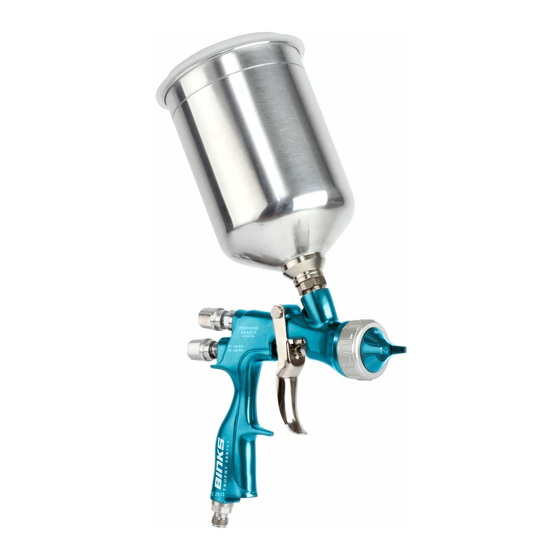

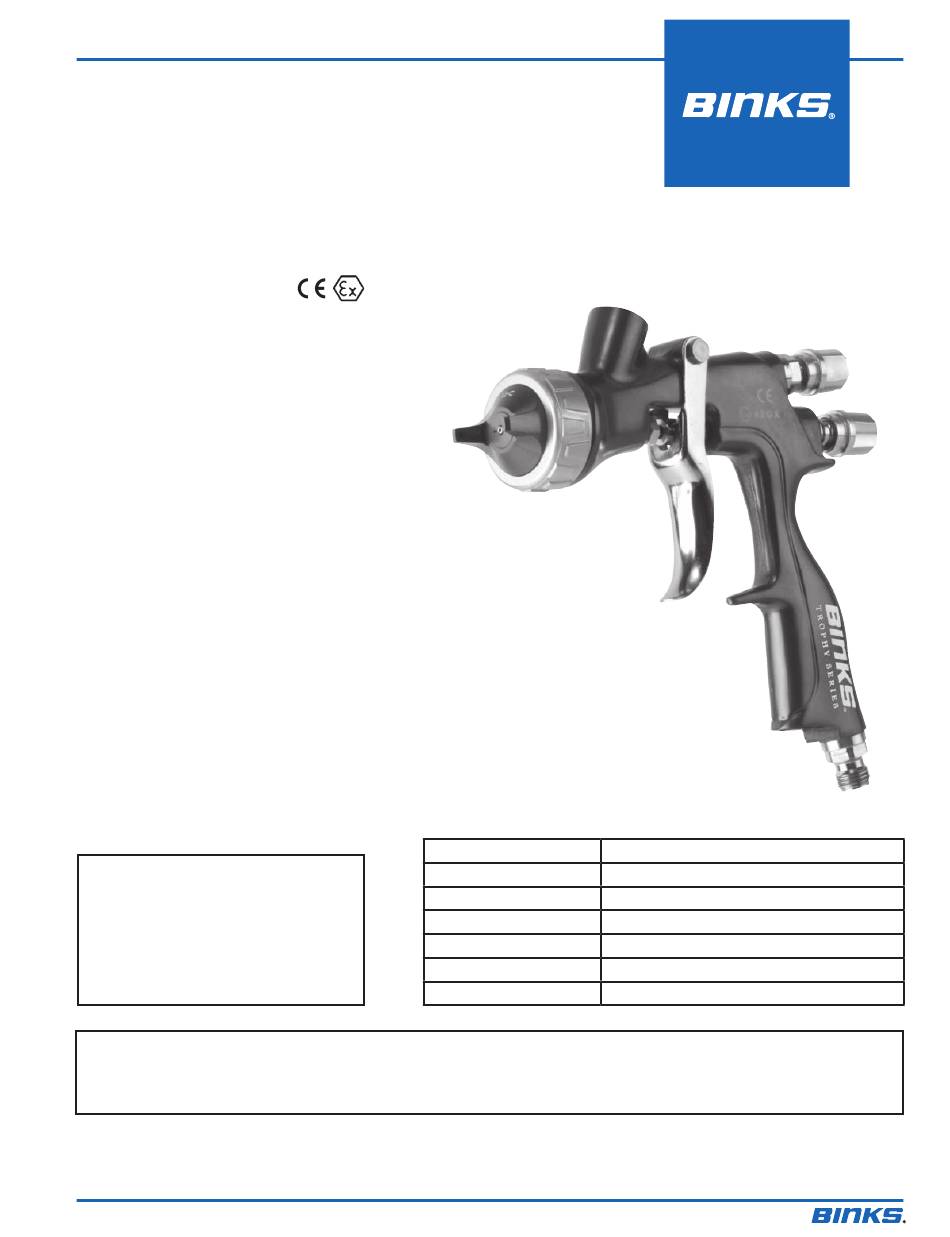

Binks Trophy Series Gravity Spray Gun
is the premier spray gun for use in
gravity feed spray applications and sets a
new standard in durability, ergonomics,
and atomization. The lightweight
ergonomic design offers unsurpassed
comfort and control. The latest advanced
atomization technology has been
incorporated for achieving consistent,
fine finishes when spraying a wide range
of industrial coating applications.
Binks Trophy Series Gravity Spray Guns
are offered in three different atomization
technologies: HVLP, LVMP and
Conventional.
The Trophy HVLP Series of Spray
Guns can be used to operate
at high transfer efficiencies in
compliance with "California South
Coast Air Quality Management
District" regulations as a High
Volume, Low Pressure spray gun.
It is the customer's responsibility to have all operators and service personnel read and understand this manual.
Contact your local Binks representative for additional copies of this manual.
READ ALL INSTRUCTIONS BEFORE OPERATING THIS BINKS PRODUCT.
77-3027-R1.0
GRAVITY FEED
(2466-XXXX-XXXX)
II 2 G X
Maximum Air Pressure
Gun Body
Fluid Path
Fluid Inlet Size
Air Inlet Size
Gun Weight
Wetted Parts
IMPORTANT! DO NOT DESTROY
SPECIFICATIONS
140 psi / 9.6 bar (P-1)
Anodized Aluminum
Stainless Steel
3/8" – 19 NPS / BSP(f)
1/4" NPS / BSP(m)
13.8 oz. / 394 grams (less cup)
Stainless Steel & PTFE
1 / 16
EN
