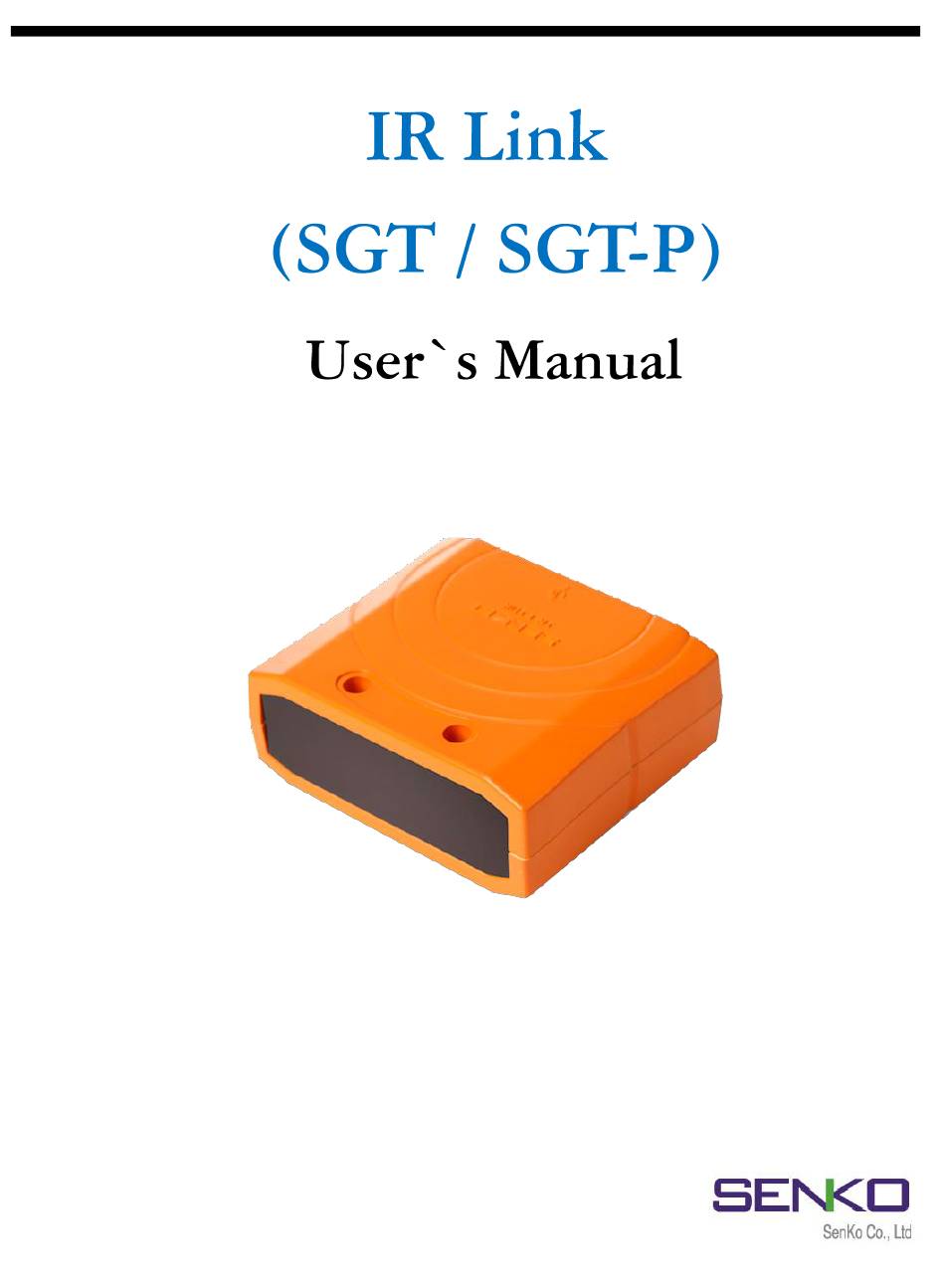

- Page 1 IR Link...
-
Page 2: Table Of Contents
2.1 Download ………………………………………………………….. 2.2 Software Installation …..……………………………………..…. 3. Launch the Software………………………………………………………………… 3.1 Software Interface ……………………………………………….… 3.2 Open IR Link Communication port ..…………………………….… 3.3 Connection Errors ………………………………………………… 3.3.1 Fail Port Open ………….……………………….. 3.3.2 Send Time Out ….…………………………….… 4. SGT/SGT-P Configuration Screen and Function ………………………………….…... -
Page 3: Warning
IR Link WARNING Any unauthorized attempt to repair or modify the product, or any other cause of damage beyond the intended use including damage by fire, lightening, or other hazard, voids liability of the manufacturer. Use the device in a clean environment where there is no hazardous gases. -
Page 4: Overview
1. Overview 1.1 Description The IR Link is a device for conveniently communicating with the SGT & SGT-P single gas detectors. It uses dedicated software provided by SENKO CO., LTD to communicate with the monitor. IR Link enables users to set up calibration concentration levels, alarm set points, and configuration options as well as download logs. -
Page 5: Downloading And Installing The Driver
IR Link 2. Downloading and Installing the Driver 2.1 Download To download the Software, visit the SENKO CO., LTD homepage (www.senko- detection.com) or contact SENKO authorized reseller or service center. 2.2 Software Installation After downloading the file, navigate to the saved location. - Page 6 IR Link The Installation is ready to begin. ✓ Click “Install”. ✓...
- Page 7 ✓ Click the “Finish” button to exit the Setup Wizard. ✓ You may run the Driver now and connect to your SGT or SGT-P now. ✓ Note: Do not open the software if IR Link is not plugged to PC.
-
Page 8: Launch The Software
3. Launch the Software 3.1 Software Interface To launch the Software, plug the IR Link to PC and click the icon, allow the software to make changes to the PC (click “Yes”). When Software is opened, the fields are grayed out and before it can be used, the IR Link must be connected to the SGT or SGT-P. -
Page 9: Connection Errors
IR Link and SGT/SGT-P Infrared port. 4. SGT/SGT-P Configuration Screen and Functions 4.1 Configuration Screen When IR Link automatically scans for an available device after clicking “Open” button, user will be available receive all information on window as shown below:... -
Page 10: Functions (Tool)
LOG: By clicking “LOG”, user can download and display a list of the events (see 4.2.1). CALIBRATION: To perform “Zero” and/or “Span” Calibration via IR Link (see 4.2.2). FIRM: Upgrade current firmware to latest one to get more benefit from your device. -
Page 11: Log
The Log file will be automatically downloaded and can be seen in a new window. 4.2.2 Calibration User can perform both ZERO and SPAN calibrations via IR Link. When click ZERO, the software asks, “Do you want to start Zero Calibration?”. Click “Yes” to proceed the calibration. -
Page 12: Functions (Sgt-Sgtp)
IR Link 4.3 Functions (SGT-SGTP) Serial Number: Serial number of SGT/SGT-P. Firmware Version: The current firmware version. User ID/Message: The User ID can be used to add a usage message. Display: Users can choose to display either the real time "Sensor Reading" or "Sensor Life remaining.“... -
Page 13: Optional Functions
Save: To save the current configurations as (*cfg) file. Exit: To finish and close the IR Link Wizard. Calibration: User can perform both ZERO and SPAN calibrations via IR Link (see 4.2.2). Log Read: To download and display a list of the events (see 4.2.1). -
Page 14: Specification
50 - 406mm (2.0 - 16.0 inches) Power USB Power (5V) Reading & Modifications Alarm Set points to the Senko Single Gas Trap Event logs From the Senko Single Gas Trap Reporting Firmware upgrades to the Senko Single Gas Trap... -
Page 15: Limited Warranty
IR Link Limited Warranty SENKO warrants this product to be free of defects in workmanship and materials- under normal use and service for two years from the date of purchase from the manufacturer or from the product’s authorized reseller. The manufacturer is not liable (under this warranty) if its testing and examination disclose that the alleged defect in the product does not exist or was caused by the purchaser’s (or any third party’s) misuse, neglect, or improper installation,...
