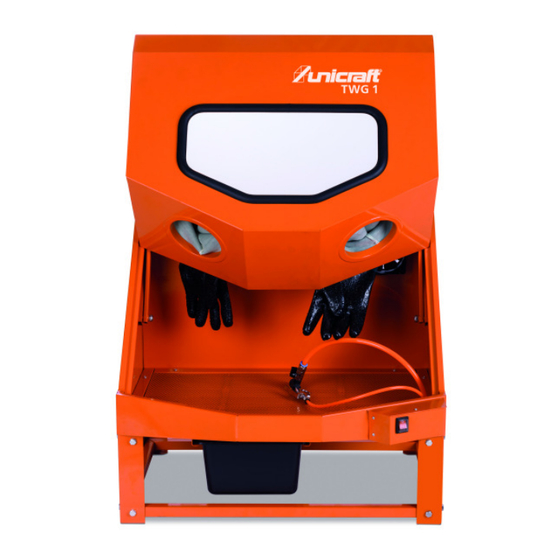

- Page 1 Operating Instructions Part Washing Unit TWG 1 TWG 1...
-
Page 2: Table Of Contents
Stürmer. Passing on as well as copying of this document, the use and distribution of its content are prohibited if not explic-itly permitted. Contra- ventions are liable to compensa-tion. Subject to technical modifications and error. TWG 1 | Version 1.02... -
Page 3: Introduction
Spare parts orders: Fax: 0049 (0) 951 96555-119 Email: ersatzteile@stuermer-maschinen.de We are always interested in valuable experience and knowledge gained from using the application-which then could be shared and be valuable to develop our products even further. TWG 1 | Version 1.02... -
Page 4: Symbol Explanation
- The operator must have all safety devices checked regularly for their good working order and their in- tegrity. TWG 1 | Version 1.02... -
Page 5: Personal Requirements
Certain works may only be performed by specialist per- sonnel of the manufacturer. Other personnel is not au- thorized to perform these works. Please contact our cu- stomer service for the execution of all arising work. TWG 1 | Version 1.02... -
Page 6: Safety Information
Intended use 2.5 Safety information The Part Washing Unit has a number of safety markings The Part Washing Unit TWG 1 must only be used for tho- that must be observed and followed. rough cleaning with cleaning water and subsequent blo- wing off with compressed air from components in hard- The safety labels must not be removed. -
Page 7: Technical Data
The delivery packaging is made of cardboard, so please dispose carefully by having it chopped up and given to Fig. 3: Dimensions Part Washing Unit TWG 1 the recycling collection. The film is made of polyethylene (PE) and the cushioned Transport, Packaging, Storage parts of polystyrene (PS). -
Page 8: Description Of Device
Item number: 6231002 - Gloves Step 7: Tighten all screws and nuts. Item number: 6231003 - Universal cleaning agent UR-Spezial 10l alkaline with pH value of 12 Item number: 7321910 TWG 1 | Version 1.02... -
Page 9: Electrical Connection
(Fig. 6). Step 2: Ensure a good grounding of the parts washing device. Step 3: Connect the power cord to the mains. Air supply Fig. 6: Air supply Part Washing Unit TWG 1 TWG 1 | Version 1.02... - Page 10 (Fig. 7) ON / OFF Switch Fig. 7: Switch on the Part Washing Unit TWG 1 Fig. 9: Filter screen Part Washing Unit Step 4: Place the component to be cleaned in the parts washer and close the door. Use the washing gun NOTE! (Fig.
-
Page 11: Care Maintenance And Repair
3. Intake pipe is blocked 3. Clean the intake pipe Interior lighting in the parts washing Illuminant defective Replace bulbs device does not work Fan in the parts washing machine Fan is defective Replace fan does not work TWG 1 | Version 1.02... -
Page 12: Disposal, Recycling Of Used Devices
If necessary, ask for the product-specific data sheets. Example The tank for the Part Washing Unit TWG 1 must be or- 11 Spare parts dered. The tank has the number 1 in the spare parts dra- wing 1. -
Page 13: Spare Parts Drawing
In case of service, the following drawing shall help to identify the necessary spare parts. If necessary, send a copy of the drawing with the marked components to your authorised dealer. Fig. 10: Spare parts drawing TWG 1 TWG 1 | Version 1.02... -
Page 14: Electric Circuit Diagram
Electric circuit diagram 12 Electric circuit diagram Fig. 11: Electric circuit diagram TWG 1 13 Assembly drawing Suction tube Fig. 12: Assembly drawing TWG 1 | Version 1.02... -
Page 15: Ec Declaration Of Conformity
DIN EN 60335-1:2012-10 Safety of electrical appliances for household and similar purposes - Part 1: General requirements Kilian Stürmer, Stürmer Maschinen GmbH, Responsible for documentation: Dr.-Robert-Pfleger-Str. 26, D-96103 Hallstadt Hallstadt, 24.10.2017 ______________________ Kilian Stürmer CEO, Director TWG 1 | Version 1.02... -
Page 16: Anhang / Attachment
Anhang / Attachment 15 Anhang / Attachment Information zu den mitgelieferten Handschuhen für TWG 1 / Information on the sup- plied gloves for TWG 1 Schutzhandschuhe 1 Paar Artikelnummer Protection gloves 1 Pair Item number HS-TWG1 6231003 Hersteller: YONGKANG XIEHENG ZHEJIANG PROVINCE INDUSTRY & COMMERCE CO., LTD. - Page 17 Notes 16 Notes TWG 1 | Version 1.02...
