Wired Camera
Quick Start Guide
Wall Mounting Drilling Template
Mounting tools: Screwdriver, electric drill or awl. On hard surfaces, pre-drill ½ inch deep pilot holes
with a drill bit slightly smaller than the camera mounting screws before securing the camera to the sur-
face. When mounting a camera on soft surfaces like sheetrock, use an awl to punch holes in the mate-
rial slightly smaller than the plastic anchors included in the hardware mounting kit.
The illustrations are drawn to a one-to-one scale which means they provide the exact dimensions required to
mount the unit.

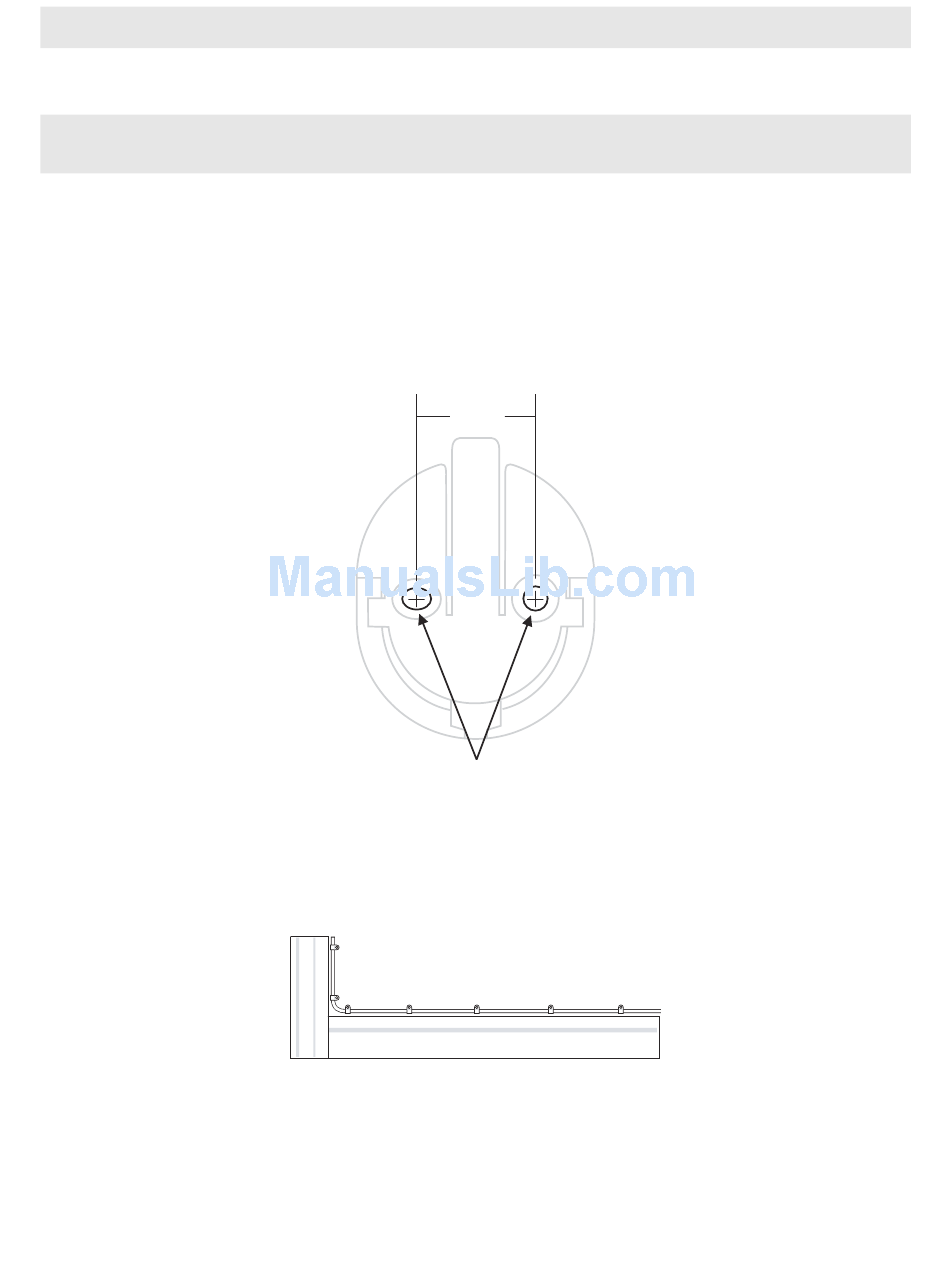

Wired Camera Wall Mount Template
0.94 in
Drill Holes In
These Positions
Cable Run Sample
Do not run cable where it can be walked upon, such as a walkway or doorway. Also, if running cable
in a wall or attic, or along baseboard, ensure that it will not interfere with other cable (cable TV, electri-
cal, etc).
Sample cable run shown
Page 5
