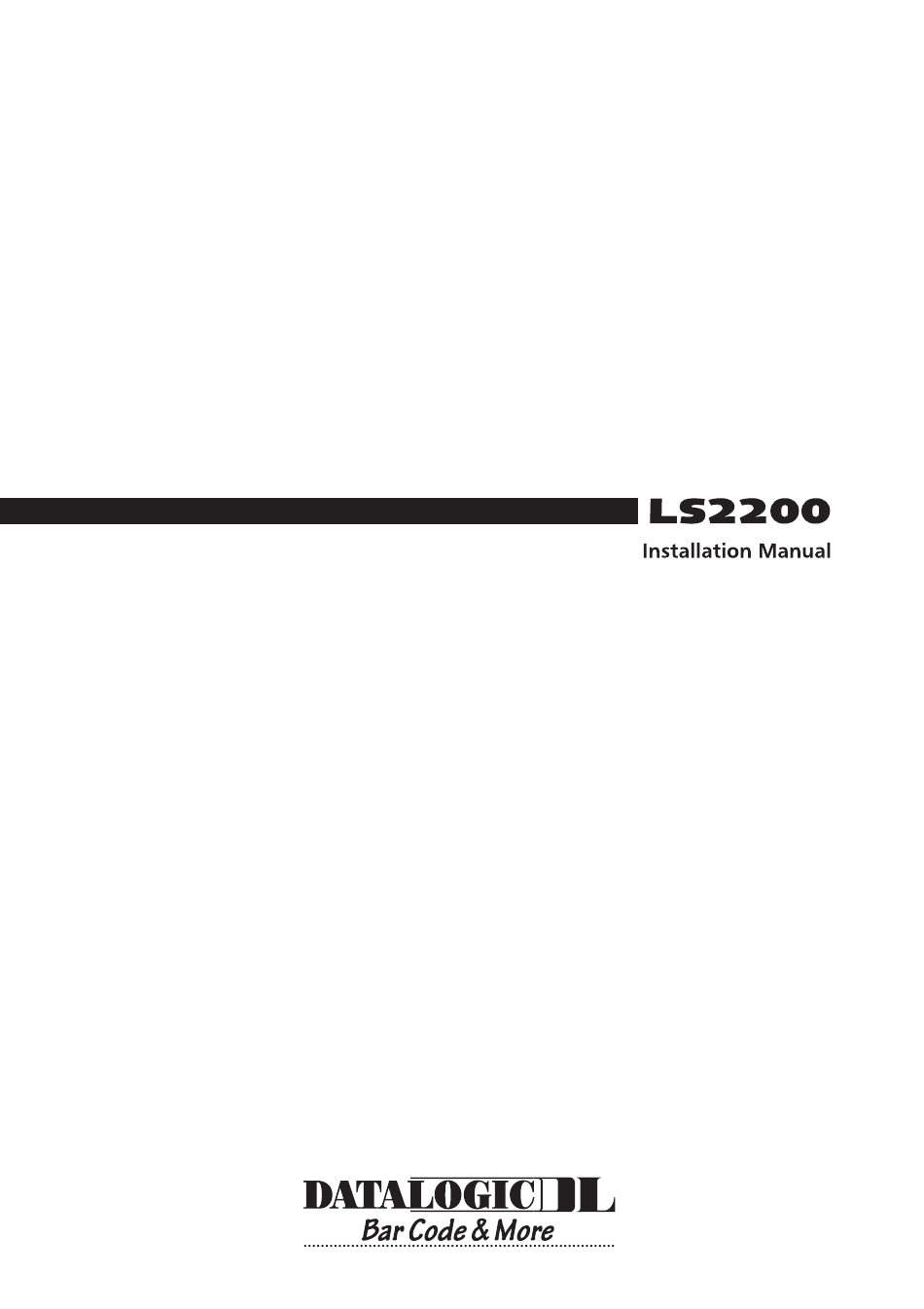

- Page 2 LS2200 INSTALLATION MANUAL...
- Page 3 Product names mentioned herein are for identification purposes only and may be trademarks and or registered trademarks of their respective companies. Datalogic reserves the right to make modifications and improvements without prior notification. © - 1999 Datalogic S.p.A. 821000411 (Rev. A)
-
Page 4: Table Of Contents
CONTENTS GUIDE TO INSTALLATION .............. iv General View ..................v SAFETY PRECAUTIONS ..............vi Laser Safety..................vi Standard Regulations ................ vi GENERAL FEATURES ..............1 Introduction ..................1 Description..................1 1.2.1 Indicators ....................2 Available Models.................3 Typical Applications ................4 INSTALLATION .................5 Package Contents ................5 Mechanical Installation ...............6 Electrical Connections ................7 2.3.1 Power Supply..................7... -
Page 5: Guide To Installation
GUIDE TO INSTALLATION The following can be used as a checklist to verify all the necessary steps for complete installation of the LS2200 scanner. 1. Read all information in the section "Safety Precautions” at the beginning of this manual. 2. Correctly position and mount the scanner for barcode reading according to the information in par. -
Page 6: General View
LS2200 General View Barcode Image Input Window Laser ON LED Laser Beam Output Window High-Resolution LED Power ON LED Laser Warning and Device Class Label Good Read LED Mounting Holes Figure A... -
Page 7: Safety Precautions
SAFETY PRECAUTIONS LASER SAFETY The following information is provided to comply with the rules imposed by international authorities and refers to the correct use of the LS2200 barcode reader. Standard Regulations This barcode reader utilizes a low-power laser diode. Although staring directly at the laser beam momentarily causes no known biological damage, avoid staring at the beam as one would with any very strong light source, such as the sun. - Page 8 Warning labels indicating exposure to laser light and the device classification are applied onto the body of the reader (Figure A, Warning and device class labels Turn the power off when opening the reader to avoid exposure to hazardous visible laser light. The laser diode used in this device is classified as a class 3B laser product according to IEC 825-1 regulations and as a Class IIIb laser product according to CDRH regulations.
- Page 9 This page is intentionally left blank. viii...
-
Page 10: General Features
It can be connected to all Datalogic Industrial Decoders. The LS2200 ultra compact dimensions and light weight, based on Datalogic's experience in miniaturised laser components, make the reader’s integration into automated equipment extremely easy. -
Page 11: Indicators
LS2200 DATALOGIC • user configurable performance controls - scanning speed (Half/Full) - code density optimization (High/Standard) - scanner power (On/Off) The laser beam output window is on the side of the scanner (Figure A, A security system allows the laser to activate only once the motor has reached the correct rotational speed;... -
Page 12: Available Models
DATALOGIC LS2200 1.3 AVAILABLE MODELS The LS2200 is available in the following versions: LS2200 – X X X X Linear/Raster: Optical Resolution: 0 = Linear 1 = Standard resolution 1 = Raster 2 = High resolution The following tables display each version’s reading performance. -
Page 13: Typical Applications
The LS2200 can be connected to all Datalogic Industrial Decoders. Host Datalogic... -
Page 14: Installation
DATALOGIC LS2200 2 INSTALLATION 2.1 PACKAGE CONTENTS Verify that the LS2200 reader and all the parts supplied with the equipment are present and intact when opening the packaging; the list of parts includes: 1. LS2200 reader with cable 2. Installation Manual 3. -
Page 15: Mechanical Installation
LS2200 DATALOGIC 2.2 MECHANICAL INSTALLATION The LS2200 can be installed to operate in any position. There are three screw holes (M2.5 x 5) on the body of the reader for mounting. The diagram below gives all the information required for installation;... -
Page 16: Electrical Connections
DATALOGIC LS2200 2.3 ELECTRICAL CONNECTIONS The LS2200 is supplied with a 15-pin D-sub connector, through which connection between scanner and decoder takes place and the operating voltage is supplied. Figure 2.3 - 15-pin male connector type D 15-pin Connector Pinout... -
Page 17: Positioning
LS2200 DATALOGIC 2.4 POSITIONING The LS2200 scanner is able to decode moving barcode labels at a variety of angles, however significant angular distortion may degrade reading performance. When mounting the LS2200 take into consideration these three ideal label position angles: Pitch 0°, Skew 15° to 30° and Tilt 0°. - Page 18 DATALOGIC LS2200 The Tilt angle is represented by the value T in Figure 2.6. Position the reader in order to minimize the Tilt angle. Figure 2.6 - Tilt angle Installation - 9...
-
Page 19: Reading Features
LS2200 DATALOGIC 3 READING FEATURES 3.1 PERFORMANCE CONTROLS LS2200 is fully controlled by its decoder, which is completely configurable from a host computer through the WINHOST™ utility program provided on diskette with the device, or through ESC sequences via the serial interface. - Page 20 DATALOGIC LS2200 CODE RESOLUTION This command optimizes the LS2200 performance according to the specific barcode density. The possible values are: • Standard Optimized reading of low/medium density barcodes • High Optimized reading of high density barcodes SCANNING SPEED (*) This command allows to select the scanner's scan speed: •...
-
Page 21: Step-Ladder Mode
LS2200 DATALOGIC 3.2 STEP-LADDER MODE The number of scans performed on the code by the LS2200 and therefore the decoding capability is influenced by the following parameters: • number of scans per second • label dimensions • scan direction with respect to code motion •... -
Page 22: Picket-Fence Mode
DATALOGIC LS2200 3.3 PICKET-FENCE MODE Code motion direction at LS speed Laser beam Figure 3.2 - "Picket-Fence" scanning mode If scanning is parallel to the code motion, (Figure 3.2 – Picket-Fence mode), the number of effective scans is given by:... -
Page 23: Performance
The max. capture of the Raster version is 15 mm ( 0.6 inches ) at 230 mm ( 9.1 inches ) distance. If standard devices do not satisfy specific requirements, contact your nearest Datalogic distributor, supplying code samples, to obtain complete information on the reading possibilities. 14 - Reading Features... -
Page 24: Reading Diagrams
DATALOGIC LS2200 3.5 READING DIAGRAMS LS2200-1XXX – Standard Resolution 240 mm - 20 - 40 - 60 - 80 0.20 mm 0.50 mm 0.15 mm 0.30 mm 0.60 mm (6 mils) (8 mils) (20 mils) (12 mils) (24 mils) - 100 NOTE 0,0 is the center of the laser beam output window. - Page 25 LS2200 DATALOGIC LS2200-2XXX – High Resolution 120 mm - 10 - 20 - 30 - 40 0.20 mm 0.10 mm 0.15 mm 0.30 mm - 50 (4 mils) (6 mils) (8 mils) (12 mils) NOTE 0,0 is the center of the laser beam output window.
-
Page 26: Maintenance
DATALOGIC LS2200 4 MAINTENANCE 4.1 CLEANING Clean the windows periodically for continued correct operation of the reader. Dust, dirt, etc. on the windows may alter the reading performance. Repeat the operation frequently in particularly dirty environments. Use soft material and alcohol to clean the windows and avoid any abrasive substances. -
Page 27: Technical Features
LS2200 DATALOGIC 5 TECHNICAL FEATURES LS2200-1XXX LS2200-2XXX Standard resolution High resolution ELECTRICAL FEATURES Input voltage 10 to 30 V Power consumption max. OPTICAL FEATURES Light source semiconductor laser diode Wave length 630 to 680 nm (Note 1) Safety class Class 2 - IEC 825 Class II - CDRH...
