Datalogic DS1100 Quick Manual

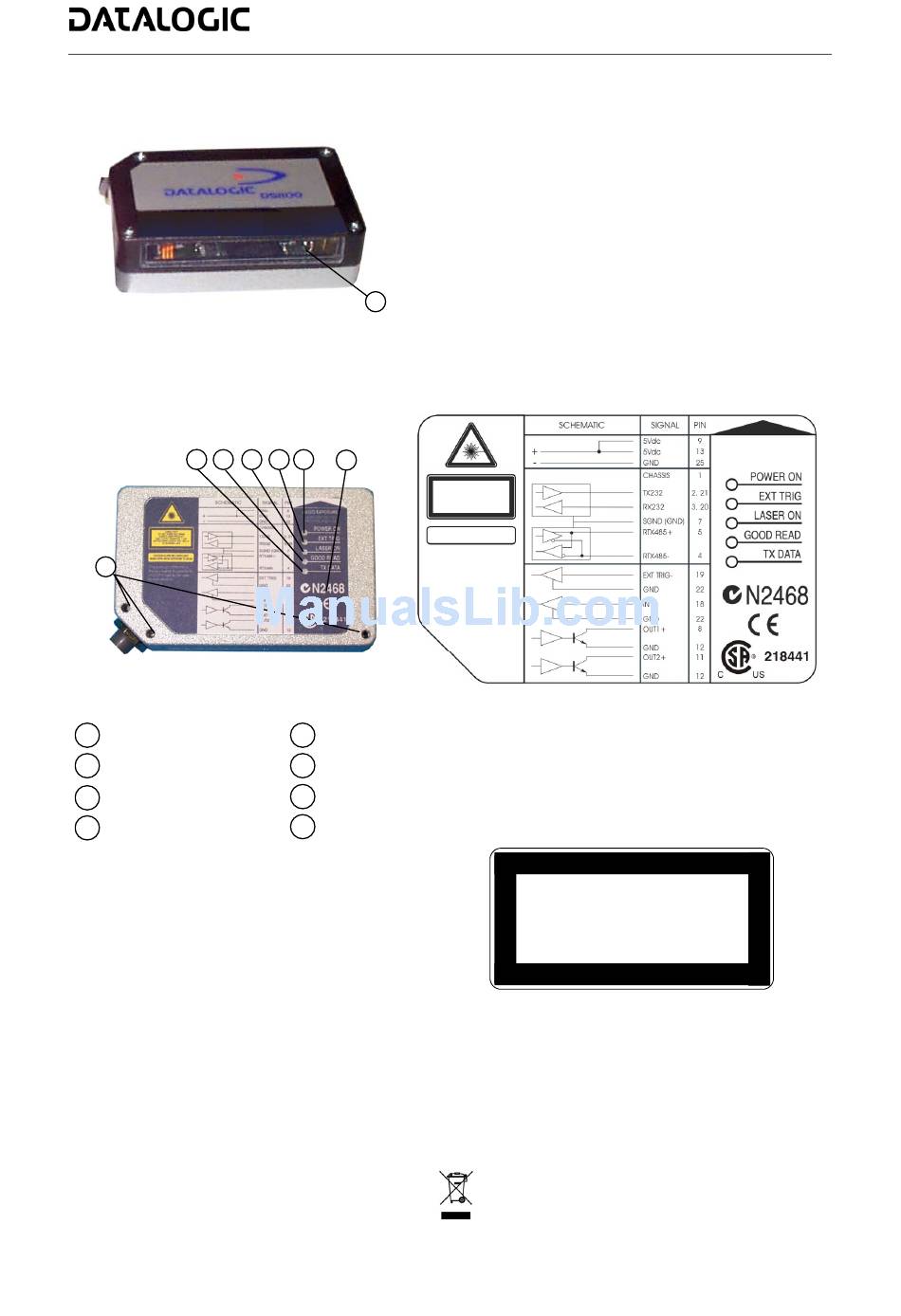

General View:
7 6
8
Figure A
Laser Beam Output Window
1
Laser Warning and
2
Device Class Label
Power On LED
3
Ext Trig LED
4
For further details on product installation,
see the complete Installation Manual.
DS1100 can be configured through the
WinHost Windows-based software program
available on the installation CD-ROM.
For configuration it is necessary to create a
cable connecting the scanner to the PC as
indicated in the "How To Build A Simple
Interface Test Cable" section of this guide.

Power Supply:

- This product is intended to be installed by
Qualified Personnel only.
- This accessory device is intended to be
supplied by a UL Listed or CSA Certified
Power Unit with «Class 2» or LPS power
source which supplies power directly to the
scanner via the 25-pin connector.
DS1100

Laser Safety:

The scanner is classified as a Class 2 laser product according
to EN 60825-1 regulations and as a Class II laser product
according to CDRH regulations.
For installation, use and maintenance it is not necessary to
open the scanner.
There is a safety device which allows the laser to be switched
on only if the motor is rotating above the threshold for its correct
1
scanning speed.
The motor and the laser beam can be switched off through a
software command (see also the WinHost Help On Line).
5 4 3
2
Laser On LED
5
Good Read LED
6
TX Data LED
7
Mounting Holes
8
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
MAX. OUTPUT RADIATION 1mW
EMITTED WAVE LENGTH 630-680 nm
TO EN 60825-1:2001
CAUTION-CLASS 3B LASER LIGHT WHEN
OPEN AVOID EXPOSURE TO BEAM
This product conforms to the
applicable requirements of
21CFR1040 at the date of
manufacture.
Warning and Device Class Label
The laser diode used in this device is classified as a class
3B laser product according to EN 60825-1 regulations
and as a Class IIIb laser product according to CDRH
regulations. As it is not possible to apply a classification
label on the laser diode used in this device, the following
label is reproduced below.
LASER LIGHT
AVOID EXPOSURE TO BEAM
CLASS 3B LASER PRODUCT
MAX. OUTPUT RADIATION 7 mW
EMITTED WAVE LENGTH 630~680 nm
TO EN 60825-1 (2001)
Laser Diode Class Label
Any violation of the optic parts in particular can cause
radiation up to the maximum level of the laser diode
(7 mW at 630 to 680 nm).

WEEE Compliance:

DS1100 QUICK GUIDE
AVOID EXPOSURE
LASER LIGHT EMITTED
FROM THIS APERTURE
