Ercol Siena 4532 Manual

Medium dining table

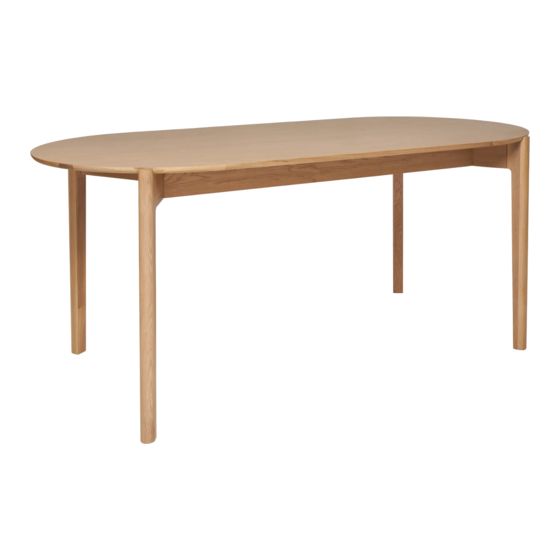

4532 Siena Medium Dining Table

Thank you for purchasing this Siena Dining table. Please read the instructions carefully before use to ensure

safe and satisfactory operation of this product.

This item is HEAVY

Pre- assembly preparation

Please ensure instructions are read in full before attempting to assemble this product

Please check the pack contents before attempting to assemble this product. A full checklist of components is

given in this leaflet. If any components are missing, please contact the retailer from whom you purchased this

product.

This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE

WHEN LIFTING to avoid personal injury and (or) damage to the product.

This product takes approximately 20 MINUTES to assemble with 2 PEOPLE.

The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG

CHILDREN.

Ref: 00237/4532

Table of Contents

Need help?

Do you have a question about the Siena 4532 and is the answer not in the manual?

Page 1 4532 Siena Medium Dining Table Thank you for purchasing this Siena Dining table. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. This item is HEAVY Pre- assembly preparation Please ensure instructions are read in full before attempting to assemble this product Please check the pack contents before attempting to assemble this product.
Page 2 Fittings and parts checklist Table top Allen key x 1 Left legs Locking washer x 12 Right legs Flat washer x 12 45mm Bolt x 12...
Page 3 Step by step assembly instructions 1. Assemble the left legs (B) and right legs (C) as shown below. Two people may be required to carefully turn the table top face down onto a smooth soft surface such as carpet. Put one set of legs to the table top and matching the holes, secure the bolts and washers ( locking washer first) into the legs through the holes on the end rail of the table top.
Page 4 Do not to turn the table over on two legs as this may cause damage. Please take care as this table is very heavy. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX www.ercol.com...
