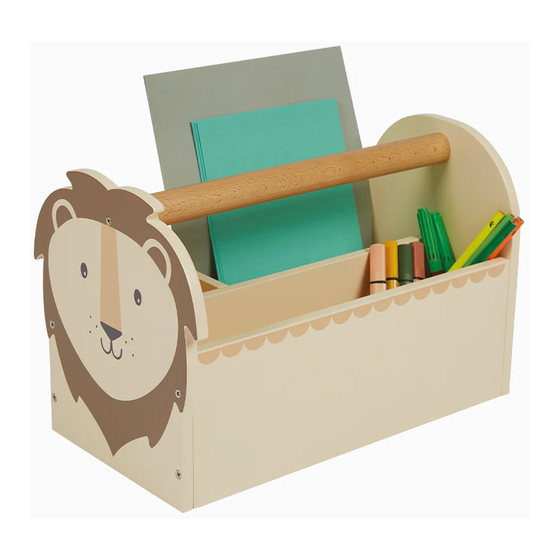

Carry Caddy, Lion
L5332
Assembly Difficulty
one-person job
easy
- medium - hard
Thank you for shopping with GLTC, we hope you enjoy
having this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.
A few important pointers before you start:
•
Please read the instructions right through before you start, and
check that all the components have been included in the pack;
we find separating all the hardware into piles makes it easier to
be sure that everything is present and correct.
•
Make sure you have the right tools. Allen keys are provided
if required, but screw drivers and other tools are not. You'll
find details of the tools you need at the beginning of the
instructions.
•
Do not throw away any packing materials until assembly is
complete, just in case you accidentally discard smaller parts or
hardware.
Could we do better?
If there is anything you think could be improved in these instructions or in the
assembly of this product we'd be grateful if you could let us know; we'll pass
any helpful hints and tips on to other customers via our website and update
the instructions.
All you need to do is drop us a line at instructions@gltc.co.uk
Thank you
V1
04/05/2022
1
Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
Copyright© 2022 G.L.T.C. Ltd. All rights reserved.
Advertisement
Table of Contents
Related Manuals for Great Little Trading Carry Caddy Lion L5332
Summary of Contents for Great Little Trading Carry Caddy Lion L5332
- Page 1 All you need to do is drop us a line at instructions@gltc.co.uk Thank you Assembly Difficulty 04/05/2022 one-person job easy - medium - hard Copyright© 2022 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
- Page 2 SAFETY WARNINGS! WARNUNGEN! • Adult assembly required. • Zusammenbau durch einen Erwachsenen erforderlich. • Nicht für Kinder unter 3 Jahren geeignet, da sich Kleinteile lösen können und eine Erstickungsgefahr darstellen. • Not suitable for children under 3 years due to small parts which may become detached and present a choking hazard. •...
- Page 3 Hardware for Step 1: Component Check List Wooden Dowels x1 Front Panel x1 Middle Divider Panel x1 Short Divider Panel x1 Back Divider Panel x1 Handle x1 Left Side Panel x1 Base Panel x1 Right Side Panel Wooden Dowels 10x Screws You will need (not supplied) STEP 1:...
- Page 4 STEP 2: STEP 3: Hardware for Step 2: Attach left side panel (F) to the assembly created in Carefully slide base panel (G) along the grooves located on the internal faces step 1, front panel (A) and handle (E) using 2x wooden of panels A, D and F.
- Page 5 STEP 4: Hardware for Step 4: Your carry caddy is now ready to use. Attach panel (H) to the assembly created in step 3, using 2x wooden dowels ( #1) and 5x screws (#2). Screws Attach pole E to panel H using 1x screw (#2). Hold the pole in place to stop it spinning while being secured.
