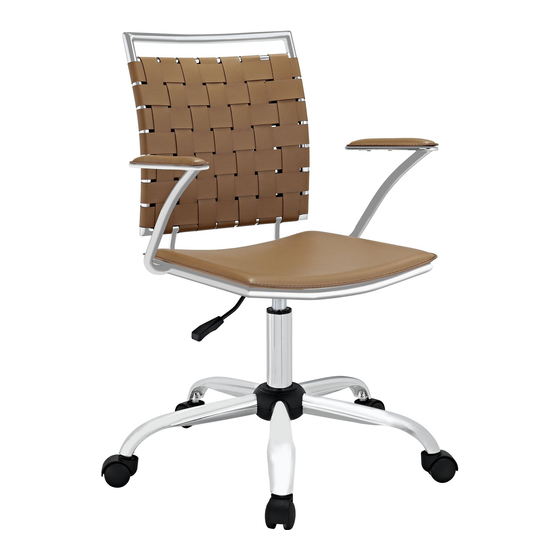

EEI-1109 & 3869 OFFICE CHAIR
Thank you for purchasing the MODWAY OFFICE CHAIR!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the office chair, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all pieces out of reach of children.
Components:
1. Base
x1
5. Seater Frame
Customer Service 609-256-9000︱www.modway.com
2. Gas Lift
x1
x1
6. Backrest
Hardware:
A.
B.
C.
D.
E.
F.
G.
3. Castor
x5
x1
7. Seater
Bolt M6x25mm
Bolt M6x20mm
Flat Washer
Allen Wrench
Nut M12
Spring Washer M12 x2
Nut Driver
4. Fixing Plate
x1
x1
Page 1 of 4
x2
x2
x4
x1
x2
x1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for modway EEI-1109
Summary of Contents for modway EEI-1109
- Page 1 EEI-1109 & 3869 OFFICE CHAIR Thank you for purchasing the MODWAY OFFICE CHAIR! Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
- Page 2 EEI-1109 & 3869 OFFICE CHAIR STEP 1: the Backrest (6) to the Seater frame (5) by using 2 pieces of Nuts (E) and 2 pieces of 1. Attach Spring Washers (F) as shown. 2. Use Nut Driver (G) to tighten all Nuts (E) clockwise as shown.
- Page 3 EEI-1109 & 3869 OFFICE CHAIR STEP 3: the Fixing Plate (4) to the Seater frame (5) and the Seater (7) by using 2 pieces of Bolts(A) 1. Attach and 2 pieces of Flat Washers (C) for front as shown. the Fixing Plate (4) to the Seater frame (5) and the Seater (7) by using 2 pieces of Bolts(B) 2.
- Page 4 EEI-1109 & 3869 OFFICE CHAIR STEP 5: Fixing Plate Gas Lift (4) into the (2) as shown. Insert Attention: When you use the handle to adjust the height to be lower, please move away your feet from the base at the same time.
