EEI -1182

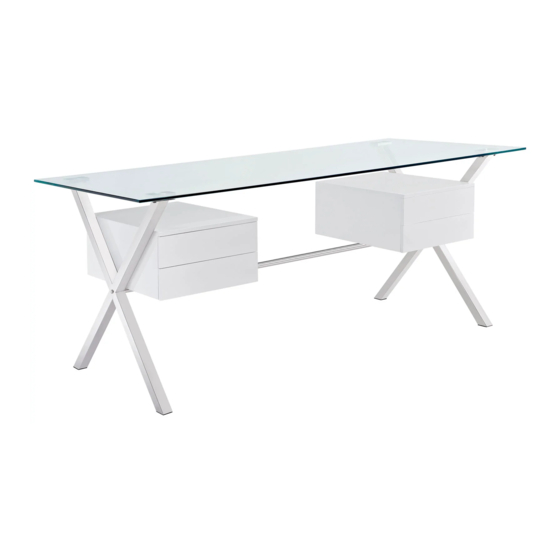

ABEYANCE OFFICE DESK
Thank you for purchasing the MODWAY ABEYANCE OFFICE DESK！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the desk, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Component:
1
3
Customer Service 908-368-1025︱www.modwayfurniture.com
Glass Top
x1
Leg
x2
Hardware:
A
B
C
D
E
F
G
H
2
Drawer Box
4
Central Rail
Bolt M8x60mm
x2
Bolt M8x40mm
x4
Bolt M8x30mm
x4
Bolt M8x10mm
x16
Washer
x2
Flat Washer
x24
Plastic Cap
x2
Allen Wrench
x1
x2
x1
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for modway Abeyance EEI -1182
Summary of Contents for modway Abeyance EEI -1182
- Page 1 EEI -1182 ABEYANCE OFFICE DESK Thank you for purchasing the MODWAY ABEYANCE OFFICE DESK！ Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions.
- Page 2 EEI -1182 ABEYANCE OFFICE DESK STEP 1: Place one of the Legs (3) to the Central Rail (4) as shown. Please make sure that the concave surface of each Washer (E) faces to the head of each Bolt (A) when connecting. Attach them by using Bolts (A) and Washers (E) through the pre-drilled holes on the Central Rail (4) and the same Leg (3) .
- Page 3 EEI -1182 ABEYANCE OFFICE DESK STEP 3: In order to properly attach the Drawer Box(2) to the side of the Legs (3), take out the extra space before leg. It will be neces- sary to remove the two drawers from the Drawer Box (2). Please follow the following steps for drawer removal. A, Open the drawer fully.
- Page 4 EEI -1182 ABEYANCE OFFICE DESK STEP 5: In order to return the two drawers into each Drawer Box (2). A, Align drawer with drawer slides. B, Move silver metal carrier fully forward in slide. C, Gently push drawer into the drawer box. Silver Metal Carrier Align drawer with drawer slides.
