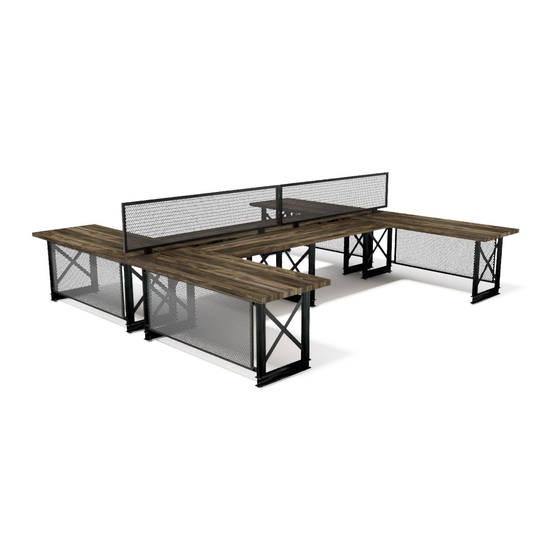

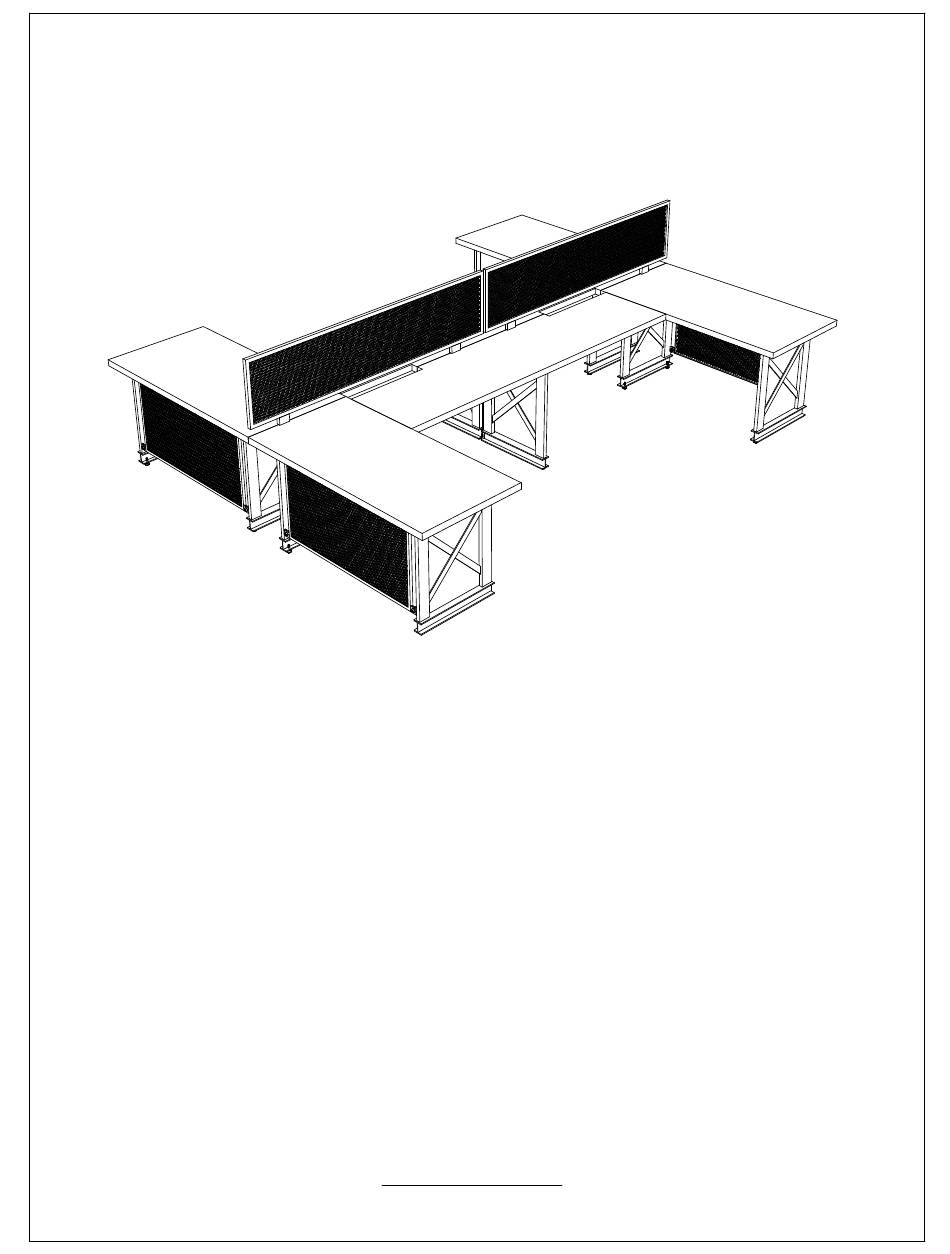

CARRUCA DOGBONE
WORKSTATION
Assembly Instructions
Thank you for your purchase!
Iron Age Office furniture is uniquely and individually
fabricated. For this reason, your furniture is pre-assembled
and labeled before shipping. Labels are marked on the
underside of the furniture. Most furniture is then
deconstructed prior to shipping. Pieces that uniquely
correspond can typically be found on the same pallet.
Assembly is best completed by keeping the pieces that
correspond together. Clear your work area of anything that
could scratch furniture surfaces. If possible, cover your
work area with a clean, soft blanket. Carefully flip
any wooden tops over and inspect the bottom sides for markings.
Match legs, flat brackets, etc.
to the appropriate labels.
If you need further assistance of any kind,
please contact:
Iron Age Office Operations Manager
Henry Dover
678-725-1473 (c)
hd@ironageoffice.com
Advertisement
Table of Contents
Related Manuals for Iron Age Office CARRUCA DOGBONE WORKSTATION
Summary of Contents for Iron Age Office CARRUCA DOGBONE WORKSTATION
- Page 1 WORKSTATION Assembly Instructions Thank you for your purchase! Iron Age Office furniture is uniquely and individually fabricated. For this reason, your furniture is pre-assembled and labeled before shipping. Labels are marked on the underside of the furniture. Most furniture is then deconstructed prior to shipping.
- Page 2 HARDWARE Screws are shown actual size. You may receive extra hardware with your unit. Tools Required #3 Square Drive 14-10 LAG BOLT QTY: 82 SCREEN BOLT 3/8 Hex Drive QTY: 16 SCREEN NUT 15/16 Crescent Wrench QTY: 16 LEVELING FOOT 9/16 Crescent Wrench QTY: 20 TROUGH SCREWS...
- Page 3 PARTS LEFT TABBED LEG W/ RIGHT TABBED LEG MAIN TOP SHEET METAL LEFT TABBED LEG W/ SECOND TOP RIGHT TABBED LEG SHEET METAL LEFT TABBED LEG THIRD TOP SPLICE PLATE RIGHT TABBED LEG W/ SPLICE PLATE FOURTH TOP SHEET METAL SPLICE PLATE RETURN TOP SHARED LEG...
- Page 4 ASSEMBLY STEP 1 Place wood tops face down on a clean surface. STEP 2 Align legs using markings on the underside of the wood tops. Tabbed legs should be placed so that tabs are facing each other. Screw in all legs with (5) 14-10 lag bolts in each leg.
- Page 5 ASSEMBLY STEP 4 Align splice plates to main tops using markings on the tops. Screw in (3) lag bolts into each splice plate with a #3 square drive to secure splice plate to appropriate desks. STEP 5 Attach screens to tabbed legs with (4) screen bolts and (4) screen nuts in each screen.
- Page 6 ASSEMBLY STEP 7 Flip and align R2 between M2 and M4. Screw in (3) lag bolts into each splice plate with a #3 square drive to secure splice plate to return desk. STEP 8 Align divider screen to M2 desk and R2 return. Secure divider screen to underside of M4 desk with (3) lag bolts on each side with a #3 square drive.
- Page 7 ASSEMBLY STEP 10 Align divider screen to M4 desk and R2 return. Secure with lag bolts on the underside of desk. STEP 11 Flip M3 desk to an upright position and align to M4 desk. Secure M3 desk to M4 desk with (3) lag bolts into divider screen on the underside of the M3 desk with a #3 square drive.
- Page 8 STEP 14 Enjoy your desk! CARE INSTRUCTIONS To care for either wooden or metal surfaces of Iron Age Office products, gently wipe with a soft cloth dampened with water and a mild dishwashing liquid. Once satisfied, dry with a soft cloth.
