CARRUCA RECEPTION

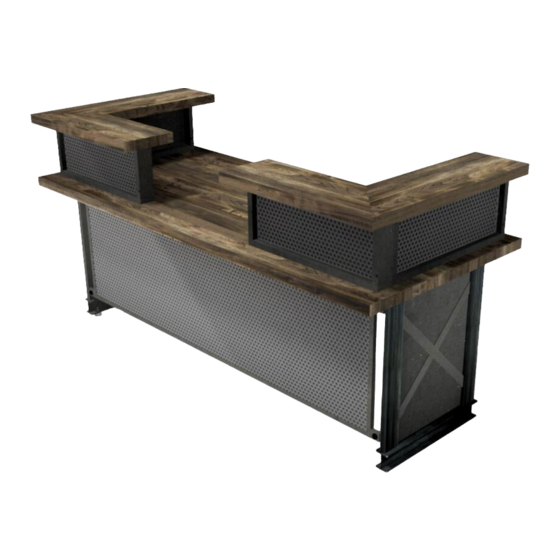

DESK SINGLE-D
Assembly Instructions
Thank you for your purchase!
Iron Age Office furniture is uniquely and individually
fabricated. For this reason, your furniture is pre-assembled
and labeled before shipping. Labels are marked on the
underside of the furniture. The furniture is then
deconstructed prior to shipping. Pieces that uniquely
correspond can typically be found on the same pallet.
Assembly is best completed by keeping the pieces that
correspond together. Clear your work area of anything that
could scratch furniture surfaces. If possible, cover your
work area with a clean, soft blanket. Carefully flip
any wooden tops over and inspect the bottom sides
for markings. Match legs, flat brackets, etc.
to the appropriate labels.
If you need further assistance of any kind,
please contact:
Iron Age Office Operations Manager
678-725-1473 (c)
hd@ironageoffice.com
Henry Dover
Advertisement
Table of Contents
Related Manuals for Iron Age Office CARRUCA RECEPTION DESK SINGLE-D
Summary of Contents for Iron Age Office CARRUCA RECEPTION DESK SINGLE-D
- Page 1 DESK SINGLE-D Assembly Instructions Thank you for your purchase! Iron Age Office furniture is uniquely and individually fabricated. For this reason, your furniture is pre-assembled and labeled before shipping. Labels are marked on the underside of the furniture. The furniture is then deconstructed prior to shipping.
- Page 2 HARDWARE Screws are shown actual size. You may receive extra hardware with your unit. Tools Required 14-10 LAG BOLT #3 Square Drive QTY: 26 SCREEN BOLT 3/8 Hex Drive QTY: 4 15/16 Crescent Wrench SCREEN NUT QTY: 4 LEVELING FOOT 9/16 Crescent Wrench QTY: 4...
- Page 3 PARTS MAIN TOP LEFT TABBED LEG TRANSACTION SIDE TOP RIGHT TABBED LEG TRANSACTION TOP MAIN SCREEN TRANSACTION TOP TRANSACTION SCREEN TRANSACTION SIDE TOP TRANSACTION SCREEN...
- Page 4 ASSEMBLY STEP 1 Place wood top face down on a clean surface. STEP 2 Align legs to wood top using markings on the underside of main top. Tabbed legs should be placed so that tabs are facing each other. Screw in all legs with (5) 14-10 lag bolts per leg.
- Page 5 ASSEMBLY STEP 4 Screw in (2) leveling foot in each leg. Screw in leveling foot into each leg with 9/16 crescent wrench. STEP 5 Flip desk to an upright position. STEP 6 Align transaction screens to main top. Secure transaction screen to main top with 14-10 lag bolts using a #3 square drive.
- Page 6 STEP 8 Enjoy your desk! CARE INSTRUCTIONS To care for either wooden or metal surfaces of Iron Age Office products, gently wipe with a soft cloth dampened with water and a mild dishwashing liquid. Once satisfied, dry with a soft cloth.
