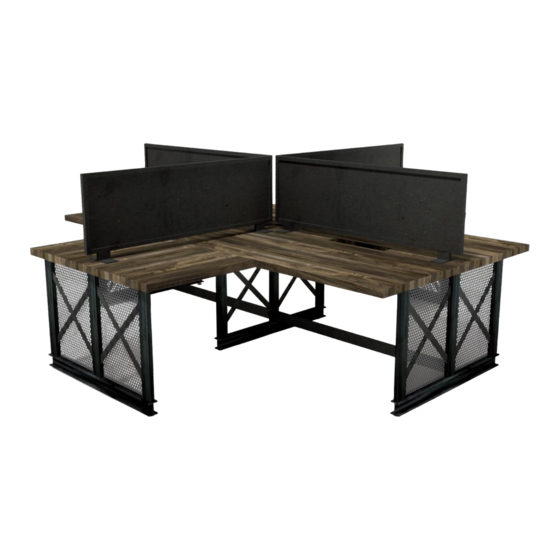

CARRUCA STACK
WORKSTATION
Assembly Instructions
Thank you for your purchase!
Iron Age Office furniture is uniquely and individually
fabricated. For this reason, your furniture is pre-assembled
and labeled before shipping. Labels are marked on the
underside of the furniture. Most furniture is then
deconstructed prior to shipping. Pieces that uniquely
correspond can typically be found on the same pallet.
Assembly is best completed by keeping the pieces that
correspond together. Clear your work area of anything that
could scratch furniture surfaces. If possible, cover your
work area with a clean, soft blanket. Carefully flip
any wooden tops over and inspect the bottom sides for markings.
Match legs, flat brackets, etc.
to the appropriate labels.
If you need further assistance of any kind,
please contact:
Iron Age Office Operations Manager
Henry Dover
678-725-1473 (c)
hd@ironageoffice.com
Advertisement
Related Manuals for Iron Age Office CARRUCA STACK
Summary of Contents for Iron Age Office CARRUCA STACK
- Page 1 WORKSTATION Assembly Instructions Thank you for your purchase! Iron Age Office furniture is uniquely and individually fabricated. For this reason, your furniture is pre-assembled and labeled before shipping. Labels are marked on the underside of the furniture. Most furniture is then deconstructed prior to shipping.
-
Page 2: Tools Required
HARDWARE Tools Required Screws are shown actual size. You may receive extra hardware with your unit. #3 Square Drive 14-10 LAG BOLT QTY: 116 3/8 Hex Drive SCREEN BOLT QTY: 4 SCREEN NUT 15/16 Crescent Wrench QTY: 4 9/16 Crescent Wrench LEVELING FOOT QTY: 10 TROUGH SCREW... - Page 3 PARTS RIGHT TABBED LEG SHARED LEG LEFT TABBED LEG RIGHT TABBED LEG LEFT TABBED LEG MAIN TOP SECOND TOP THIRD TOP FOURTH TOP RETURN TOP SECOND RETURN TOP THIRD RETURN TOP FOURTH RETURN TOP TROUGH SUPPORT BAR DIVIDER SCREEN SPLICE PLATE SPLICE PLATE...
- Page 4 ASSEMBLY STEP 2 Align legs using markings on STEP 3 the underside of the wood tops. Secure legs to appropriate tops STEP 1 Tabbed legs should be placed so that using 14-10 lag bolts with a #3 square drive. Place wood tops face down on a clean surface. tabs are facing each other.
- Page 5 ASSEMBLY STEP 7 Flip M4 top and align to M3 desk. Secure desks together with lag bolts into the shared legs on the underside of STEP 6 M4 top. Flip M3 desk to upright position. Secure but do not tighten bottom support bar with Fasten screen nut to screen bolt on backside of screen using a (2) screen bolts and (2) screen nuts.
- Page 6 ASSEMBLY STEP 11 STEP 10 Flip R3 return to upright position. Flip and align M2 top to M1 desk. Align R3 to M3 desk. Secure desks together with lag bolts into the Secure desks together with lag bolts into the shared legs splice plate on the underside of R3.
- Page 7 ASSEMBLY STEP 16 Align troughs to underside of joined desks using markings. STEP 15 Flip R2 return to upright position. Align R2 to M2 desk and R4. Secure desks together with lag bolts into the shared legs and splice plate on the underside of R2. Screw in (6) trough screws into each trough using #2 phillips drive.
-
Page 8: Care Instructions
ASSEMBLY STEP 19 Enjoy your desk! CARE INSTRUCTIONS To care for either wooden or metal surfaces of Iron Age Office products, gently wipe with a soft cloth dampened with water and a mild dishwashing liquid. Once satisfied, dry with a soft cloth.
