CARRUCA 4 PERSON
WORKSTATION
Assembly Instructions
any wooden tops over and inspect the bottom sides for markings.
Thank you for your purchase!
Iron Age Office furniture is uniquely and individually
fabricated. For this reason, your furniture is pre-assembled
and labeled before shipping. Labels are marked on the
underside of the furniture. Most furniture is then
deconstructed prior to shipping. Pieces that uniquely
correspond can typically be found on the same pallet.
Assembly is best completed by keeping the pieces that
correspond together. Clear your work area of anything that
could scratch furniture surfaces. If possible, cover your
work area with a clean, soft blanket. Carefully flip
Match legs, flat brackets, etc.
to the appropriate labels.
If you need further assistance of any kind,
please contact:
Iron Age Office Operations Manager
678-725-1473 (c)
hd@ironageoffice.com
Henry Dover
Advertisement
Table of Contents
Related Manuals for Iron Age Office CARRUCA
Summary of Contents for Iron Age Office CARRUCA

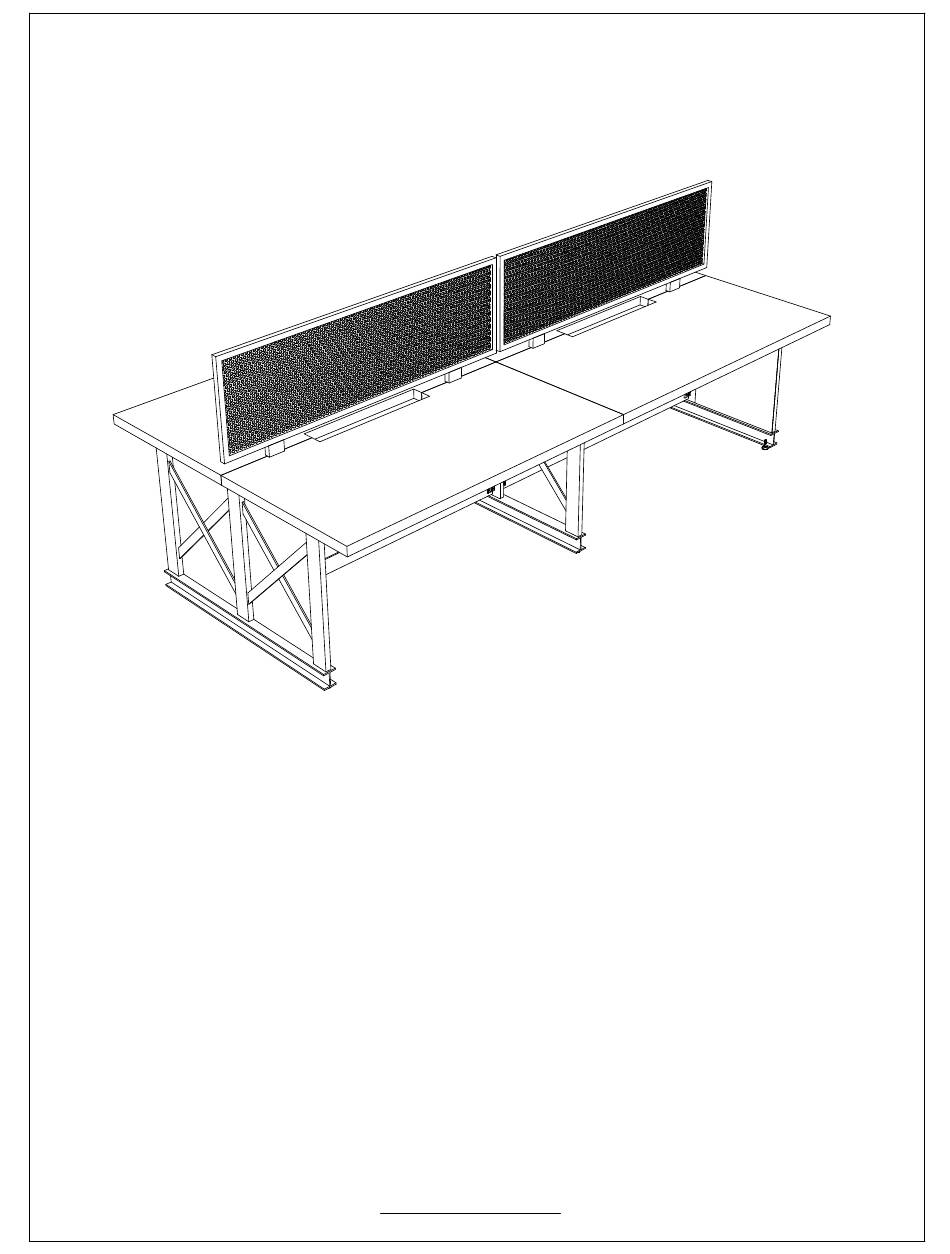

- Page 1 WORKSTATION Assembly Instructions Thank you for your purchase! Iron Age Office furniture is uniquely and individually fabricated. For this reason, your furniture is pre-assembled and labeled before shipping. Labels are marked on the underside of the furniture. Most furniture is then deconstructed prior to shipping.
- Page 2 HARDWARE Screws are shown actual size. You may receive extra hardware with your unit. Tools Required #3 Square Drive 14-10 LAG BOLT QTY: 68 SCREEN BOLT 3/8 Hex Drive QTY: 4 SCREEN NUT 15/16 Crescent Wrench QTY: 4 LEVELING FOOT 9/16 Crescent Wrench QTY: 6 TROUGH SCREW...
- Page 3 PARTS MAIN TOP LEFT TABBED LEG SECOND TOP SHARED LEG RIGHT TABBED LEG THIRD TOP DIVIDER SCREEN FOURTH TOP TROUGH SUPPORT BAR...
- Page 4 ASSEMBLY STEP 1 Place M2 top face down on a clean surface. STEP 2 Align legs using markings on the underside of the M2 top. Tabbed legs should be placed so that tabs are facing each other. Screw in all legs with (6) 14-10 lag bolts in each leg.
- Page 5 ASSEMBLY STEP 4 Align support bar in between tabbed legs. Secure but do not tighten support bar with (2) screen bolts and (2) screen nuts. Fasten screen nut to screen bolt on backside of screen using a 15/16 crescent wrench. Insert screen bolts into the support bar through the tabbed legs using a 3/8 hex drive.
- Page 6 ASSEMBLY STEP 7 Align M1 top to M2 desk. Screw in (6) lag bolts into each leg and (4) lag bolts into each side of divider screen on the underside of M1 top. Screw in lag bolts into divider screen and shared legs on each side with #3 square drive.
- Page 7 ASSEMBLY STEP 10 Align M4 top to M2 desk. Screw in (3) lag bolts into shared leg and (6) lag bolts into leg 3. STEP 11 Align divider screen to M4 desk. Secure divider screen to underside of M4 desk with (4) lag bolts. STEP 12 Align M3 top to M4 desk.
- Page 8 STEP 12 Enjoy your desk! CARE INSTRUCTIONS To care for either wooden or metal surfaces of Iron Age Office products, gently wipe with a soft cloth dampened with water and a mild dishwashing liquid. Once satisfied, dry with a soft cloth.
