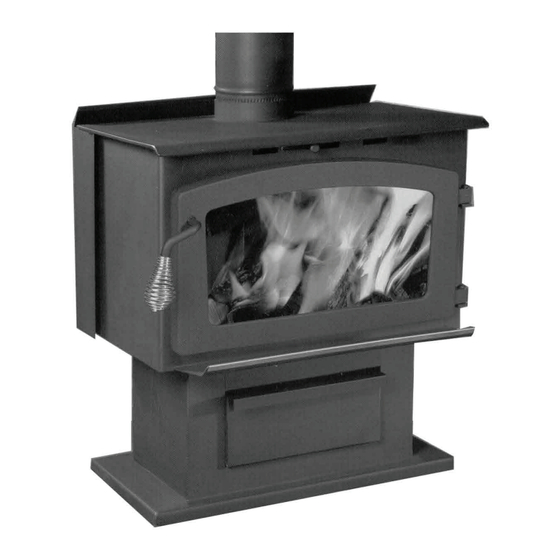

MOUNTAINEER WOODSTOVE
SAVE THESE INSTRUCTIONS
THIS MANUAL WILL HELP YOU TO OBTAIN EF-
FICIENT, DEPENDABLE SERVICE FROM THE
HEATER, AND ENABLE YOU TO ORDER REPAIR
PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR
FUTURE REFERENCE.
DO NOT USE THIS HEATER IN A
MOBILE HOME OR TRAILER!
Please read this entire manual
before you install and use your
new room heater. Failure to
follow instructions may result in
property damage, bodily injury,
or even death.
MODEL VG650ELG / VG651ELG
OWNER'S MANUAL
(SAVE THIS MANUAL FOR FUTURE REFERENCE)
Read All Instructions Carefully Before Starting The
This stove meets
U.S. Test Standard:
UL1482
SAFETY NOTICE:
If this heater is not properly installed, a house
fi re may result. For your safety, follow the in-
stallation instructions. Contract local building
or fi re offi cials about obtaining permits, restric-
tions and installation requirements in your area.
Installation or Operating This Heater.
Improper Installation Could Void Your Warranty!
U.S. Stove
227 Industrial Park Road
P.O. Box 151
South Pittsburg, TN 37380
www.vogelzang.com
1
CAUTION!
852131B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vogelzang International VG651ELG
Summary of Contents for Vogelzang International VG651ELG
- Page 1 MOUNTAINEER WOODSTOVE MODEL VG650ELG / VG651ELG OWNER’S MANUAL (SAVE THIS MANUAL FOR FUTURE REFERENCE) SAVE THESE INSTRUCTIONS This stove meets THIS MANUAL WILL HELP YOU TO OBTAIN EF- U.S. Test Standard: FICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO ORDER REPAIR UL1482 PARTS CORRECTLY.
- Page 2 SAFETY 1) The installation of this stove must comply with your local able to recommend a qualifi ed inspector. Chimney connector building code rulings. Please observe the clearances to pipe must be in good condition. Replace if necessary before combustibles (see reference figures 7– 9). Do not place using stove.
- Page 3 21) NEVER LEAVE SMALL CHILDREN UNSUPERVISED • Check stove for smoking or puffi ng (open airfl ow controls). WHEN THEY ARE IN THE SAME ROOM AS THE • Check chimney & connector pipe for leaks, blockage or STOVE. If small children will be in the same room as the down-draft conditions.
- Page 4 ASSEMBLY INSTRUCTIONS Tools and Materials Needed TOOLS MATERIALS • Pencil • 6" Pipe, 6" Elbow, Collar and Thimble; As Required (24 gauge min.) • 6 Foot Folding Rule or Tape Measure • 1/2" Sheet Metal Screws (No. 10A x 1/2") •...
- Page 5 Electrical Specifications: Volts: 120 Hertz: 60 Amps: 0.55 DESCRIPTION PART NO. QTY. Blower Housing Back 25089B Blower Housing Front 25090B Blower Motor 80442 Rheostat w/Nut and Knob 80090 Strain Relief Bushing 80109 Power Supply Cord 80232 Heat Shield 891861 10AB x 3/8 Hex Screw 83172 #12 x 3/4 Teks Screw C23799...
-
Page 6: Locating Stove
LOCATING STOVE 1. The stove must be placed on solid concrete, steel stove pipe. DO NOT use galvanized stove solid masonry, or when installed on a combus- pipe. Secure pipe/elbow sections with a mini- tible oor, on a listed UL 1618 Type 2 oor mum of three (3) equally spaced sheet metal protector, such as Hy-C or Imperial Model screws at each joint and at the stove collar to... - Page 7 LOCATING STOVE continued… CORNER CLEARANCES CAUTION: KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIALS AWAY FROM THE STOVE. 18-1/2" NOTE: BEFORE FIRING WOODSTOVE SLIDE FIREBRICKS TOWARDS THE REAR SO NO GAPS REMAIN BETWEEN BRICKS. 18-1/2" Fig. 8 – Top View Minimum Corner Clearances from Combustible Surfaces Fig.
- Page 8 PIPE CONNECTOR INSTALLATION 5. Secure pipe/elbow sections with a minimum of NOTE: STOVE PIPE IS NOT INCLUDED. TO three (3) equally spaced sheet metal screws at PURCHASE, VISIT YOUR LOCAL HARDWARE, each joint and at the stove collar to make the HOME OR BUILDING CENTER.
-
Page 9: Chimney Connections
CHIMNEY CONNECTIONS MASONRY CHIMNEY The stove must be connected to either a ma- sonry or manufactured metal chimney built and Chimney must be a code-approved, ma- tested to the specifications listed on the previous sonry chimney with flue liner. Before using an pages. - Page 10 CHIMNEY CONNECTIONS continued … MANUFACTURED CHIMNEY REFER TO CHIMNEY AND CHIMNEY CON- NECTOR MAKER’S INSTRUCTIONS FOR INSTAL- LATION AND USE. Use only 6” diameter listed chimney UL 103 HT. Chimney made to this listing is High Temperature rated to 2100 degrees Fahrenheit. Use chimney from only one manufacturer.
- Page 11 CHIMNEY CONNECTIONS continued … USE a chimney that is unlined or damaged!) If you should insure proper clearance for a 6˝ stovepipe. have any question regarding the condition of the chim- 2. Install a fire clay (5/8˝ minimum thickness) thimble. ney, consult a qualified licensed contractor, qualified Make sure the thimble is flush with the inner surface engineer, competent mason, certified Chimney Sweep,...
- Page 12 CHIMNEY CONNECTOR SYSTEMS & CLEARANCES A. Brick Masonry Minimum 3.5˝/89mm thick brick masonry all framed into com- bustible wall with a minimum of 12˝/305mm brick separation from clay liner to combustibles. The fireclay liner shall run from outer surface of brick wall to, but not beyond, the inner surface of chimney flue liner and shall be firmly cemented in place.
-
Page 13: Adding Fuel
OPERATING INSTRUCTIONS CAUTION: HOUSE FIRE HAZARDS WOOD FUEL ONLY! Hardwood, 16” to 18” should be air dried TOR, UNDERNEATH STOVEPIPE OR ANY- (seasoned), for a minimum of 6 months to obtain WHERE WITHIN MINIMUM CLEARANCES FROM maximum burning efficiency. Logs greater than COMBUSTIBLE SURFACES SPECIFIED FOR 6˝in diameter should be split. - Page 14 CREOSOTE – FORMATION AND NEED process and less buildup of tars, soot, or creosote will occur in FOR REMOVAL the chimney. 1) Always open draft damper before opening the feed door. CAUTION: RISK OF FIRE WHEN WOOD IS BURNED 2) When adding fuel be careful not to smother the fi re. Do not SLOWLY, IT PRODUCES TAR AND OTHER ORGANIC build fi...
-
Page 15: Chimney Draft
SERVICE HINTS continued … 4. Do not attempt to burn (or mix in) green or chimney it creates a lower pressure at the bottom of wet wood. The use of green or wet wood will the chimney to which the stove is connected. The cause a rapid build up of creosote. -
Page 16: Glass Care
SERVICE HINTS continued GLASS CARE 2. Environmental Factors Wind or air deflecting off external objects such CAUTION: DO NOT OPERATE WITH CRACKED as the roof, neighboring structures, trees, or OR BROKEN GLASS. hills. These can cause a pressure change in the Periodic cleaning of glass will be necessary to air surrounding the chimney. - Page 17 SERVICE HINTS continued 3. Remove glass from door frame. and will need to be replaced. Inspect glass and door gaskets periodically to ensure proper seal; if gas- 4. If glass is broken, carefully remove and discard each broken piece to avoid cuts. Discard win- kets become frayed or worn, replace immediately.
- Page 18 ORDERING PARTS - VG650ELG MOUNTAINEER STOVE Ref. No. Part Description Ref. No. Part Description PL02715 Bottom Window Bracket 69427B Ash Pan 83033 Machine Screw 8-32 X ¼ 40487 Ash Dump Cover - Square 891213 Hinge Pad 40561 Ash Dump Cover - Round 83274 Nut 3/8-16 24103...
- Page 19 ORDERING PARTS - VG650ELG MOUNTAINEER STOVE GLASS REPLACEMENT INSTRUCTIONS FOR MODEL VG650ELG / VG651ELG When ordering missing or replacement parts, always give the Model Number of the stove, Part Number, and Part Description. Use the illustrations and part lists provided to identify parts WARNING: Do not use substitute materials.
- Page 20 FLOOR PROTECTOR MATERIAL CALCULATIONS This stove has been tested for and must be installed on a floor protector with the proper Thermal Resistance or R-value as stated in the installation instructions on page 6, “Locating Stove” step 1, of this manual. If the floor protector materials listed in the instructions are not available, materials with an equivalent R-value may be substituted.
-
Page 21: Chimney & Stove Maintenance Log
CHIMNEY & STOVE MAINTENANCE LOG DATE OF SERVICE PERFORMED BY DESCRIPTION... - Page 22 U.S. Stove 227 Industrial Park Road P.O. Box 151 South Pittsburg, TN 37380 www.vogelzang.com...
