French version is available for download from the U. S. Stove website: http://www.usstove.com/
La version française est disponible pour téléchargement à partir du site U. S. Stove: http://www.usstove.com/
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU
TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
U. S. Stove
227 Industrial Park Road P.O. Box 151
South Pittsburg, TN 37380
(800) 750-2723 • www.usstove.com

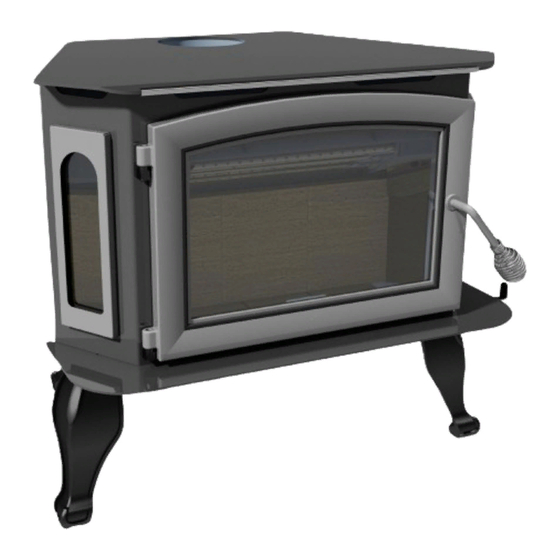

MODEL: VG180L
Approved for installation in the USA and Canada
CONFORMS TO UL 1482, AND CERTIFIED TO ULC-S627 AND ULC-S628
Also suitable for use in a Mobile or Manufactured home. (USA Only)
U.S. Environmental Protection Agency
Certified to comply with 2015 particulate emissions standards.
SAVE THESE INSTRUCTIONS
CAUTION!
Please read this entire manual before you
install or use your new room heater. Failure
to follow instructions may result in property
damage,
bodily
Improper Installation Could Void Your Warranty!
SAFETY NOTICE:
If this heater is not properly installed, a house fire
may result. For your safety, follow the installation
instructions. Never use make-shift compromises
during the installation of this heater. Contact local
building or fire officials about permits, restrictions
and installation requirements in your area.
injury,
or
even
852909-3905G
death.
Advertisement
Table of Contents
Related Manuals for Vogelzang International VG180L
Summary of Contents for Vogelzang International VG180L
- Page 1 MODEL: VG180L CAUTION! Please read this entire manual before you install or use your new room heater. Failure to follow instructions may result in property damage, bodily injury, even death. Improper Installation Could Void Your Warranty! SAFETY NOTICE: If this heater is not properly installed, a house fire may result.
-
Page 2: Specifications
Future generations will thank you. This manual describes the installation and operation of the Vogelzang, VG180L wood heater. This heater meets the 2015 U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters sold after May 15, 2015. -
Page 3: Unpack And Inspect
Pre-Assembly UNPACK AND INSPECT Remove the packing from the appliance and inspect for any damage. Ensure that the bricks are positioned correctly and not broken (see illustration for proper brick arrangement). Make sure that the baffle board, above the air tubes, is in place and undamaged. DO NOT remove the baffle board. Brick Configuration... -
Page 4: Leg Assembly
ASSEMBLY LEG ASSEMBLY BLOWER INSTALLATION Part No. Description Qty. 891492 Blower Assembly 27493 B36 Air Deflector 27494 B-36 Mounting Plate 83172 #10AX1/2 Screws The blower and deflector panel for your stove come packed in the firebox. 1. Remove the blower and deflector panel. -
Page 5: Installation
Installation SAFETY NOTICE • If this stove is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. • Consult your municipal building department or fire officials about permits, restrictions and installations requirements in your area. -
Page 6: Floor Protector
Installation FLOOR PROTECTOR The stove must be placed on solid concrete, solid masonry, or when installed on a combustible floor, on a Type 2 floor protector listed to standard UL 1618 with a minimum R value of 1.03 and a minimum thickness of 1/2”... - Page 7 Ventilation COMBUSTION AIR ASSEMBLY INSTRUCTIONS This appliance requires a source of combustion air. If your home is of tight construction or has negative pressure problems, you will need an outside source of air. Below is a list of possible indicators that a source of outside combustion air may be required.
- Page 8 Ventilation CHIMNEY Your wood stove may be hooked up with a factory built or masonry chimney, matching the diameter of the stove exhaust. If you are using a factory built chimney, it must comply with UL 103 or CSA-B365 standard; therefore it must be a Type HT (2100°F). It is extremely important that it be installed according to the manufacturer’s specifications.
- Page 9 Ventilation MASONRY CHIMNEY Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated. When connecting the stove through a combustible wall to a masonry chimney, special methods are needed as explained in the “5.5 Combustible Wall Chimney Connector Pass-Throughs”...
-
Page 10: Combustible Wall Chimney Connector Pass-Throughs
Ventilation COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS-THROUGHS Method A. 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Standard Specification for Clay Fire Linings) or its equivalent. -
Page 11: Chimney Connector (Stove Pipe)
Ventilation CHIMNEY CONNECTOR (STOVE PIPE) Your chimney connector and chimney must have the same diameter as the stove outlet. If this is not the case, we recommend you contact your dealer in order to insure there will be no problem with the draft. The stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021”... -
Page 12: Factory Built Chimney
Ventilation FACTORY BUILT CHIMNEY When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed. You must also purchase (from the same manufacturer) and install the ceiling support package or wall pass- through and “T” section package, firestops (where needed), insulation shield, roof flashing, chimney cap, etc. Maintain proper clearance to the structure as recommended by the manufacturer. -
Page 13: Do Not Burn
Woodstove Utilization This heater is designed to burn natural wood only. Higher efficiencies and lower emissions generally result when burning air dried seasoned hardwoods, as compared to softwoods or to green or freshly cut hardwoods. DO NOT BURN: 1. Garbage; 10. -
Page 14: Testing Your Wood
Woodstove Utilization CAUTIONS: • Ashes could contain hot embers even after two days without operating the stove. • The ash pan can become very hot. Wear gloves to prevent injury. • Never burn the stove with the stove door or ash clean out opening unsealed . This would result in over firing the stove. -
Page 15: Operation
Woodstove Utilization The amount of visible smoke being produced can be an effective method of determining how efficiently the combustion process is taking place at the given settings. Visible smoke consist of unburned fuel and moisture leaving your stove. Learn to adjust the air settings of your specific unit to produce the smallest amount of visible smoke. -
Page 16: Ash Disposal
Woodstove Utilization Creosote - Formation and Need for Removal when wood is burned slowly, it produces tar and other organic vapors, which combine with expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney flue of a slow-burning fire. As a result, creosote residue accumulates on the flue lining. When ignited, this creosote makes an extremely hot fire. -
Page 17: Maintenance
Maintenance Your wood stove is a high efficiency stove and therefore requires little maintenance. It is important to perform a visual inspection of the stove every time it is emptied, in order to insure that no parts have been damaged, in which case repairs must be performed immediately. Inspect and clean the chimney and connector pipe periodically for creosote buildup or obstructions. -
Page 18: Troubleshooting
Troubleshooting High Fuel Consumption Possible Cause Possible Remedies (Unplug blower first if equipped) Improper regulation of draft or air inlet Close air inlet control as much as possible to maintain desired heat output. Check all gaskets, reinstall if necessary (see maintenance for gasket replacement procedure). - Page 19 Parts List / Repair Parts Key Part No. Description Qty. 26699 Cover Plate, Access Panel 88206 Access Panel Insulation 27493 B36 Air Deflector In order to maintain warranty, components 27494 B-36 Mounting Plate must be replaced using original manufacturers 891492 Blower Assembly (B36) parts purchased through your dealer or directly 26410...
- Page 20 Parts List / Repair Parts Key Part No. Description Qty. 891135 Handle, Spring (Lg-Nickel) 892333 4" Handle 40585 Large Viewing Glass Door 26314 Gasket Clamp 26312 Glass Clamp, Side 26311 Glass Clamp, Bottom 88174 Glass Gasket (1 x 1/8) 4.4ft 892204 Glass 88082...
- Page 21 FLOOR PROTECTOR The stove must be placed on solid concrete, solid masonry, or when installed on a combustible floor, on a Type 2 floor protector listed to standard UL 1618 with a minimum R value of 3.0 and a minimum thickness of 1”...
-
Page 22: Service Record
Service Record It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. Service Provider: Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. -
Page 23: Limited Warranty
Limited Warranty Plate Steel Heaters (Inserts, Freestanding, and Pedestal) The operation of this heater in a manner inconsistent with the owner’s manual will void the warranty and is also against federal regulations. United States Stove Company warrants to the original purchaser its products against premature failure of any component due to workmanship, quality, or materials as follows: TIME PERIOD: Firebox ............................ - Page 24 Notes...
-
Page 25: How To Order Repair Parts
How To Order Repair Parts / Commande De Pièces De Rechange This manual will help you obtain efficient, dependable service from your stove, and enable you to order repair parts correctly. Keep this manual in a safe place for future reference. When writing, always give the full model number which is on the nameplate attached to the stove.
