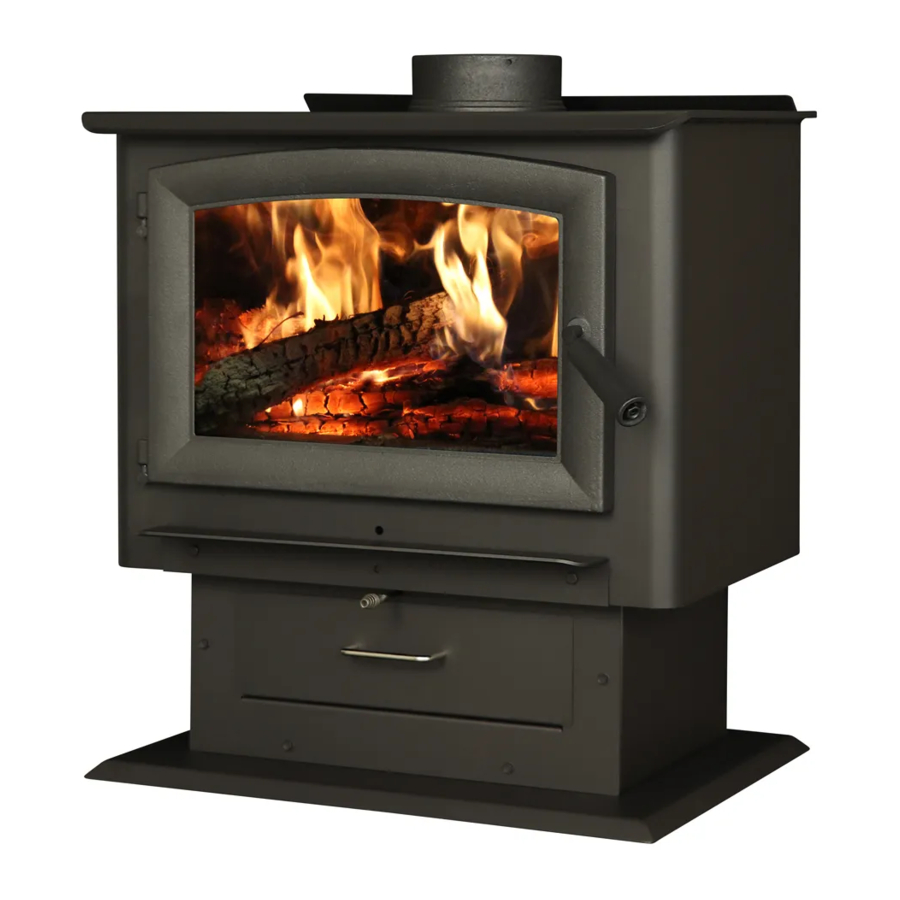

Owner's Instruction and Operation Manual
Model Numbers:
VG1120-P •
VG1120-L
•
Report Number: F19-473
Tested Per EPA Methods ALT-125, ASTM
E2515, ASTM E3053 and CSA B415
Certified to UL 1482-2011 (R2015) and
ULC-S627-00-REV1
Mobile home approved USA and Canada
* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.
SAFETY NOTICE: If this heater is not properly installed, a house fire may result. For
your safety, follow the installation instructions. Never use make-shift compromises
during the installation of this heater. Contact local building or fire officials about
permits, restrictions and installation requirements in your area. NEVER OPERATE THIS
PRODUCT WHILE UNATTENDED.
CAUTION! Please read this entire manual before you install or use your new room
heater. Failure to follow instructions may result in property damage, bodily injury, or
even death. Improper Installation Will Void Your Warranty!
U.S. Environmental Protection Agency
Certified to comply with 2020 particulate
emissions standards.
© 2021 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380
VG1120-BP
VG1120-BL
R
Save These Instructions In A Safe Place For Future Reference.
THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals
including carbon monoxide, which is known to the
State of California to cause cancer, birth defects,
and/or other reproductive harm. For more
information, go to
853522H-1805K
www.P65warnings.ca.gov
Ph. 800-750-2723
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vogelzang International VG1120-P
Summary of Contents for Vogelzang International VG1120-P
- Page 1 Owner’s Instruction and Operation Manual Model Numbers: VG1120-P • VG1120-BP VG1120-L • VG1120-BL Report Number: F19-473 Tested Per EPA Methods ALT-125, ASTM E2515, ASTM E3053 and CSA B415 Certified to UL 1482-2011 (R2015) and ULC-S627-00-REV1 Mobile home approved USA and Canada * All Pictures In This Manual Are For Illustrative Purposes Only.
-
Page 2: Installation Checklist
INSTALLATION CHECKLIST This manual describes the installation and operation of the Vogelzang, VG1120 wood heater. This heater meets the 2020 U.S. Environmental Protection Agency’s cordwood emission limits for wood heaters sold after May 15, 2020. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 15,196 to 40,594 Btu/hr with 1.7 g/hr and 69% efficiency. -
Page 3: Customer Service
INSTALLATION CHECKLIST Your Wood Stove should be installed by a qualified installer only. An NFI qualified Installer can be found at www.nficertified. org/public/find-an-nfi-pro/ CUSTOMER SERVICE 1-800-750-2723 ext 5050 Text to 423-301-5624 Email to: Customerservice@usstove.com COMMISSIONING CHECKLIST This Checklist is to be completed in full by the qualified person who installs this unit. Keep this page for future reference. Failure to install and commission according to the manufacturer’s instructions and complete this checklist will invalidate the warranty. -
Page 4: Tools And Materials
ASSEMBLY INSTRUCTIONS FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050 TOOLS AND MATERIALS ASH PAN ASSEMBLY You will need a drill with a 1/8” bit to install sheet metal Remove ash pan from firebox. Under the firebox, there are screws into the connector pipe. A 5/16” socket/wrench two brackets;... -
Page 5: Installation
ASSEMBLY INSTRUCTIONS FIREBRICK CONFIGURATION AIR DEFLECTOR ASSEMBLY Replace the Firebrick as shown in the illustration. Use the provided screws to attach the air deflector to the rear of the unit. INSTALLATION SAFETY NOTICE • IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. -
Page 6: Floor Protector
INSTALLATION FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050 FLOOR PROTECTOR This heater must have a non-combustible floor protector (ember protection) installed beneath it if the floor is of combustible material. If a floor pad is used, it should be UL listed or equal. - Page 7 INSTALLATION SECURING APPLIANCE’S WITH LEGS TO 4. The house is equipped with a well-sealed vapor barrier and tight fitting windows and/or has any powered THE FLOOR devices that exhaust house air. 1. The bracket engages around the square extrusion of the leveling bolt inserted into the leg.
-
Page 8: Chimney Connector (Stove Pipe)
INSTALLATION CHIMNEY CONNECTOR (STOVE PIPE) appliance and chimney connector joints. An uncontrollable burn or excessive temperature indicates an excessive draft. Install crimped CHIMNEY 1/4” slope per foot towards stove. Male Part Downwards Flow Direction of Flue 3 screws Gases The chimney connector and chimney must have the Your wood stove may be hooked up with a 6”... -
Page 9: Factory Built Chimney
INSTALLATION 5. Using a fire screen at the extremity of the chimney requires regular inspection to ensure that it is not Concrete Cap Fireclay Flue obstructed thus blocking the draft, and it should be Liner With Airspace 1” Clearance cleaned when used regularly. with Firestop FACTORY BUILT CHIMNEY Rafter... - Page 10 INSTALLATION METHOD B - 9” (228.6 mm) Clearance to Combustible Wall Member: Using a 6” (152.4 mm) inside diameter, listed, factory-built Solid-Pak chimney section with insulation of 1” (25.4 mm) or more, build a wall pass-through with a minimum 9” (228.6 mm) air space between the outer wall of the chimney length and wall combustibles.
- Page 11 OPERATION INSTRUCTIONS NEVER OPERATE THIS PRODUCT WHILE UNATTENDED be used in your stove, but specific varieties have better CAUTIONS: HOUSE FIRE HAZARDS energy yields than others. Higher efficiencies and • DO NOT STORE WOOD ON FLOOR PROTECTOR, lower emissions generally result when burning air dried UNDERNEATH STOVEPIPE(S) ANYWHERE...
-
Page 12: Testing Your Wood
OPERATION INSTRUCTIONS TAMPER WARNING wood sizzles in the fire, even though the surface is dry, it may not be fully cured and should be seasoned longer. This wood heater has a manufacturer-set minimum low burn rate that must not be altered. It is against federal It is EXTREMELY IMPORTANT that you use DRY WOOD regulations to alter this setting or otherwise operate this only in your wood stove. -
Page 13: Fueling Instructions
OPERATION INSTRUCTIONS FUELING INSTRUCTIONS After the first high burn load and the stove is well warmed up, adjust the unit as needed for a medium or low burn This wood stove has been certified by the US EPA to meet setting. -
Page 14: Air Tubes
OPERATION INSTRUCTIONS AIR TUBES firebox into the living area to distribute the heat more evenly. The blower control knob is located on the side of The air tubes assembled in this unit are designed to the blower housing. Turn the knob clockwise to turn the provide an accurate mix of secondary air to ensure the blower on. -
Page 15: Glass Care
CHIMNEY MAINTENANCE ASH REMOVAL & DISPOSAL • Never wash the glass with a product that may scratch. Use a specialized product, available in the stores where Whenever ashes get 3 to 4 inches deep in your firebox or wood stoves are sold. The glass should be washed only ash pan, and when the fire has burned down and cooled, when cold. -
Page 16: How To Order Repair Parts
OPTIONAL B36 BLOWER WIRING DIAGRAM DANGER: SHOCK HAZARD DISCONNECT POWER SOURCE BEFORE INSTALLATION AND WHENEVER SERVICING BLOWER ASSEMBLY. CAUTION: MOVING PARTS CAN CAUSE INJURY. DO NOT OPERATE WITH COVER REMOVED. WHITE / BLACK / BLACK / BLANC NOIR NOIR BLACK / BLACK / BLACK / NOIR... -
Page 17: Repair Parts
REPAIR PARTS Part # Description 29139 Air Deflector 891824 Heatshield Weldment 40292A 6” Flue Collar 88042 1/4” Rope Gasket 610934 Pedestal Weldment (VG1120-BP) 610918 Access Panel (VG1120-BP) 29055 Ashpan 610944 Ashpan Housing Weldment 610883 Leg Weldment (VG1120-BL) 610928 Damper Weldment (VG1120-BL) 86709 Damper Rod... - Page 18 REPAIR PARTS Part # Description 29039 Brick Retainer 29040 Brick Retainer 88315 Kao Wool Blanket 88147 Board, Ceramic Fiber 86904 Secondary Tube 891414 Half Firebrick 89066 Firebrick (4-1/2 X 9) 891095 Firebrick (6 X 8-1/4) 23783 Firebrick (1-1/4 X 2-9/16 X 9) 86903 Secondary Tube 86905...
-
Page 19: Service Record
SERVICE RECORD It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. SERVICE PROVIDER Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. - Page 20 NOTES © 2021 United States Stove Company...
