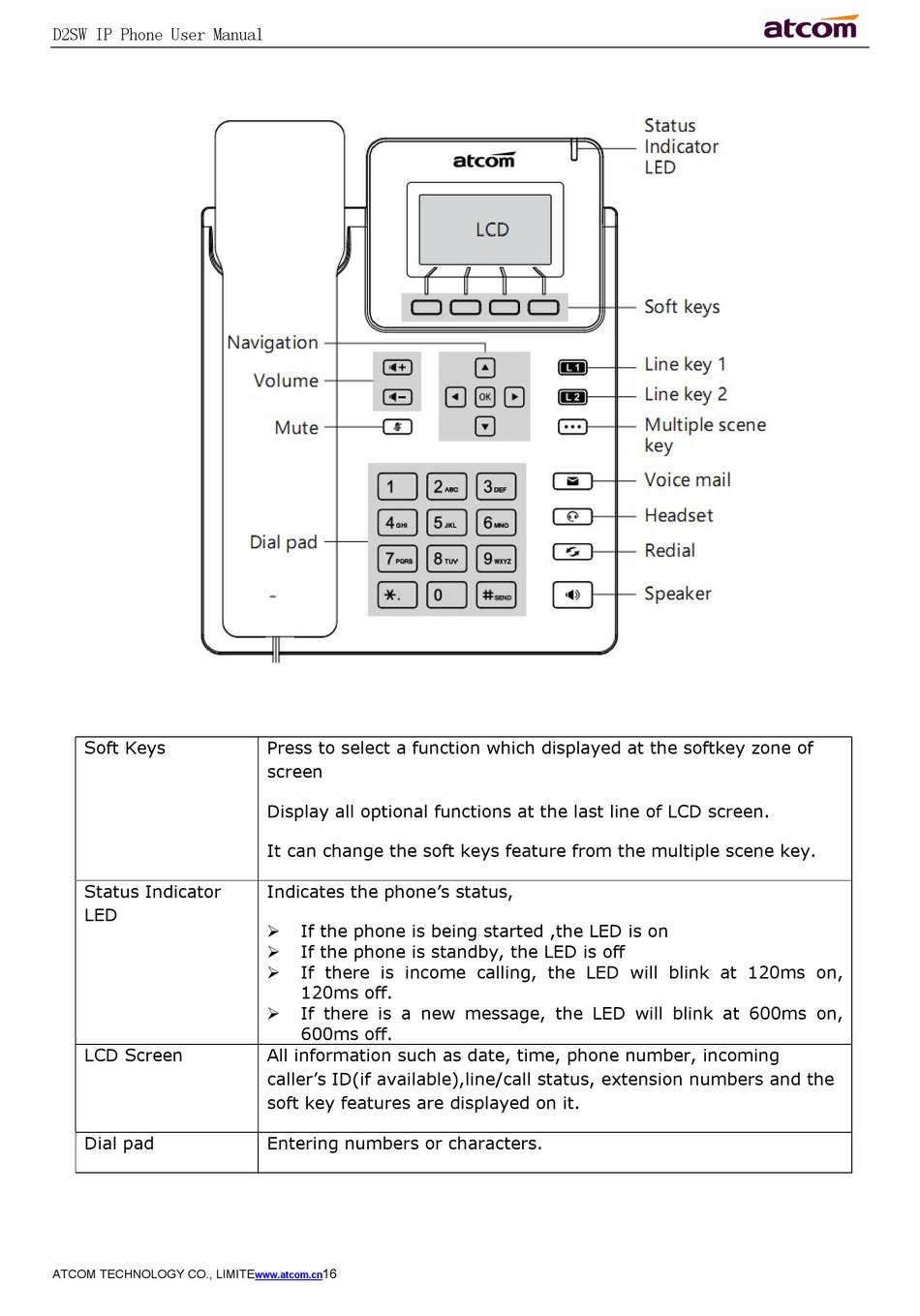

D2SW IP Phone User Manual
Soft Keys
Status Indicator
LED
LCD Screen
Dial pad
ATCOM TECHNOLOGY CO., LIMITE
Press to select a function which displayed at the softkey zone of
screen
Display all optional functions at the last line of LCD screen.
It can change the soft keys feature from the multiple scene key.
Indicates the phone's status,
If the phone is being started ,the LED is on

If the phone is standby, the LED is off

If there is income calling, the LED will blink at 120ms on,

120ms off.
If there is a new message, the LED will blink at 600ms on,

600ms off.
All information such as date, time, phone number, incoming
caller's ID(if available),line/call status, extension numbers and the
soft key features are displayed on it.
Entering numbers or characters.
