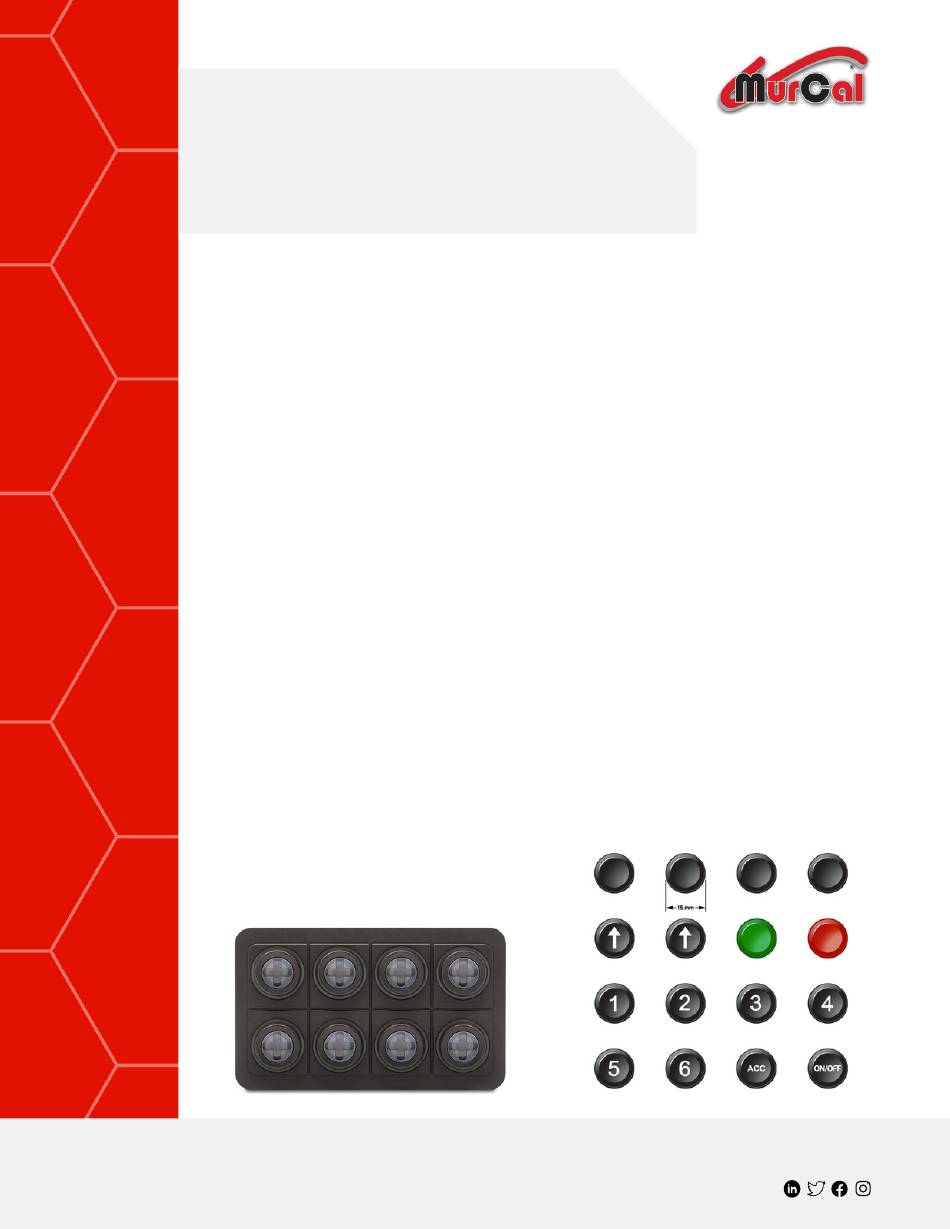

Blink Keypad
Pro Series Tips
Keypad Basics
The Identifier 18 --> Default Keypad ID (cannot be changed)
Ext means that the message format is 29 bits instead of 11 bits.
The Identifier is basically a CAN Id which in this case has a source address (21 - keypad) ,
destination address (FF - any) --> Sending a message FROM the keypad TO the control unit
In case of Identifier 18EF2100h where destination address (21 - Keypad) , source address (00
- control unit) --> Sending a message TO the keypad FROM the control unit.
You can change the Destination address and Source address as you like.
The default keypad address is 21h.
CONTACT
(661) 272-4700
SALES@MURCAL.COM
EF --> Message is made addressable in PDU Format
FF --> broadcast messages to no specific destination address
21 --> Source address of the keypad default
h --> hexadecimal value
WWW.MURCAL.COM
@MURCALINC
Advertisement
Related Manuals for Blink Marine Keypad Pro Series
Summary of Contents for Blink Marine Keypad Pro Series
- Page 1 Blink Keypad Pro Series Tips Keypad Basics The Identifier 18 --> Default Keypad ID (cannot be changed) EF --> Message is made addressable in PDU Format FF --> broadcast messages to no specific destination address 21 --> Source address of the keypad default h -->...
- Page 2 Difference between a J1939 and a CANOpen in Blink Keypads: J1939 CANOpen Identifier length 29bit 11 bit 125kbit/s Baud rate 250kbit/s 250kbit/s 500kbit/s available value 500kbit/s 1000kbit/s CAN address 01h – 7Fh (1-127) 01h – FDh (1-253) available range Green Green Blue Blue...
- Page 3 CANOpen J1939 Solid ON Solid ON Blink Blink LED indicator state Alternate blink between Alternate blink between two colors two colors LED/Backlight 00h-3Fh (0 – 100%) 00h – 3Fh (0 – 100%) brightness level Green Green Blue Blue Yellow Yellow Backlight colors Cyan Cyan...
- Page 4 CANOpen J1939 Keys message periodic Available on request Available on request transmission (10ms – 65s) (50ms – 2540 ms) Message Event-driven Event-driven transmission type Synchronous Reset to the factory settings FAQs If a key is pressed on the keypad, does it send out multiple CAN messages as long as the button is pressed or just one message per press? The message is transmitted when the key changes its status: e.g., until you keep pressed a key one message is transmitted, when you release it another message is transmitted.
