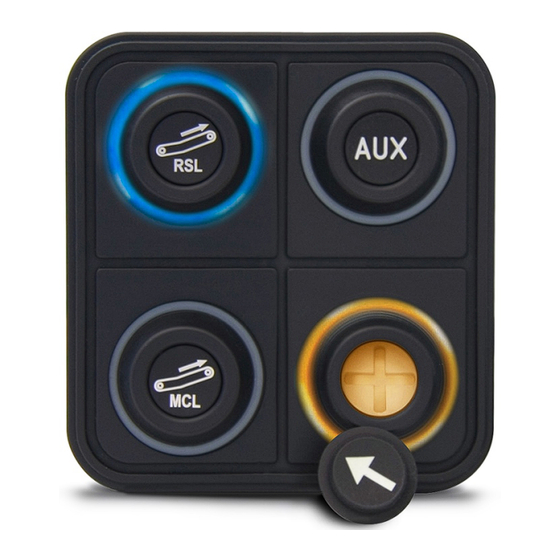

PKP-2200-SI
J1939 USER MANUAL
PLEASE CONTACT US FOR GETTING THE MOST UPDATED FILE
- 1 -
PKP-2200-SI_J1939_UM_REV1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PKP-2200-SI and is the answer not in the manual?

Questions and answers

Related Manuals for Blink Marine PKP-2200-SI

Summary of Contents for Blink Marine PKP-2200-SI

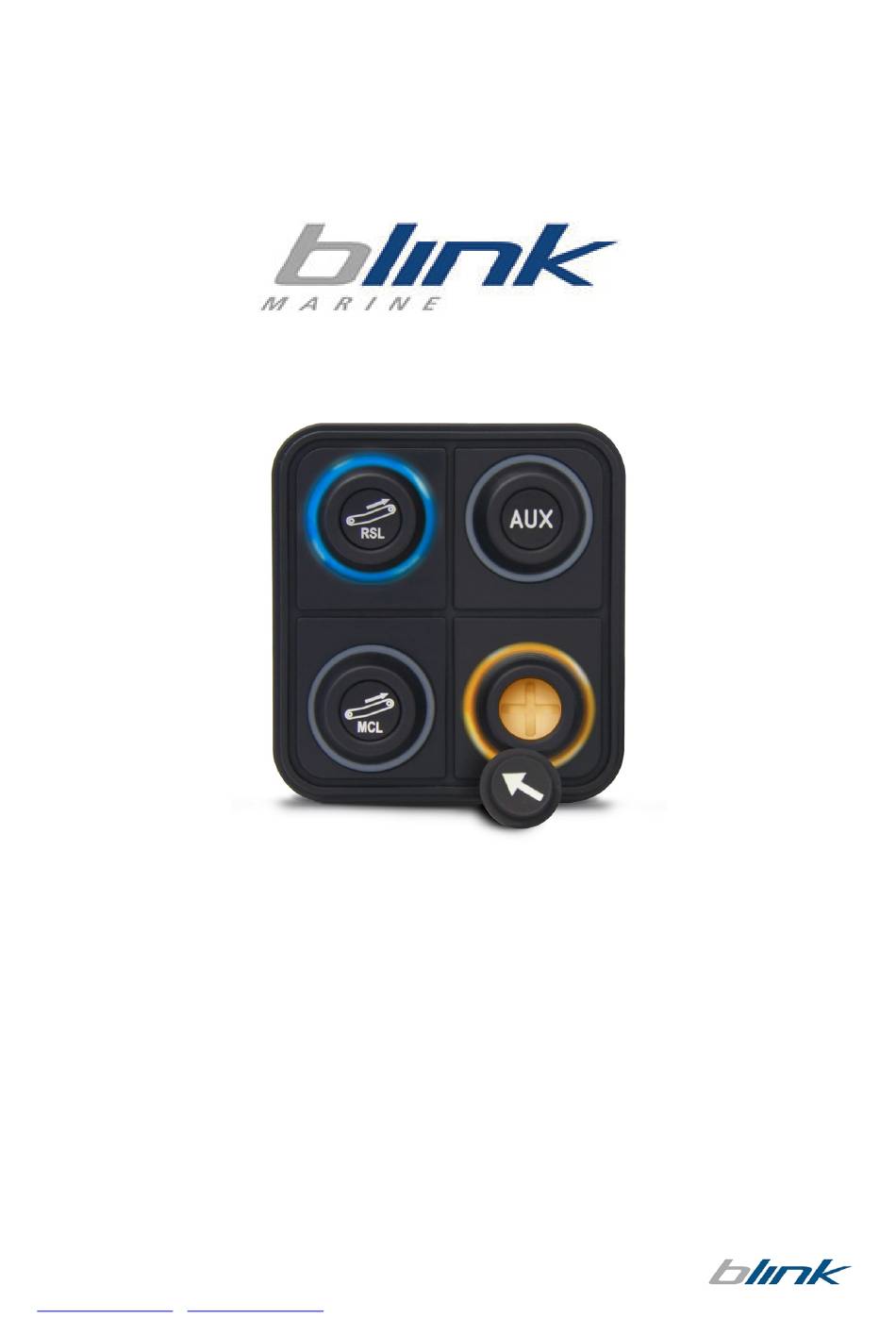

  • Page 1 PKP-2200-SI J1939 USER MANUAL THE PRESENT MANUAL IS FOR REFERENCE ONLY AND MIGHT BE NOT UP TO DATE TO THE LATEST VERSION. PLEASE CONTACT US FOR GETTING THE MOST UPDATED FILE Via Montefeltro, 6 – 20156 Milano (MI) – Italy - 1 - Tel. +39 (02) 3088583 – Fax +39 (02) 33406697 www.blinkmarine.om – info@blinkgroup.com PKP-2200-SI_J1939_UM_REV1.0...

  • Page 2: Table Of Contents

    Table of contents 1. How to connect CAN bus: ..................3 2. Reference ......................... 3 3. Message header description ..................4 4. General Data Format ....................4 5. Default Settings ......................5 6. Key Contact state (01h) .................... 5 7. LED command (01h) ....................6 8. Set LED brightness level (02h) .................. 7 9. Set backlight level (03h) ................... 7 10. Set startup keys message(28h) ................. 7 11. Get software revision (2Ah) ..................8 12. Set startup LED show (34h) ..................8 13. Baud rate setting (6Fh) ..................... 8 14. Set Source Address (70h) ..................9 15. Periodic state transmission (71h) ................9 16. Event state transmission (72h) ................10 17.

  • Page 3: How To Connect Can Bus

    1. How to connect CAN bus: PIN COLOUR FUNCTION Blue CAN L White CAN H Black Negative battery Red Vbatt. (12-24V) Each end of the CAN bus is terminated with 120Ω resistors in compliance with the standard to minimize signal reflections on the bus. You may need to place a 120Ω resistor between CAN-L and CAN-H. 2. Reference PKP-2200-SI Via Montefeltro, 6 – 20156 Milano (MI) – Italy - 3 - Tel. +39 (02) 3088583 – Fax +39 (02) 33406697 www.blinkmarine.com – info@blinkgroup.com PKP-2200-SI_J1939_UM_REV1.0...

  • Page 4: Message Header Description

    3. Message header description The 29-bit CAN identifier used in J1939 is structured in the following way. Priority Reserved Data Page PDU Format PDU Specific Source Address 3 bits 1 bit 1 bit 8 bits 8 bits 8 bits The proprietary format used by PK and PKP keypads is defined as follows: Priority = 6. Reserved = 0. Data page = 0. PDU Format = EFh (the message is addressable). PDU Specific = Destination Address. Parameter Group Number (PGN) = 61184 (EF00h). An example of CAN identifier of messages sent to the keypad is 18EF2100h where: 21h is the destination address (keypad) 00h is the source address. An example of CAN identifier of messages sent by the keypad is 18EFFF21h where: FFh refers to broadcast messages (no specific destination address) 21h is the source address (keypad). 4. General Data Format The proprietary protocol has defined a general format for the data fields in the PGN 61184. The format consists of: 1 header field (2 bytes) 1 command byte 5 bytes (the remaining field) are defined specifically for each command. The data length is 8 bytes, unused bits and bytes are set to all 1’s (0xFF).

  • Page 5: Default Settings

    5. Default Settings Setting Default state or level How to change CAN bus Baud Rate 250 kbit/s Command 6Fh Source Address 21h Command 70h Keypad Identifier 21h Command 70h Heartbeat Message Disable Command 75h Periodic state Disable Command 71h transmission Periodic transmission 100ms Command 77h period Event state transmission Enable Command 72h Address claim Disable Command 74h LED brightness level 3Fh Command 7Ch Startup backlight OFF Command 7Bh Startup LED show Complete LED Command 34h Sequence Backlight color...

  • Page 6: Led Command (01H)

    7. LED command (01h) This message is sent to the keypad to set the state of the LED indicators. See chapter 2 for Key and LED number reference. Byte 0 04h Header bytes Byte 1 1Bh Byte 2 01h LED command message Byte 3 XXh XX: PKP Key number Byte 4 YYh LED Color 00h: off 01h: red 02h: green 03h: blue 04h: yellow 05h: cyan 06h: magenta 07h: white/light blue 08h: amber/orange 09h: yellow/green Byte 5 ZZh LED State 00h: off 01h: on 02h: blink 03h: alternate blink Byte 6 WWh LED Secondary Color (only for alt blink) 00h: off 01h: red 02h: green...

  • Page 7: Set Led Brightness Level (02H)

    8. Set LED brightness level (02h) This message sets the value of the indicator LED brightness. The value can be set from 0 to 3Fh from a minimum value to 100% of the LED dimming range. Byte 0 04h Header bytes Byte 1 1Bh Byte 2 02h LED brightness level message Byte 3 XXh XX: Dim Value (default 3Fh) From 00h (min) to 3Fh (100%) Byte 4,7 FFh Not used Example: Direction Identifier Format Message Data To Keypad 18EF2100h Ext 04 1B 02 10 FF FF FF Brightness set to 25% 9. Set backlight level (03h) This message sets the value of the backlight LED brightness. The value can be set from 0 to 3Fh from 0 to 100% of the brightness range.

  • Page 8: Get Software Revision (2Ah)

    11. Get software revision (2Ah) Byte 0 04h Header bytes Byte 1 1Bh Byte 2 2Ah Get software revision Byte 3,7 FFh Not used Answer: Byte 0 04h Header bytes Byte 1 1Bh Byte 2 2Ah Get software revision Byte 3,6 XXh XXh XXh XXh SW revision ASCII Byte 7 00h Not used Example: Direction Identifier Format Message Data To Keypad 18EF2100h Ext 04 1B 2A FF FF FF FF FF Get software revision...

  • Page 9: Set Source Address (70H)

    Direction Identifier Format Message Data To Keypad 18EF2100h Ext 04 1B 6F 02 FF FF FF FF Set baud rate = 500kbit/s 14. Set Source Address (70h) This message is used to change the keypad CAN Source Address and/or the Keypad Identifier. Either or both the Source Address or Keypad Identifier may be changed independently. Connecting only one keypad to the bus when changing the keypad address is recommended. If an invalid value is chosen, then no change is done to the stored value. Byte 0 04h Header bytes Byte 1 1Bh Byte 2 70h Set Address message Byte 3 XXh XX: CAN Source Address From 01h to FEh...

  • Page 10: Event State Transmission (72H)

    16. Event state transmission (72h) This message enables or disables event driven key state transmissions. When this feature is enabled, the keypad transmits the state of a contact at the time that the contact changes state (pressed or released). Byte 0 04h Header bytes Byte 1 1Bh Byte 2 72h Event state transmission Byte 3 XXh XX: 00h Disabled 01h Enabled (default) Byte 4,7 FFh Not used Example: Direction Identifier Format Message Data 18EF2100h Ext...

  • Page 11: Address Claim At Boot (74H)

    Address Claim at boot (74h) This message enables or disables the address claim procedure. Byte 0 04h Header bytes Byte 1 1Bh Byte 2 74h Address claim at boot Byte 3 XXh XX: 00h Disabled (default) 01h Enabled Byte 4,7 FFh Not used Example: Direction Identifier Format Message Data To Keypad 18EF2100h Ext 04 1B 74 01 FF FF FF Enable address claim Address claiming procedure: Under normal operation, the keypad application sends an Address Claim parameter group at start up and waits up to 250 ms for the other devices connected to the same network to send a message containing the device’s address and name. The keypad checks every response and compares the names to see who has the highest priority. If a device is already using the address and has a higher priority, then a new address is selected, and the process starts over. If the keypad has a higher priority than the device in use then it waits for other systems to reply, while the responding device...

  • Page 12: Heartbeat (75H)

    19. Heartbeat (75h) This message enables or disables the transmission of Heartbeat message. This message is designed to indicate to other devices on the bus that this unit continues to function. Byte 0 04h Header bytes Byte 1 1Bh Byte 2 75h Heartbeat Byte 3 XXh XX: 00h Disabled (default) 01h Enabled Byte 4 YYh YY: Period in milliseconds ÷ 10 From 05h (50ms) to FEh (2.54 sec) Byte 5,7 FFh Not used Example: Direction Identifier Format Message Data 18EF2100h Ext 04 1B 75 01 32 FF FF Set heartbeat enabled Keypad with 500ms period. Heartbeat generated message: Byte 0 04h Header bytes Byte 1 1Bh...

  • Page 13: Start Demo Mode(7Ah)

    Example: Direction Identifier Format Message Data 18EF2100h Ext 04 1B 77 0A FF FF FF Period set to 100ms Keypad 21. Start Demo mode(7Ah) This message enables the Demo mode function. Demo mode is a special feature that consists in different LED states for each button pressing. Refer to the appendix “Demo mode instructions” to try these special features. Disconnect and reconnect the keypad after the enable message to enter this mode. To exit the Demo mode, send the Disable Demo mode command or another command message. Byte 0 04h Header bytes Byte 1 1Bh Byte 2 7Ah Demo mode Byte 3 XXh XX: 00h Disabled (Default) 01h Enabled Byte 4,7 FFh Not used Example: Direction Identifier Format Message Data To Keypad 18EF2100h Ext 04 1B 7A 01 FF FF FF...

  • Page 14: Set Backlight Color (7Dh)

    Byte 3 XXh XX: Value From 00h (min) to 3Fh (100%) Byte 4,7 FFh Not used Example: Direction Identifier Format Message Data To Keypad 18EF2100h Ext 04 1B 7C 2D FF FF FF LED dim set to 75% 24. Set backlight color (7Dh) This message sets the color of the backlight. Byte 0 04h Header bytes Byte 1 1Bh Byte 2 7Dh Set backlight color Byte 3 XXh XX: color 01h: red 02h: green 03h: blue 04h: yellow 05h: cyan 06h: magenta 07h: white/light blue 08h: amber/orange...

  • Page 15: Appendix: Demo Mode Instructions

    APPENDIX: DEMO Mode instructions In DEMO Mode you can try the following functions by pressing buttons on the PKP2200SI. Entering this mode, you turn on backlight red; for the key 1 each time you press the button you can change the color of backlight with this sequence: 1. Red; 2. Green; 3. Blue; 4. Yellow; 5. Cyan; 6. Magenta; 7. White/light blue; 8. Amber; 9. Yellow/green; 10. OFF. Pressing key 2, you can increase LED and backlight brightness. Pressing key 4, you can decrease LED and backlight brightness. For the key 3, each time that you press the button, there are different steps in this sequence: 1. Complete LED show of all colors; 2. Backlight active with keys on in sequence (it is possible to change the color of LED keys by pressing button 1); 3. Alternate blinking of LED keys number 1 red color; 2 with amber color; 3 with yellow; 4 with green color. 26. Revision history Manual Related SW Date...
