ND-Series Service Manual
P515-170
1³⁄₄" Door
¹⁄₈" (3mm)
1" (25mm)
Hole
C L
P515-182
1³⁄₄" Door
¹⁄₈" (3mm)
Holes
1" (25mm)
Hole
C L

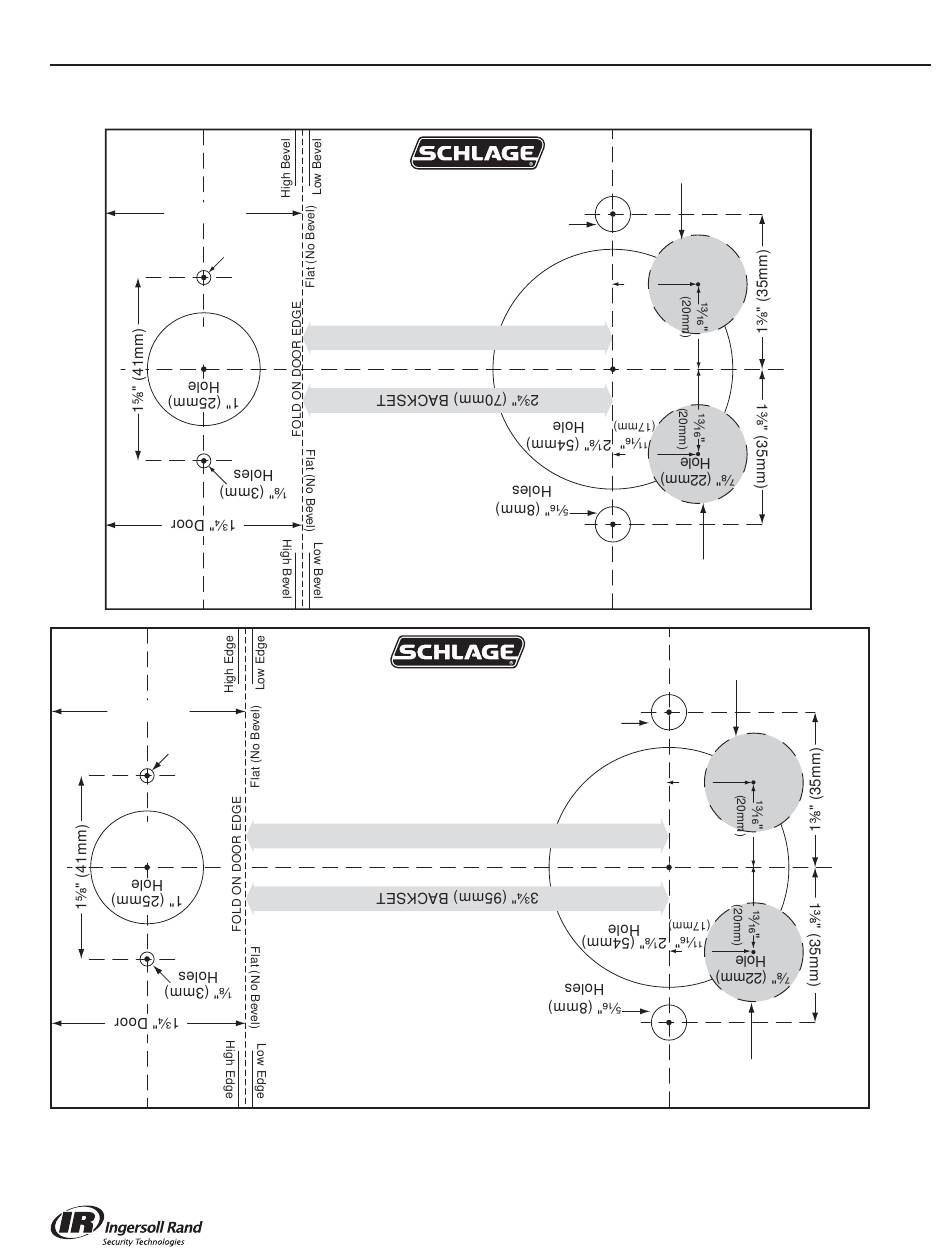

ND-Series Lever Lock
Holes
2³⁄₄" (70mm) BACKSET
ND-Series Lever Lock Template
3³⁄₄" (95mm) BACKSET
For RX Function Only
LH Door
⁵⁄₁₆" (8mm)
Holes
⁷⁄₈" (22mm)
¹¹₁₆"
2¹⁄₈" (54mm)
(17mm)
Hole
RX Function Only
RH Door
⁵⁄₁₆" (8mm)
Holes
2¹⁄₈" (54mm)
Hole

Templates

Hole
C L
For RX Function Only
LH Door
⁷⁄₈" (22mm)
Hole
¹¹₁₆"
(17mm)
C L
RX Function Only
RH Door
