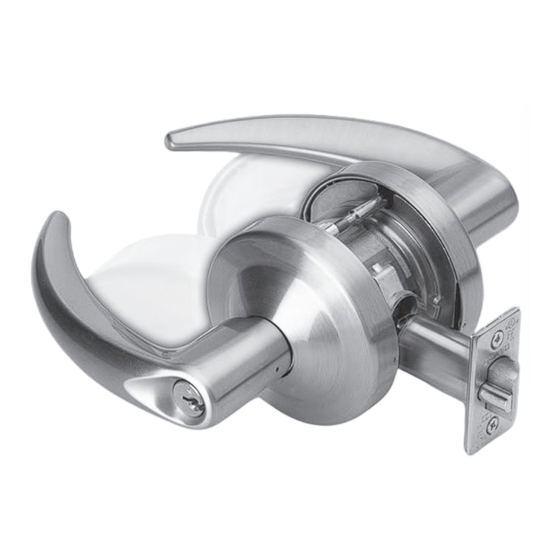

Summary of Contents for Ingersoll-Rand SCHLAGE ND Series
- Page 1 ND Series Service Manual...
-
Page 2: Table Of Contents
ND-Series Service Manual Table of Contents Introduction ............... iii Trim Assemblies (cont.) Changes and Additions ........... iv ND66 ................56 Lock Assembly Drawing Index ........1-6 ND70 ................57 Chassis ................7-37 ND70X80 ............... 58 ND10 ................7 ND72 ................59 ND12 and ND80 ............... - Page 3 ND-Series Service Manual...
-
Page 4: Introduction
ND-Series Service Manual Introduction Introduction This manual contains a complete listing of ND-Series (Grade 1) cylindrical lock parts and assemblies manufactured by the Schlage Lock Company. This edition lists components of ND-Series locks manufactured after November, 2003. Exploded views of each lock chassis and trim assemblies are provided with an accompanying chart to identify parts for replacement purposes. -
Page 5: Changes And Additions
Changes and Additions ND-Series Service Manual Changes and Additions Additions Lock Function Additional Available Feature Notes Competitor Cylinder Options The following competitor lever designs are available: Available with the following Sargent Key In Lever functions: Sargent Full Size Interchangeable Core Cylinder Single cylinder–... -
Page 6: Lock Assembly Drawing Index
ND-Series Service Manual Lock Assembly Drawing Index Lock Assembly Drawing Index Function ANSI A156.2, 1996, Series 4000, Grade 1 Trim Chassis SCHLAGE ANSI DESCRIPTION OUTSIDE FUNCTION INSIDE FUNCTION Page Page ND10 Passage Latch Lever is always unlocked. Lever is always unlocked and is always free for immediate egress. - Page 7 Lock Assembly Drawing Index ND-Series Service Manual Function ANSI A156.2, 1996, Series 4000, Grade 1 Trim Chassis SCHLAGE ANSI DESCRIPTION OUTSIDE FUNCTION INSIDE FUNCTION Page Page ND170 Single Dummy Inactive trim for one Trim side of door. Use for door pull or as matching inactive trim.
- Page 8 ND-Series Service Manual Lock Assembly Drawing Index Function ANSI A156.2, 1996, Series 4000, Grade 1 Trim Chassis SCHLAGE ANSI DESCRIPTION OUTSIDE FUNCTION INSIDE FUNCTION Page Page ND60 Vestibule Lock* Latch retracted by Inside lever is always key when locked by unlocked and is always inside key.
- Page 9 Lock Assembly Drawing Index ND-Series Service Manual Function ANSI A156.2, 1996, Series 4000, Grade 1 Trim Chassis SCHLAGE ANSI DESCRIPTION OUTSIDE FUNCTION INSIDE FUNCTION Page Page ND80 Storeroom Lock* Lever is fi xed. Entrance Inside lever is always by key only. unlocked and is always free for immediate egress.
- Page 10 ND-Series Service Manual Lock Assembly Drawing Index Function ANSI A156.2, 1996, Series 4000, Grade 1 Trim Chassis SCHLAGE ANSI DESCRIPTION OUTSIDE FUNCTION INSIDE FUNCTION Page Page ND85 Faculty Restroom Lever is fi xed. Entrance Push-button activates Lock by key only. occupancy indicator, allowing only emergency master key to operate.
- Page 11 Lock Assembly Drawing Index ND-Series Service Manual Function ANSI A156.2, 1996, Series 4000, Grade 1 Trim Chassis SCHLAGE ANSI DESCRIPTION OUTSIDE FUNCTION INSIDE FUNCTION Page Page ND96EL Storeroom Lock Lever is continuously Inside is always ® with Vandlgard — locked electrically. unlocked and free for Electrically Locked Unlocked by key or...
-
Page 12: Chassis
ND-Series Service Manual Chassis ND10 Passage Latch Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number Number Description Number... -
Page 13: Nd12 And Nd80
Chassis ND-Series Service Manual ND12 and ND80 Exit Lock/Storeroom Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number... -
Page 14: Nd12 And Nd80 Rx
ND-Series Service Manual Chassis ND12 and ND80 RX Exit Lock/Storeroom Lock with Request-to-Exit Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number... -
Page 15: Nd12El And Nd80El
Chassis ND-Series Service Manual ND12EL and ND80EL Exit Lock and Storeroom Lock —Electrically Locked (Fail Safe) Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number... -
Page 16: Nd12El And Nd80El Rx
ND-Series Service Manual Chassis ND12EL and ND80EL RX Exit Lock and Storeroom Lock —Electrically Locked (Fail Safe) with Request-to-Exit Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number... -
Page 17: Nd12Eu And Nd80Eu
Chassis ND-Series Service Manual ND12EU and ND80EU Exit Lock and Storeroom Lock—Electrically Unlocked (Fail Secure) Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number... -
Page 18: Nd12Eu And Nd80Eu Rx
ND-Series Service Manual Chassis ND12EU and ND80EU RX Exit Lock and Storeroom Lock—Electrically Unlocked (Fail Secure) with Request-to-Exit Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number... -
Page 19: Nd170
Chassis ND-Series Service Manual ND170 Single Dummy Trim Part Number Description Number Spindle Pin C604-340 Spring Cage Assembly N123-019 Dummy Insert N523-069 For mounting two ND170 as double trim, see page 45. -
Page 20: Nd25
ND-Series Service Manual Chassis ND25 Exit Lock with Blank Plate Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number... -
Page 21: Nd25X70
Chassis ND-Series Service Manual ND25X70 Special—Classroom Exit Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number Number Description... -
Page 22: Nd25X80
ND-Series Service Manual Chassis ND25X80 Special—Storeroom Exit Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number Number Description... -
Page 23: Nd30, Nd40 And Nd44
Chassis ND-Series Service Manual ND30, ND40 and ND44 Patio, Bath/Bedroom Privacy and Hospital Privacy Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number... -
Page 24: Nd50 And Nd53
ND-Series Service Manual Chassis ND50 and ND53 Entrance/Offi ce and Entrance Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number... -
Page 25: Nd60
Chassis ND-Series Service Manual ND60 Vestibule Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number Number Description Number... -
Page 26: Nd66
ND-Series Service Manual Chassis ND66 Store Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number Number Description Number... -
Page 27: Nd70
Chassis ND-Series Service Manual ND70 Classroom Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number Number Description Number... -
Page 28: Nd70X80
ND-Series Service Manual Chassis ND70X80 Special—Classroom by Storeroom Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number Number... -
Page 29: Nd72
Chassis ND-Series Service Manual ND72 Special—Communicating Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number Number Description Number... -
Page 30: Nd72 Vandlgard
ND-Series Service Manual Chassis ® ND72 Vandlgard Special—Communicating Lock with Vandlgard ® Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number... -
Page 31: Nd73
Chassis ND-Series Service Manual ND73 Corridor Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number Number Description Number... -
Page 32: Nd75
ND-Series Service Manual Chassis ND75 Classroom Security Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number Number Description... - Page 33 Chassis ND-Series Service Manual ND82 Institution Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number Number Description Number...
-
Page 34: Nd85
ND-Series Service Manual Chassis ND85 Faculty Restroom Lock Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number Number Description... -
Page 35: Nd91 And Nd92
Chassis ND-Series Service Manual ND91 and ND92 Entrance/Offi ce and Entrance Lock with Vandlgard ® Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number... -
Page 36: Nd93
ND-Series Service Manual Chassis ND93 Vestibule Lock with Vandlgard ® Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number... -
Page 37: Nd94
Chassis ND-Series Service Manual ND94 Classroom Lock with Vandlgard ® Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number... -
Page 38: Nd95
ND-Series Service Manual Chassis ND95 Classroom Security Lock with Vandlgard ® Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description... -
Page 39: Nd96
Chassis ND-Series Service Manual ND96 Storeroom Lock with Vandlgard ® Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number... -
Page 40: Nd96El
ND-Series Service Manual Chassis ND96EL Storeroom Lock with Vandlgard ® — Electrically Locked (Fail Safe) Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number... -
Page 41: Nd96Eu
Chassis ND-Series Service Manual ND96EU Storeroom Lock with Vandlgard ® — Electrically Unlocked (Fail Secure) Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number... -
Page 42: Nd97
ND-Series Service Manual Chassis ND97 Corridor Lock with Vandlgard ® Apply light fi lm of 100% synthetic grease on surfaces with brush. Barrel or tumble with 100% synthetic grease to achieve approximately .015 to .040 fi lm thickness. Part Part Number Description Number... -
Page 43: Trim Assemblies
Trim Assemblies ND-Series Service Manual ND10 Passage Latch Part Part Letter Description Number Letter Description Number Outside Lever—Closed 03-030 Anti-Rotation Plate N523-055 Inside Lever—Closed 03-030 Springlatch 13-048 Rose 03-042 Strike 10-025 Outside Spring Cage—Passage N123-043 Latch Screw C603-897 Inside Spring Cage—Standard N123-032 Mounting Screw N523-021... -
Page 44: Nd12
ND-Series Service Manual Trim Assemblies ND12 Exit Lock Part Part Letter Description Number Letter Description Number Outside Lever—Closed 03-030 Springlatch 13-048 Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Passage N123-022 Mounting Screw N523-021 Inside Spring Cage—Standard N123-032 Strike Screw C603-256... -
Page 45: Nd12 Rx
Trim Assemblies ND-Series Service Manual ND12 RX Exit Lock Request-to-Exit Part Part Letter Description Number Letter Description Number Outside Lever—Closed 03-030 Spring Latch 13-048 Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Passage N123-022 Mounting Screw N523-021 Inside Spring Cage—Standard N123-032... -
Page 46: Nd12El
ND-Series Service Manual Trim Assemblies ND12EL Exit Lock—Electrically Locked (Fail Safe) Part Part Letter Description Number Letter Description Number Outside Lever—Closed 03-030 Strike 10-025 Inside Lever—Closed 03-030 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Passage N123-022 Strike Screw C603-256 Inside Spring Cage—Standard N123-032... -
Page 47: Nd12El Rx
Trim Assemblies ND-Series Service Manual ND12EL RX Exit Lock —Electrically Locked (Fail Safe) Request-to-Exit Part Part Letter Description Number Letter Description Number Outside Lever—Closed 03-030 Strike 10-025 Inside Lever—Closed 03-030 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Passage N123-022 Strike Screw C603-256... -
Page 48: Nd12Eu
ND-Series Service Manual Trim Assemblies ND12EU Exit Lock and Storeroom Lock—Electrically Unlocked (Fail Secure) Part Part Letter Description Number Letter Description Number Outside Lever—Closed 03-030 Strike 10-025 Inside Lever—Closed 03-030 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Passage N123-022 Strike Screw C603-256... -
Page 49: Nd12Eu Rx
Trim Assemblies ND-Series Service Manual ND12EU RX Exit Lock and Storeroom Lock—Electrically Unlocked (Fail Secure) Request-to-Exit Part Part Letter Description Number Letter Description Number Outside Lever—Closed 03-030 Strike 10-025 Inside Lever—Closed 03-030 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Passage N123-022 Strike Screw... -
Page 50: Nd170
ND-Series Service Manual Trim Assemblies ND170 Single Dummy Trim N523-105 Threaded Mounting Rod Use for mounting two (2) ND170 sets as double dummy set. Part Part Letter Description Number Letter Description Number Inside Lever—Closed 03-030 Washer A501-171 Rose 03-042 Chassis 63-104†... -
Page 51: Nd25
Trim Assemblies ND-Series Service Manual ND25 Exit Lock with Blank Plate Part Part Letter Description Number Letter Description Number Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw C603-897 Inside Spring Cage—Standard N123-032 Mounting Screw N523-021 Chassis 63-093† Strike Screw C603-256 Anti-Rotation Plate N523-055... -
Page 52: Nd25X70
ND-Series Service Manual Trim Assemblies ND25X70 Special—Classroom Exit Lock ND25X70PD (shown), ND25X70RD*, ND25X70GD* Part Part Letter Description Number Letter Description Number Inside Lever—Open 03-031 Strike 10-025 Rose 03-042 Latch Screw C603-897 Inside Spring Cage—Keyed Inside except SFIC N123-021 Mounting Screw N523-021 Chassis 63-085†... -
Page 53: Nd25X80
Trim Assemblies ND-Series Service Manual ND25X80 Special—Storeroom Exit Lock ND25X80PD (shown), ND25X80RD*, ND25X80GD* Part Part Letter Description Number Letter Description Number Inside Lever—Open 03-031 Strike 10-025 Rose 03-042 Latch Screw C603-897 Inside Spring Cage—Keyed Inside except SFIC N123-021 Mounting Screw N523-021 Chassis 63-086†... - Page 54 ND-Series Service Manual Trim Assemblies ND30 Special—Patio Lock Part Part Letter Description Number Letter Description Number Outside Lever—Closed 03-030 Strike 10-025 Inside Lever—Open 03-031 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Standard N123-022 Strike Screw C603-256 Inside Spring Cage—Standard N123-032 Plunger—Push Button N123-028...
-
Page 55: Nd40
Trim Assemblies ND-Series Service Manual ND40 Bath/Bedroom Privacy Lock Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Strike 10-025 Inside Lever—Open 03-031 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Standard N123-022 Strike Screw C603-256 Inside Spring Cage—Standard N123-032 Plunger—Push Button... -
Page 56: Nd44
ND-Series Service Manual Trim Assemblies ND44 Hospital Privacy Lock Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Strike 10-025 Inside Lever—Open 03-031 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Standard N123-022 Strike Screw C603-256 Inside Spring Cage—Standard N123-032 Plunger—Push Button... -
Page 57: Nd50
Trim Assemblies ND-Series Service Manual ND50 Entrance/Offi ce Lock ND50PD (shown), ND50RD*, ND50GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Strike 10-025 Inside Lever—Open 03-031 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Standard N123-022 Strike Screw C603-256... -
Page 58: Nd53
ND-Series Service Manual Trim Assemblies ND53 Entrance Lock ND53PD (shown), ND53RD*, ND53GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Strike 10-025 Inside Lever—Open 03-031 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Standard N123-022 Strike Screw C603-256 Inside Spring Cage—Standard... -
Page 59: Nd60
Trim Assemblies ND-Series Service Manual ND60 Vestibule Lock ND60PD (shown), ND60RD*, ND60GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Deadlatch 13-047 Inside Lever—Open 03-031 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021 Inside Spring Cage—Keyed Inside except SFIC N123-021... -
Page 60: Nd60 With Closed Outside Lever
ND-Series Service Manual Trim Assemblies ND60 with closed outside lever Special ND60PD with closed outside lever (shown), ND60RD*, ND60GD* Part Part Letter Description Number Letter Description Number Outside Lever—Closed 03-030 Strike 10-025 Inside Lever—Open 03-031 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Standard... -
Page 61: Nd66
Trim Assemblies ND-Series Service Manual ND66 Store Lock ND66PD (shown), ND66RD*, ND66GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Deadlatch 13-047 Inside Lever—Open 03-031 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021 Inside Spring Cage—Keyed Inside except SFIC N123-021... -
Page 62: Nd70
ND-Series Service Manual Trim Assemblies ND70 Classroom Lock ND70PD (shown), ND70RD*, ND70GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Deadlatch 13-047 Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021 Inside Spring Cage—Standard N123-032... -
Page 63: Nd70X80
Trim Assemblies ND-Series Service Manual ND70X80 Special—Classroom by Storeroom Lock ND70X80PD (shown), NDX80RD*, ND70X80GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Deadlatch 13-047 Inside Lever—Open 03-031 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021... -
Page 64: Nd72
ND-Series Service Manual Trim Assemblies ND72 Special—Communicating Lock ND72PD (shown), ND72RD*, ND72GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Deadlatch 13-047 Inside Lever—Open 03-031 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021 Inside Spring Cage—Keyed Inside except SFIC N123-021... - Page 65 Trim Assemblies ND-Series Service Manual ND72 Vandlgard ® Special—Communicating Lock with Vandlgard ® ND72PD Vandlgard ® (shown), ND72RD Vandlgard ® *, ND72GD Vandlgard ® Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Deadlatch 13-047 Inside Lever—Open 03-031 Strike 10-025 Rose...
-
Page 66: Nd73
ND-Series Service Manual Trim Assemblies ND73 Corridor Lock ND73PD (shown), ND73RD*, ND73GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Strike 10-025 Inside Lever—Open 03-031 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Standard N123-022 Strike Screw C603-256 Inside Spring Cage—Standard... -
Page 67: Nd75
Trim Assemblies ND-Series Service Manual ND75 Classroom Security Lock ND75PD (shown), ND75RD*, ND75GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Deadlatch 13-047 Inside Lever—Open 03-031 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021 Inside Spring Cage—Keyed Inside except SFIC... -
Page 68: Nd80
ND-Series Service Manual Trim Assemblies ND80 Storeroom Lock ND80PD (shown), ND80RD*, ND80GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Deadlatch 13-047 Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021 Inside Spring Cage—Standard N123-032... -
Page 69: Nd80 Rx
Trim Assemblies ND-Series Service Manual ND80 RX Storeroom Lock with Request-to-Exit ND80PD RX (shown), ND80RD RX, ND80GD RX Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Deadlatch 13-047 Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022... -
Page 70: Nd80El
ND-Series Service Manual Trim Assemblies ND80EL Storeroom Lock—Electrically Locked (Fail Safe) ND80ELPD (shown), ND80ELRD*, ND80ELGD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Electrifi ed Latch Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021... -
Page 71: Nd80El Rx
Trim Assemblies ND-Series Service Manual ND80EL RX Storeroom Lock—Electrically Locked (Fail Safe) with Request-to-Exit ND80ELPD RX (shown), ND80ELRD RX, ND80ELGD RX Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Electrifi ed Latch Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw... -
Page 72: Nd80Eu
ND-Series Service Manual Trim Assemblies ND80EU Storeroom Lock—Electrically Unlocked (Fail Secure) ND80EUPD (shown), ND80EURD*, ND80EUGD*, Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Electrifi ed Latch Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021... -
Page 73: Nd80Eu Rx
Trim Assemblies ND-Series Service Manual ND80EU RX Storeroom Lock—Electrically Unlocked (Fail Secure) with Request-to-Exit ND80EUPD RX (shown), ND80EURD RX, ND80EUGD RX Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Electrifi ed Latch Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw... -
Page 74: Nd82
ND-Series Service Manual Trim Assemblies ND82 Institution Lock ND82PD (shown), ND82RD*, ND82GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Deadlatch 13-047 Inside Lever—Open 03-031 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021 Inside Spring Cage—Keyed Inside except SFIC N123-021... -
Page 75: Nd85
Trim Assemblies ND-Series Service Manual ND85 Faculty Restroom Lock ND85PD Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Strike 10-025 Inside Lever—Open 03-031 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Standard N123-022 Strike Screw C603-256 Inside Spring Cage—Standard N123-032... -
Page 76: Nd91
ND-Series Service Manual Trim Assemblies ND91 Entrance/Offi ce Lock wtih Vandlgard ® ND91PD (shown), ND91RD*, ND91GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Strike 10-025 Inside Lever—Open 03-031 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Standard N123-022 Strike Screw... - Page 77 Trim Assemblies ND-Series Service Manual ND92 Entrance Lock with Vandlgard ® ND92PD (shown), ND92RD*, ND92GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Strike 10-025 Inside Lever—Open 03-031 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Standard N123-022 Strike Screw C603-256...
-
Page 78: Nd93
ND-Series Service Manual Trim Assemblies ND93 Vestibule with Vandlgard ® ND93PD (shown), ND93RD*, ND93GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Deadlatch 13-047 Inside Lever—Open 03-031 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021... -
Page 79: Nd94
Trim Assemblies ND-Series Service Manual ND94 Classroom Lock with Vandlgard ® ND94PD (shown), ND94RD*, ND94GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Dead Latch 13-047 Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021... -
Page 80: Nd95
ND-Series Service Manual Trim Assemblies ND95 Classroom Security Lock with Vandlgard ® ND95PD (shown), ND95RD*, ND95GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Deadlatch 13-047 Inside Lever—Open 03-031 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021... -
Page 81: Nd96
Trim Assemblies ND-Series Service Manual ND96 Storeroom Lock with Vandlgard ® ND96PD (shown), ND96RD*, ND96GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Deadlatch 13-047 Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw C603-897 Outside Spring Cage—Standard N123-022 Mounting Screw N523-021... -
Page 82: Nd96El
ND-Series Service Manual Trim Assemblies ND96EL Storeroom Lock with Vandlgard ® — Electrically Locked (Fail Safe) ND96ELPD (shown), ND96ELRD*, ND96ELGD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Electrifi ed Latch Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw C603-897... - Page 83 Trim Assemblies ND-Series Service Manual ND96EU Storeroom Lock with Vandlgard ® — Electrically Unlocked (Fail Secure) ND96EUPD (shown), ND96EURD*, ND96EUGD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Electrifi ed Latch Inside Lever—Closed 03-030 Strike 10-025 Rose 03-042 Latch Screw C603-897...
-
Page 84: Nd97
ND-Series Service Manual Trim Assemblies ND97 Corridor Lock with Vandlgard ® ND97PD (shown), ND97RD*, ND97GD* Part Part Letter Description Number Letter Description Number Outside Lever—Open 03-031 Strike 10-025 Inside Lever—Open 03-031 Latch Screw C603-897 Rose 03-042 Mounting Screw N523-021 Outside Spring Cage—Standard N123-022 Strike Screw C603-256... -
Page 85: Full Size Ic And Sfic Confi Gurations
Full Size IC and SFIC Confi gurations ND-Series Service Manual Full Size IC and SFIC (Small Format Interchangeable Core) Confi gurations Full Size IC—Outside SFIC—Outside Old Style Old Style IC Driver IC Driver N523-077 N523-118 (Obsolete) (Obsolete) Part Letter Description Number Part Letter... -
Page 86: Lever Designs
ND-Series Service Manual Lever Designs Lever Designs All lever designs are available in fi nishes 605, 606, 612, 613, 619, 625, 626 and 626AM. Closed Levers Open Levers Interchangeable SFIC Levers Core Levers** Athens (ATH) 03-030 ATH 03-031 ATH 03-032 ATH 03-000 ATH A=2³⁄₄”... -
Page 87: Competitor Cylinder Options
Competitor Cylinders ND-Series Service Manual Competitor Cylinder Options Competitor lever designs are available in fi nishes 613, 626 and 626AM. Tactile warning is available. See page 81 for details. Lever Design Cylinder Order Suffi x Description Athens Rhodes Sparta Tubular LD SAR Sargent Key In Lever 03-044-ATH... -
Page 88: Roses
ND-Series Service Manual Roses and Cylinders Roses Inside/Outside Rose—03-042 RHO Omega Inside/Outside Rose—03-042 OME Blank Outside Rose—N523-002 Standard inside/outside Standard inside/outside Outside blank plate rose for use with ATH, rose for use with for use with ND25, SPA or RHO levers. OME levers. -
Page 89: Latches
Latches ND-Series Service Manual Latches All ND-Series latches have 1” diameter housing and adjustable faceplates for fl at or beveled doors. Deadlatch Springlatch Electrifi ed Deadlatch Fire Door Deadlatch 13-047 13-048 13-049 14-042 Backset Description Springlatch Deadlatch Rabbeted Deadlatch and Strike Kit 39-030 Square corner, 1¹⁄₈”... -
Page 90: Reinforcement Kit
ND-Series Service Manual Installation Tools and Kits Reinforcement Kit Reinforcement Kit Placement of 37-001 reinforcement The Schlage 37-001 reinforcement kit is in hollow Extension Link used to reinforce and prevent the collapse metal door. of hollow metal doors when locksets are mounted. -
Page 91: Screws, Screw Packs And Special Parts
Strikes ND-Series Service Manual Strikes Square Corner T-Strike—10-013 Square Corner Fire Door T-Strike—10-016 ANSI Prep. A115.2—10-025 Size: Size: Size: 1¹⁄₈” x 4⁷⁄₈” x ³⁄₃₂” 1¹⁄₈” x 2³⁄₄” x ³⁄₃₂” 1¹⁄₈” x 2³⁄₄” x ³⁄₃₂” Lip Length: Lip Length: Lip Length: 1¹⁄₈”, 1¹⁄₂”... - Page 92 ND-Series Service Manual...
-
Page 93: Standard Installation Instructions
Standard Installation Instructions ND-Series Service Manual ND-Series Standard Installation P515-167 Standard Core Outside Lever Tools for Door Prep Tools for Install 2¹⁄₈" hole saw Phillips screwdriver Drill bits: 1", ⁷⁄₈", ⁵⁄₁₆", ¹⁄₈" Pencil and Chisel ND53 Shown Cylinder Spring Cage Adjustment Plate Chassis Optional 1³⁄₈"... - Page 94 ND-Series Service Manual Standard Installation Instructions C. Mortise Cutout for Latch Using faceplate as a pattern, mortise cutout for latch. (Faceplate should fit flush with door.) Faceplate Mortise ⁵⁄₃₂" (4 mm) deep D. Prepare Door Jamb Mark vertical line and centerline on door jamb exactly opposite 1"...
- Page 95 Standard Installation Instructions ND-Series Service Manual Install Outside Lever and Chassis NOTE: Chassis is factory set for 1³ ₄" (44mm) door. For other door thicknesses, see DOOR THICKNESS ADJUSTMENT section. Hold outside lever assembly in place until Step 5 is complete. FOR 1³⁄₈"...
- Page 96 ND-Series Service Manual Standard Installation Instructions Install Strike 10-025 Strike Install strike and secure with two (2) screws. Strike Screw Check Lock Function Test lock. If a keyed function is not working properly, check the LOCK TIMING section. Lock Timing For Keyed Functions Insert key into cylinder.
- Page 97 Standard Installation Instructions ND-Series Service Manual Keyed Lever Install Lever FOR ND66 INSIDE ONLY: Use flat blade screwdriver to rotate cam clockwise until cam slot is vertical. With cylinder in lever, rotate key 90° and slide lever onto spindle. Remove Lever FOR ND40 AND N44: Push in privacy button to lock lockset.
-
Page 98: Nd25 Installation Instructions
ND-Series Service Manual ND25 Installation Instructions ND25 Exit Lock P515-168 Adjustment Plate Chassis Tools for Door Prep Tools for Install 2¹⁄₈" hole saw Phillips screwdriver Anti-Rotation Plate Drill bits: 1", ⁵⁄₁₆", ¹⁄₈" Blank Plate Pencil and Chisel Mounting Screws (2) Strike Screws (2) Rose Latch... - Page 99 ND25 Installation Instructions ND-Series Service Manual Lock Installation Chassis Remove Assembly From Box Leave blank plate and chassis together. Remove inside lever by inserting pin wrench into hole and depressing lever catch. Pull lever straight off. Remove inside trim parts as shown. Blank Plate Pin Wrench Install Latch...
- Page 100 ND-Series Service Manual ND25 Installation Instructions Install Rose Align dimples in rose with grooves in spring cage. Place rose flush against door and rotate clockwise until tight. Groove Dimple Install Lever Push lever onto spindle until lever catch engages with lever. Lever Catch 10-025 Strike Install Strike...
-
Page 101: Nd170 Installation Instructions
ND170 Installation Instructions ND-Series Service Manual P515-169 ND170 Dummy Lock Spring Cage Mounting Screw Tools For Install Tools for Door Prep Drill bits: ³⁄₈" and ¹⁄₈" Phillips screwdriver Pencil Rose Washer Lever Spring Cage Screws (2) Old Style Pin Wrench Pin Wrench Door Preparation A. - Page 102 ND-Series Service Manual ND170 Installation Instructions Install Mounting Screw and Washer Insert mounting screw through washer and into hole in door. Washer Tighten until screw head is flush with washer. Mounting Screw Install Rose Align dimples on rose with grooves on spring cage. Place rose against the door and rotate rose clockwise until it no longer turns.
-
Page 103: Electrifi Ed And Rx Installation
Electrifi ed and RX Installation Instructions ND-Series Service Manual ND-Series P515-185 Electrified Functions For standard installation, see full instruction sheet. Electrical Requirements Amps .35; Volts 24 AC. Amps .15; Volts 24 DC. Operation Temperature: +140°F to -22°F All power requirements shown are for single lock operation. -
Page 104: Templates
ND-Series Service Manual Templates P515-170 For RX Function Only LH Door ND-Series Lever Lock 1³⁄₄" Door ⁵⁄₁₆" (8mm) ¹⁄₈" (3mm) Holes ⁷⁄₈" (22mm) Holes Hole ¹¹₁₆" 2¹⁄₈" (54mm) (17mm) Hole 1" (25mm) 2³⁄₄" (70mm) BACKSET Hole RX Function Only RH Door P515-182 For RX Function Only LH Door... - Page 105 Templates ND-Series Service Manual 1³⁄₈" (35mm) ¹³⁄₁₆" ¹³⁄₁₆" (20mm) (20mm) Low Edge Flat (No Bevel) High Edge...
- Page 106 ND-Series Service Manual Templates P515-184 ND-Series ND170 Lever Template ¹⁄₈" (3mm) Holes ³⁄₄ ³⁄₈" (10mm) 2 " (70mm) BACKSET Hole...
-
Page 107: Finishes
Finishes ND-Series Service Manual Finishes Schlage Lock fi nishes are durable, top quality fi nishes obtained by the careful processing of solid brass, bronze, stainless steel, or other materials. Where required, a protective clear coating is applied and cured under high temperature. It is important that the climatic conditions and usage be taken into consideration when selecting fi... -
Page 108: Limited Warranty
ND-Series Service Manual Limited Warranty Limited Warranty PRODUCT WARRANTY: COMMERCIAL APPLICATIONS Limited Warranty Schlage Lock Company, LLC (the “Company”) extends a three-year limited warranty to the original user of the products manufactured by the Company (the “Products”) against defects in material and workmanship from the date of purchase. Certain Products contain restrictions to this limited warranty, additional warranties or different warranty periods. - Page 109 Notes ND-Series Service Manual...
- Page 110 877.671.7011 www.schlage.com www.ingersollrand.com © 2007 Ingersoll-Rand Company Limited MS-C62 Rev. 10/07 Printed in U.S.A. © 2011 Ingersoll Rand SC-2058 Rev.3/11...
