IMPORTANT: This procedure is to be performed by
authorized personnel only.
Tools Required
For Lock Installation
Phillips screwdriver
Spanner wrench
Tamper resistant screw tool (if required)
ESD wrist strap
Small flat-head screwdriver (optional)
Remove Inside Trim
CAUTION: After the inside escutcheon screws are removed,
the escutcheon will become loose. DO NOT allow the
electronics escutcheon to hang by the Y-cable. Hold the
escutcheon to ensure the wires are not pulled.

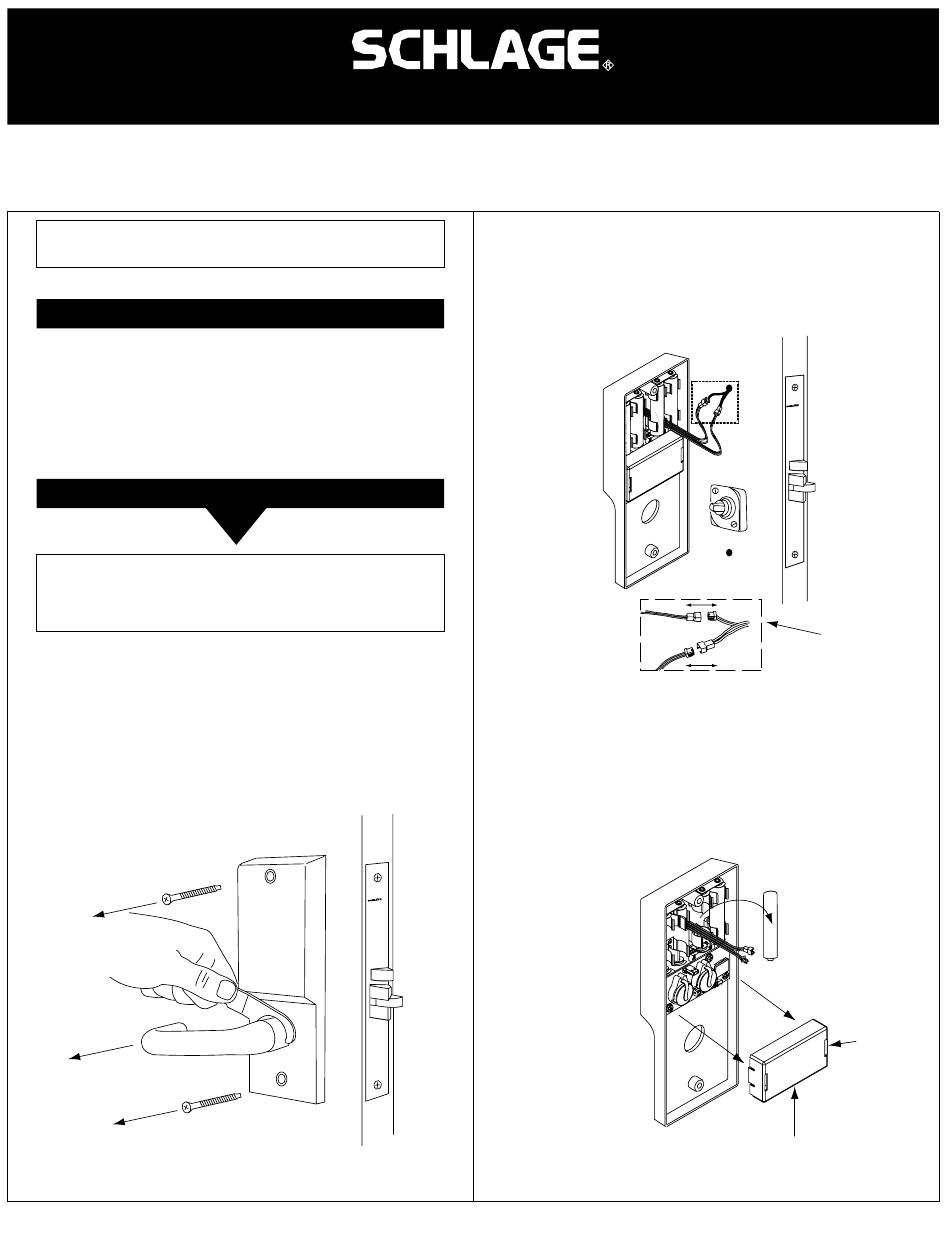

1. Remove INSIDE LEVER and ESCUTCHEON
SCREWS.
a.
Using a spanner wrench, loosen the lever bushing
and remove the lever from the inside escutcheon.
b.
Using a Phillips screwdriver, remove the two (2)
escutcheon screws.
Upgrade Instructions
e.PRIMUS
Heavy Duty Mortise Lock
1
Le-Series
®
2. Disconnect the Y-CABLE.
Disconnect the motor and target wires from the Y-cable by
grasping the wire connectors and NOT the actual wires. If
the wires are not easily separated, use the tip of a small,
flat-head screwdriver to release the connector snaps.
3. Remove the four (4) AA BATTERIES
4. Remove ELECTRONICS COVER.
a.
Place the tip of a small, flat-head screwdriver into the
battery cover slot.
b.
Twist the screwdriver to release the side clips.
Y-Cable
Slot
Electronics Cover

Advertisement

loading
Need help?

Need help?

Do you have a question about the Schlage e.PRIMUS Le Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ingersoll-Rand Schlage e.PRIMUS Le Series

  • Page 1 Upgrade Instructions e.PRIMUS Le-Series ® Heavy Duty Mortise Lock 2. Disconnect the Y-CABLE. IMPORTANT: This procedure is to be performed by Disconnect the motor and target wires from the Y-cable by authorized personnel only. grasping the wire connectors and NOT the actual wires. If the wires are not easily separated, use the tip of a small, flat-head screwdriver to release the connector snaps.
  • Page 2 2. Reconnect TARGET and MOTOR wires to the Upgrade Lock Y-cable. Connect the target wire (violet wire) to the violet side of the Y-cable. IMPORTANT: DO NOT handle the circuit board Connect the motor wire (red wire) to the red side of unless you are wearing the wrist strap included in the the Y-cable.
