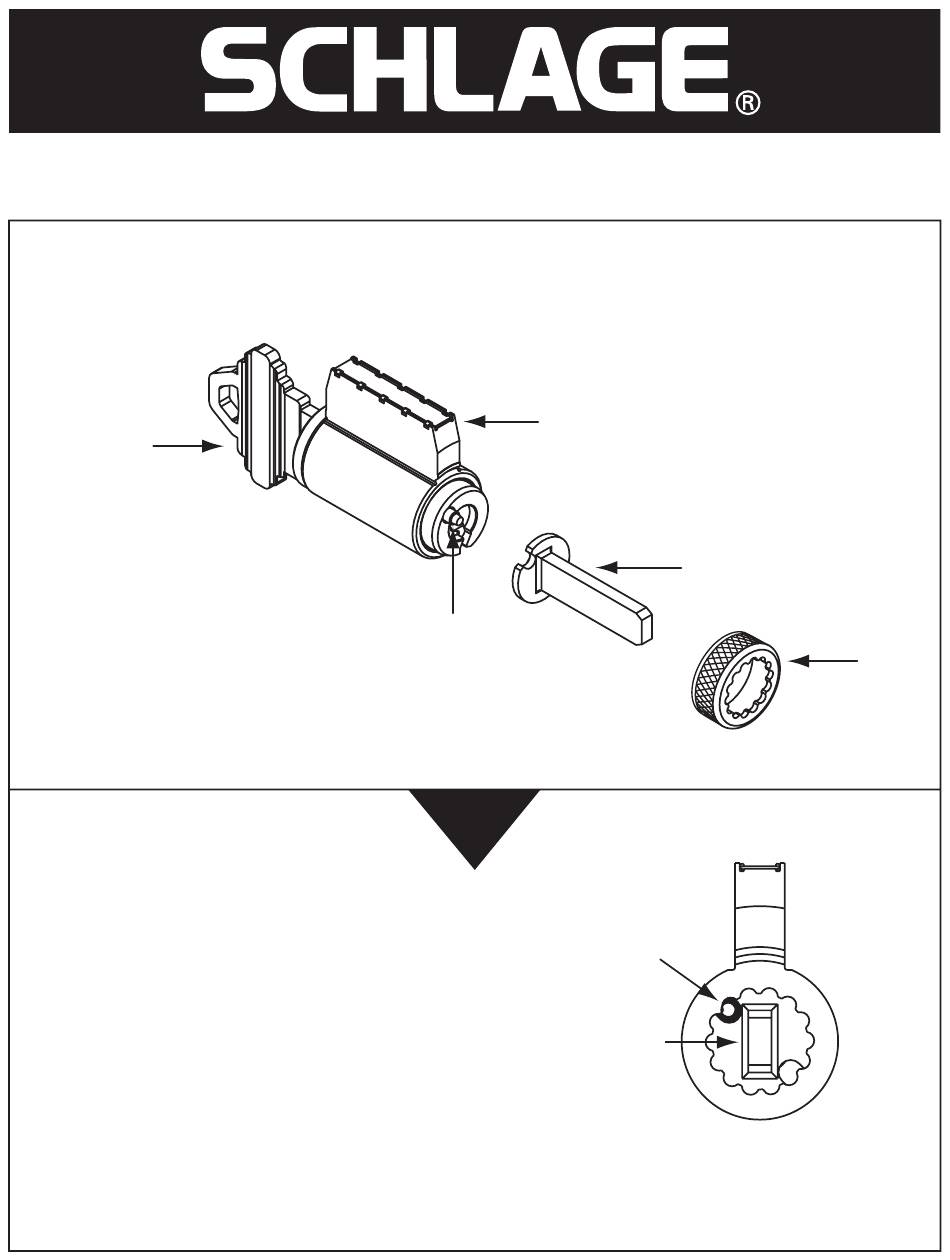

ND-Series Tailpiece Install Sheet
Use this sheet and the included tailpieces to retrofit an existing
cylinder with an ND-Series tailpiece.
Key
Remove Cylinder Cap
a.
Depress cap pin and rotate
cap counterclockwise.
b.
Remove cap from cylinder.
c.
Remove existing tailpiece.
Cylinder
Cap Pin
1
Cap Pin
Tailpiece
Tailpiece
(N523-023 shown)
View of Back of Cylinder
Classic Cylinder Shown
Cap
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ingersoll-Rand Schlage ND Series
Summary of Contents for Ingersoll-Rand Schlage ND Series
- Page 1 ND-Series Tailpiece Install Sheet Use this sheet and the included tailpieces to retrofit an existing cylinder with an ND-Series tailpiece. Cylinder Tailpiece (N523-023 shown) Cap Pin View of Back of Cylinder Remove Cylinder Cap Depress cap pin and rotate cap counterclockwise. Cap Pin Remove cap from cylinder.
- Page 2 Classic Cylinder Shown IMPORTANT If key does not come out of cylinder easily, cap is too lose. If key does not turn smoothly in cylinder, cap is too tight. ©2003 Ingersoll-Rand Company Printed in U.S.A. Rev. 06/03...
