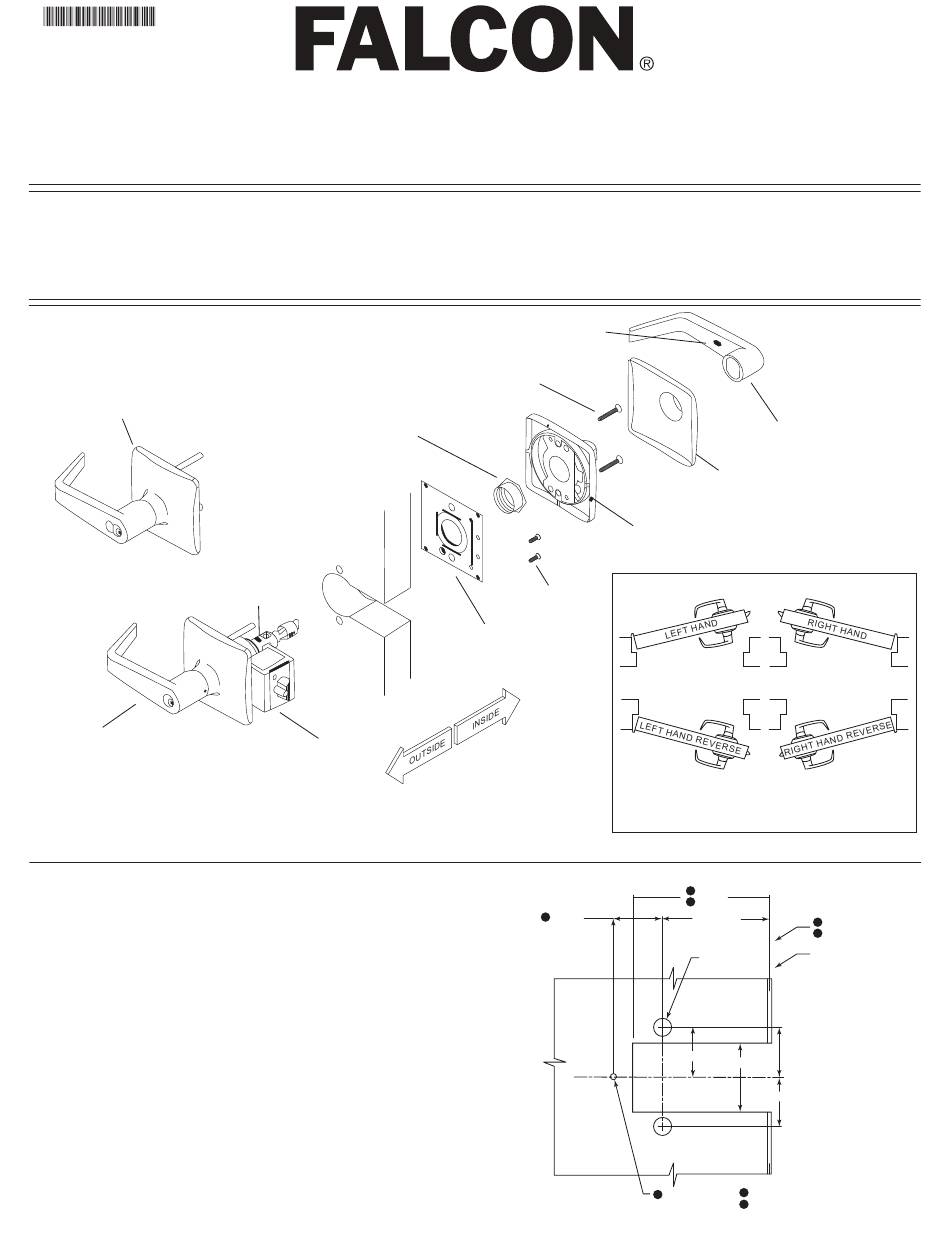

INSTALLATION INSTRUCTIONS FOR RU–SERIES
RETROFIT EXTRA HEAVY DUTY UNIT LEVER LOCKSET
IMPORTANT:
THE LOCK IS FACTORY HANDED FOR USE ON RIGHT HAND (RH) OR LEFT HAND (LH) DOORS. SEE
STEP 9 FOR FIELD REVERSING THE LOCK TO RHR OR LHR DOORS. FOR FUNCTIONS RU371, RU381,
RU561 & RU571, SEE STEP 14 FOR STD CYLINDER & STEP 15 FOR IC CORE TIMING INSTRUCTIONS.
Outer Trim Assembly
Interchangeable Core Cylinder
Chassis Assembly
Outer Trim Assembly
Standard Cylinder
LEFT HAND REVERSE SHOWN
STEP 1
EXAMINE DOOR PREPARATION AND HANDING
These instructions are applicable to the two most common door prepa-
rations – Yale Mono Lock and Corbin Russwin Unilock – as shown in
the illustration on the right. If your door preparation is different, S
You need to contact the factory for instructions specifically for your
door preparation.
STOP! Ensure that the lock handing matches the door handing and
bevel. If it does not match, refer to Step 9 before continuing.
THIS LOCK IS FOR 1-3/4" (45MM) THICK DOORS ONLY.
Flange Nut
Latch Assembly
Set Screw
1/4-20 x 1/4"
Mounting Screws
#10-32 x 1"
Inner Trim
Assembly
Latch Mounting Screws
#8-32 x 1/2"
Inner Mounting
Plate
1-1/4"
1
!
TOP
Inner Lever
Rose
INSIDE
OUTSIDE
DOOR HANDS DETERMINED FROM OUTSIDE
3-1/2"
1
2
3-5/8"
2-3/4"
1
Backset
2
Beveled
7/16" Thru
1/8" in 2"
2 Plcs
1-1/4"
1-3/4"
2-1/2"
Applies to Yale Mono Lock
1
5/32" Dia
1
Applies to Corbin Russwin Unilock
2
C L of Door
Low Side of Bevel
