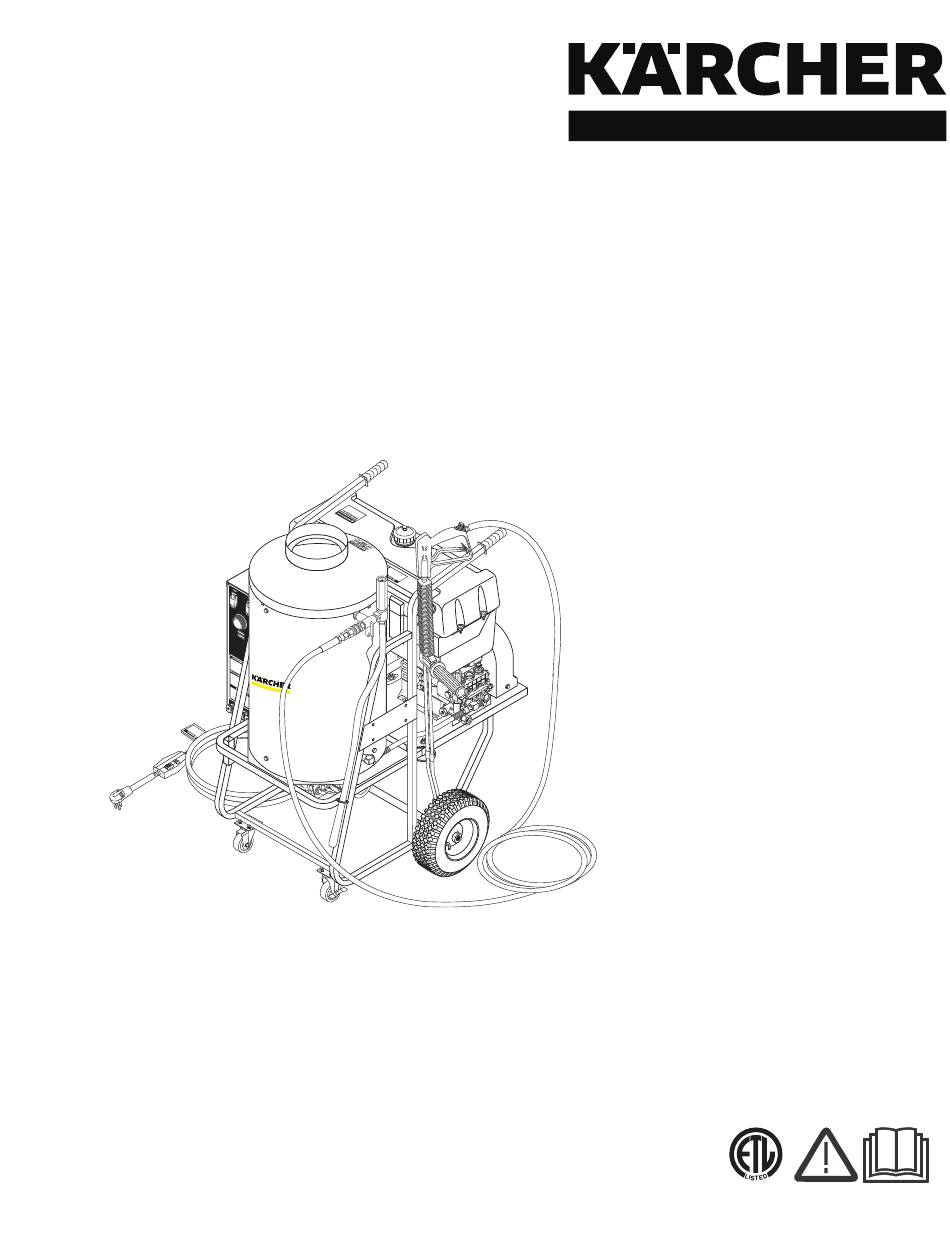

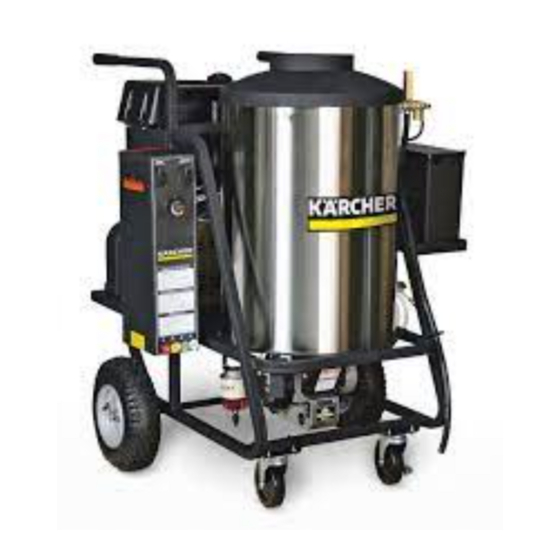

- Page 1 Operator’s Manual Pressure Washer MODELS: HPB-392007A 1.109-109.0 HPB-353007A 1.109-110.0 HPB-353007B 1.109-111.0 HPB-353007C 1.109-112.0 98011900-1 To locate your local Kärcher Commercial Pressure Washer Dealer nearest you, visit www.karchercommercial.com ® 9.801-190.0 - W 03/22/19...
- Page 2 Parts Parts 1.109-109.0 HPB-392007A 1.109-110.0 HPB-353007A 1.109-111.0 HPB-353007B 1.109-112.0 HPB-353007C Kärcher HPB Series Operator’s Manual 9.801-190.0 - W...
-
Page 3: Main Assembly
Main Assembly 18, 29, 84, 87 27, 41, 71 86, 69 Detail See Control Panel 75, 26 Illus. Detail See Pump Illus. Detail See Steam Valve Options Illus. Detail See Optional To Fuel Float Tank Tank Illus. t e r 98011900-25 F i l Kärcher HPB Series Operator’s Manual 9.801-190.0 - W... - Page 4 Main Assembly PART NO. DESCRIPTION NOTES 8.932-960.0 LABEL, DIESEL 9.800-006.0 LABEL, "HOT/CALIENTE" WITH ARROWS WARNING 8.932-969.0 LABEL, WARNING, SERVICE CORD 9.800-021.0 LABEL, HOT WATER OUTLET 8.932-985.0 LABEL, KARCHER, STRIPE, 17" x 3.875" 9.800-035.0 LABEL, WARNING (LEXAN) 9.802-272.0 WHEEL, 5" CASTER 9.802-070.0 GRIP, 1"...
- Page 5 Main Assembly PART NO. DESCRIPTION NOTES 9.802-273.0 WHEEL, 5" CASTER, W/BRAKE 9.802-789.0 NUT, 3/8" HEX 8.719-935.0 RETAINER RING, INSULATION 9.196-012.0 SCREW, 10-24 X 1/4" 8.711-785.0 30" HOSE, 3/8" PUSH-ON 8.725-306.0 FILTER, FUEL/H2O 9.802-781.0 NUT, 3/8" FLANGE, WHIZ LOC 9.803-264.0 NIPPLE, 1/4" X 3", BLACK PIPE 9.802-810.0 WASHER, 5/8"...
- Page 6 Main Assembly PART NO. DESCRIPTION NOTES 9.802-254.0 28" FUEL LINE, 1/4" 8.709-069.0 CLAMP, SCREW, 5/16"W,1/4-5/8"D, SS 9.802-775.0 NUT 1/4" FLANGE ZN 9.804-082.0 WASHER, 1/4" FLAT ZINC 9.802-254.0 28" FUEL LINE, 1/4" 9.802-448.0 2.25 ft. CONDUIT, WATER TITE 9.802-517.0 CONNECTOR 1/2" L/T 90° BLACK 9.802-765.0 SCREW, 1/4-20 X 1/2"...
-
Page 7: Control Panel
Control Panel 35, 36 2, 8 Kärcher HPB Series Operator’s Manual 9.801-190.0 - W... - Page 8 Control Panel PART NO. DESCRIPTION NOTES 9.802-451.0 SWITCH, ROCKER, CARLING W/GREEN LENS SWITCH, ROCKER, CARLING W/GREEN LENS TIME DELAY OPTION 9.802-452.0 ROCKER SWITCH, RED LENS TIME DELAY OPTION 9.802-447.0 48" CONDUIT, 1/4" SPLIT FOR FUSE, PLEASE SEE SPECIFICATIONS PAGES. FOR FUSE, PLEASE SEE SPECIFICATIONS PAGES. FOR TRANSFORMER, PLEASE SEE SPECIFICATIONS PAGES.
- Page 9 Control Panel PART NO. DESCRIPTION NOTES 9.800-049.0 LABEL, CLEANING SOLUTION 9.196.012.0 SCREW, 10/24 X 1/4" HEX 9.802-457.0 4" DIN RAIL 2" DIN RAIL TIME DELAY OPTION AUTO START/STOP, 9.802-491.0 BLOCK TERMINAL 4 POLE TIME DELAY OPTION AUTO START/STOP 9.802-472.0 TIMER SOLID STATE 120V, 5-60, MINUTE ADJ. OPTION AUTO START/STOP, 9.802-749.0...
- Page 10 Auto Start/Stop Option PART NO. DESCRIPTION NOTES 9.802-146.0 SWIVEL, 1/2" MP X 3/4" GHF W/STRAINER 8.706-844.0 TEE, 1/2" FEMALE PIPE 8.706-797.0 NIPPLE, 1/2" HEX 9.802-127.0 NIPPLE, 1/2" JIC X 1/2" MPT PIPE 9.802-151.0 SWIVEL, 1/2" JIC FEM, PUSH-ON 9.802-259.0 16" HOSE, 1/2"...
-
Page 11: Float Tank
Float Tank Steam Option 1, 8 To Float To Float Tank Auto Start/Stop Auto Start/Stop Tank Option Steam Option Kärcher HPB Series Operator’s Manual 9.801-190.0 - W... - Page 12 Float Tank PART NO. DESCRIPTION NOTES 8.706-645.0 TANK, FLOAT 9.803-269.0 SHELF, FLOAT TANK, BLACK 9.802-767.0 SCREW, 3/8" X 3/4" HH NC, WHIZ LOC 9.802-039.0 ELBOW, 1/2" JIC X 3/8" FEMALE, 90° 9.803-277.0 SCREW, 5/16" X 1/2" WHIZ LOC 9.802-259.0 20" HOSE, 5/8", PUSH-ON 9.802-201.0 CLAMP, SCREW, #6...
- Page 13 Float Tank PART NO. DESCRIPTION NOTES 9.802-695.0 NUT, 10/32" KEPS 8.706-855.0 TEE, 1/4" STREET 8.706-797.0 NIPPLE, 1/2" HEX 9.802-119.0 CROSS, 1/2" FEMALE 8.706-915.0 BUSHING, 1/2" X 1/4" 9.802-128.0 NIPPLE, 1/2" JIC X 1/2" PIPE 9.802-151.0 SWIVEL, 1/2" JIC FEMALE, PUSH-ON 9.802-259.0 16"...
-
Page 14: Pump Assembly
Pump Assembly PART NO. DESCRIPTION NOTES 8.707-256.0 PUMP PROTECTOR, 1/2" 9.802-458.0 PRESSURE SWITCH, 1/4" 9.802-039.0 ELBOW, 1/2" JIC X 3/8", 90° 9.802-146.0 SWIVEL, 1/2" GHF FOR UNLOADER, PLEASE SEE SPECIFICATIONS PAGES FOR PUMP, PLEASE SEE SPECIFICATIONS PAGES 9.802-632.0 CAP, VALVE W/1/4" PORT 8.706-864.0 PLUG, 1/8"... - Page 15 Auto Start/Stop Steam Option Kärcher HPB Series Operator’s Manual 9.801-190.0 - W...
- Page 16 Auto Start/Stop Steam Option PART NO. DESCRIPTION NOTES 8.918-423.0 HOSE, 3/8" X 22" PRESSURE LOOP 9.802-146.0 SWIVEL, 1/2 X 3/4 GHF W/STRAINER 9.802-123.0 TEE, 1/2" W/1/8" HOLE STREET 9.802-131.0 ELBOW, 1/2" JIC X 1/2 - 90° 9.802-142.0 HOSE BARB, 1/4 BARB X 1/8" PIPE 90° 9.802-151.0 SWIVEL, 1/2"...
-
Page 17: Steam Option
Steam Option PART NO. DESCRIPTION NOTES 9.802-143.0 HOSE BARB, 1/4" BARB X 1/4" PIPE, 90° 6.390-126.0 CLAMP, HOSE, .46-, .54 ST 9.802-187.0 VALVE, FLOW CONTROL W/METERING 9.802-010.0 NIPPLE, 1/4" HEX STEEL 9.802-632.0 CAP, VALVE WITH 1/4" GAUGE PORT 9.802-459.0 SWITCH, MV-60 FLOW 9.802-146.0 SWIVEL, 1/2"... -
Page 18: Hose & Spray Gun
Hose & Spray Gun Pressure Nozzle PART NO. DESCRIPTION NOTES 9.802-165.0 COUPLER, 1/4" MALE 9.802-096.0 QUICK COUPLER O-RING, SMALL 9.802-286.0 NOZZLE ONLY, 1/8" SOAP 9.802-222.0 WAND, ZINC, VP, W/COUPLER 8.917-057.0 HOSE, 3/8" X 50' 1 WIRE, 8.710-384.0 GUN, ST-1500, 5000 PSI 10.4 GPM 9.802-225.0 DETERGENT INJECTOR, NON ADJUST #3 9.802-160.0... -
Page 19: Uu1 Unloader Valve
UU1 Unloader Valve Kärcher HPB Series Operator’s Manual 9.801-190.0 - W... - Page 20 UU1 Unloader Valve PART NO. DESCRIPTION NOTES PISTON HOUSING PISTON 8.749-795.0 PISTON O-RING BACK UP 8.749-796.0 MAIN BLOCK 9.152-372.0 PISTON RING BALL SEAT O-RING, 10.5 ID X 1.5 CS PLUNGER 9.152-016.0 PLUNGER HOUSING BYPASS SPRING 9.149-001.0 LOW PRESSURE PORT 9.152-017.0 SLIDING CONNECTOR, 30 MM 8.762-005.0 SLIDING CONNECTOR, 40 MM...
-
Page 21: Wayne Burner
Wayne Burner Kärcher HPB Series Operator’s Manual 9.801-190.0 - W... - Page 22 Wayne Burner PART NO. DESCRIPTION NOTES 8.756-263.0 MOTOR, BURNER, 1/5 120V 50-60HZ 8.756-294.0 MOTOR, BURNER, 1/5 230V 50-60HZ 13121 MOTOR CORD COVER 8.700-730.0 BLOWER WHEEL, 5-.25' x 3-7/16(307000) 8.700-735.0 BURNER HOUSING EHASR 8.700-802.0 IGNITOR, 120V, SIDE/EH-EHA MOUNT 8.756-291.0 IGNITOR, BURNER, "E" 240 50-60 8.756-742.0 JUNCTION BOX, EHASR, BLACK BODY 8.756-741.0...
-
Page 23: Km.3 Series Pump
KM.3 Series Pump 8.751-189.0 KM4035R.3 TORQUE SPECS Item # Ft.-lbs PART NO. DESCRIPTION NOTES 8.751-216.0 CRANKCASE PLUNGER OIL SEAL SEE KITS TABLE O-RING Ø1.78 X 31.47 SEE KITS TABLE PRESSURE RING SEE KITS TABLE U-SEAL SEE KITS TABLE INTERMEDIATE RING SEE KITS TABLE U-SEAL SEE KITS TABLE... - Page 24 KM.3 Series Pump PART NO. DESCRIPTION NOTES 9.803-192.0 O-RING Ø1.78 X 60.05 8.933-011.0 TAPERED ROLLER BEARING 8.751-222.0 CRANKSHAFT (5030,3540) 8.751-223.0 CRANKSHAFT (4030, 4035) 9.803-167.0 CRANKSHAFT KEY 9.802-921.0 OIL DIP STICK 9.803-140.0 CRANKSHAFT SEAL 9.803-178.0 SHIM 8.717-209.0 BEARING HOUSING PLUNGER NUT, M8 SEE KITS TABLE COPPER SPACER SEE KITS TABLE...
-
Page 25: Specifications
Specifications Pump Unloader Unloader Machine 1.# Pump Model Pump Part # Pulley Pulley Part # Replacement Production 1.109-109.0 KM-4035 8.751-189.0 9.175-018.0 9.175-016.0 2AK74H 9.802-374.0 1.109-110.0 KM-4035 8.751-189.0 9.175-018.0 9.175-016.0 2BK80H 9.802-389.0 1.109-111.0 KM-4035 8.751-189.0 9.175-018.0 9.175-016.0 2BK80H 9.802-389.0 1.109-112.0 KM-4035 8.751-189.0 9.175-018.0 9.175-016.0... - Page 26 Specifications Oil Fired Burner Fuel Nozzle w/ Machine 1.# Burner Assy # 100 PSI Check Valve 1.109-109.0 8.756-737.0 8.755-763.0 1.109-110.0 8.756-737.0 8.755-763.0 1.109-111.0 8.756-737.0 8.755-763.0 1.109-112.0 8.756-738.0 8.755-763.0 Replacement Parts for 8.756-737.0 Part # Description CONNECTOR, LEVER NUT, 2- 8.756-409.0 WIRES CONNECTOR, LEVER NUT, 3- 8.756-410.0...
