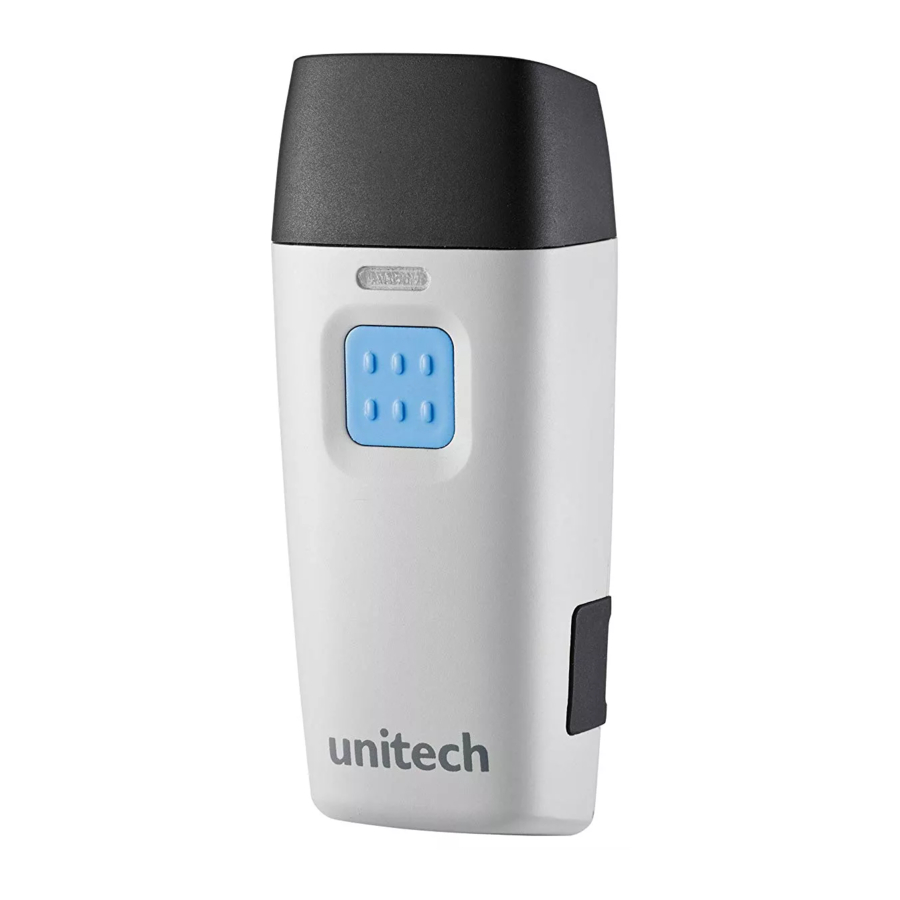

Unitech MS912 - Pocket Scanner Quick Start Guide

STEP 1: CONNECT AND CHARGE

Flip the rubber cover up to expose the mini USB port on the scanner. Insert the mini USB cable into the port on the scanner and into the port on the host computer. Charge for at least 5 hours.

STEP 2: ENABLE PAIRING ON MS912

Enable Simple Pairing

Scan here to begin Simple Pairing.

STEP 3: ENABLE BLUETOOTH ON HOST

Go to your device (phone/tablet/computer) settings and turn on the Bluetooth function.

The MS912M will appear on your device as "Wireless Scanner" or simply "Wireless"

Select/Press "Wireless Scanner"

If you have Bluetooth 2.1, "Wireless Scanner" will now appear as paired. Your device is now paired with the MS912.

*If your device does not pair automatically continue to step 4*

STEP 4: HID MODE

Bluetooth Mode: HID

Scan here to continue the pairing process between your mobile device and the MS912.

STEP 5: FINISH PAIRING

The MS912M will appear on your device as "Wireless Scanner" or simply "Wireless"

Select/Press "Wireless Scanner"

Your device is now paired with the MS912.

*If prompted to enter a pincode to finish the pairing process, proceed to steps 6-9*

STEP 6: PINCODE START

Pincode Start

Scan here to indicate the beginning of the pincode sequence.

STEP 7: NUMERIC BARCODES

Scan the pincode sequence provided by your device using these barcodes.

STEP 8: FINISH PAIRING

Enter

Scan to indicate the end of the pincode sequence.

STEP 9: PINCODE STOP

Pincode Stop

Scan to submit the pincode sequence. Your host device is now paired with the MS912.

MS912 ADDITIONAL OPTIONS

TEST & FINISH

Open a word processing program such as Microsoft Word or Notepad on your host. Now scan the following barcode:

If the word "Unitech" appears on the screen you have successfully installed your scanner. Congratulations!

SETTINGS AND CONFIGURATION

The following section covers the most common configuration settings for your MS912 scanner.

For additional configuration options please visit unitechscanners.com/MS912 and select the "Download" tab. You will find the User's Manual and a variety of other resources.

SWITCH TO BATCH MODE

Enable Batch

Scan here to switch from Bluetooth Mode to Batch Mode. Data will now be stored in the internal memory of the MS912 and the MS912 will no longer transmit data via Bluetooth.

TRANSFER DATA

Transfer Data

Scan here to send data from the MS920 to your host device after collecting the data in Batch Mode.

SWITCH TO BLUETOOTH MODE

Bluetooth Mode

Scan here to switch back to Bluetooth Mode. You can now pair the MS912 with a host.

DELETE DATA

Clear all data

Scan here if you wish to erase the data stored on your MS912. Please keep in mind that this process is irreversible.

TOGGLE KEYBOARD FOR APPLE IPHONES

Enable Hot Keys

1. Scan Here.
2. Double tap the scan button on your MS912 to show the keyboard on your smartphone.
3. Double tap the scan button to hide the keyboard.

DISABLE KEYBOARD

Disable Hot Keys

Scan here to disable the toggle keyboard function.

GOOD READ / BAD READ

HOW CAN WE HELP YOU?

The MS912 should be recognized as a generic HID device by your host device, similar to a standard keyboard. This allows you to scan into any field that you could normally type into.

Unitech's professional support team is available to quickly answer questions or technical-related issues. Should equipment issues occur, please contact a Unitech Service Representative at (800) 861-8648 for more information.
