Unitech MS912+ Quick Start Manual

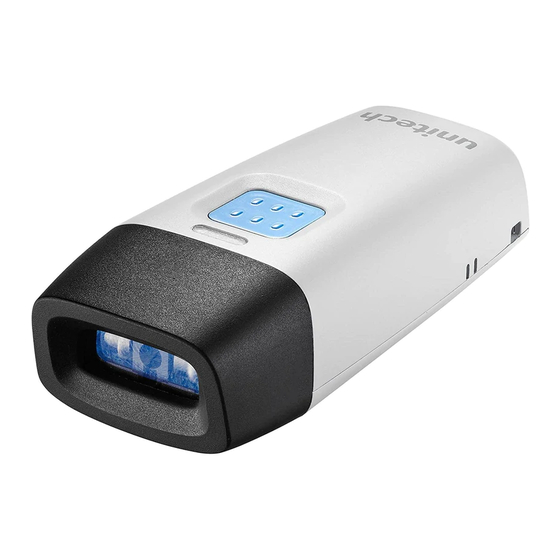

Wireless pocket 2d scanner
Hide thumbs Also See for MS912+:
Table of Contents

Advertisement

Quick Links

Download this manual
MS912
Wireless
+
Pocket 2D Scanner
Quick Guide
For more detailed scanner setting,
please go to www.ute.com to
download the user manual and scanner
configuration manager utility.
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS912+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unitech MS912+

Summary of Contents for Unitech MS912+

  • Page 1 MS912 Wireless Pocket 2D Scanner Quick Guide For more detailed scanner setting, please go to www.ute.com to download the user manual and scanner configuration manager utility. Version 1.0...

  • Page 2: Specifications

    OUT OF THE BOX INTRODUCTION 2. Trigger 3. LED Indicator 4. Exit Window Wireless Pocket 1. Type-C USB port 2D Scanner 5. Hard Reset Button SPECIFICATIONS (insert pin into the hole) Sensor 640 x 480 Resolution 5mil (1D) / 10mil (2D) Memory Indicator LED, Buzzer...

  • Page 3: Getting Started

    BEEPER INDICATION GETTING STARTED Single long beep Power up Single beep Good read   Single short beep The scanner reads a Code39 of ASCII in configuration procedure Two beeps i. Wireless connection ii. The scanner successfully reads a configuration barcode ...
  • Page 4 INTERFACE INTERFACE There are 5 interfaces for data transmission/collection: . E043$ BT HID 1. BT HID - Emulates a Bluetooth HID keyboard that transmits each barcode data to the host after decode. (See page 7) 2. BT SPP - Emulates a Bluetooth SPP device that transmits .

  • Page 5: Getting Connected

    GETTING CONNECTED PINCODE SETUP There are two modes of wireless communication: . E043$ STEP 1 . E032$ [ Recommended ] BT mode - HID Pincode Start 1. Press the trigger for 1 second to activate the scanner. 2. Scan [DISCONNECT] STEP 2 3.

  • Page 6: Numeric Bar Codes

    NUMERIC BARCODES - 9 - - 10 -...
  • Page 7 SMARTPHONE/TABLET CONNECTION SMARTPHONE/TABLET TOUCH KEYBOARD Getting Connected - iOS & Android Touch Keyboard - iOS 1. Press the trigger for 1 second to power up the scanner. . E047$ 2. Scan below configuration barcode to clear last pairing record. . E031$ ENABLE iOS HOTKEY Disconnect After enabling iOS Hotkey(enabled by default), you may simply...
  • Page 8 POWER OFF TIMEOUT BINARY CHECK CHARACTER The period of inactivity before auto power-off. . E029$ Variable Timeout ENABLE . B030$ . E030$ SET MINUTE (Range: 00 ~ 60) DISABLE . B029$ SET SECOND Once enabled, a checksum will be added to the end of each data to conduct Xor calculation.
  • Page 9 GENERAL SETTINGS READING MODE . A001$ . F002$ TRIGGER DEFAULT . P023$ . F007$ ABORT AUTO-SENSING . A007$ . F005$ CHECK CONTINUOUS VERSION BEEP MODE . F023$ NORMAL . F024$ MUTE - 15 - - 16 -...
  • Page 10 KEYBOARD LAYOUT . C009$ . C010$ ENGLISH JAPAN (USA) (106 key) . C018$ . C025$ ENGLISH CANADIAN (UK) (FRENCH) . C012$ . C034$ CANADIAN FRENCH (TRADITIONAL) . C029$ . C011$ GERMAN NORWEGIAN . C026$ . C014$ ITALIAN SWEDISH . C031$ .
  • Page 11 KEYBOARD LAYOUT . C030$ . C017$ CZECH BELGIAN (QWERTY) (AZERTY) . C028$ . C022$ CZECH DUTCH (QWERTZ) . C027$ . C021$ HUNGARIAN DANISH (QWERTZ) . C024$ . C032$ HUNGARIAN SLOVAK (101 KEY) . C033$ . C016$ SWISS BRAZILIAN (GERMAN) (PORTUGUESE) .

  • Page 12: Caps Lock On

    ENABLE/DISABLE SYMBOLOGIES INVERSE BARCODE . D021$ . A002$ DISABLE ENABLE INVERSE BARCODE ALL CODE . G036$ . D022$ ENABLE ALL ENABLE 1D CODE INVERSE BARCODE . G038$ CAPSLOCK ENABLE ALL 2D CODE . A005$ . A003$ CAPSLOCK OFF DISABLE ALL CODE .

  • Page 13: Memory Mode

    TERMINATOR MEMORY MODE . D012$ . C035$ Memory Mode . D011$ After scanning the above barcode, the scanner will be able to collect barcode data off-line. The barcode data will be stored in the format of: < Date >, < Time >, < Barcode Data > < CR > To retrieve stored data, please connect the scanner to the host with cable, .
  • Page 14 MEMORY MODE MEMORY MODE . R006$ . R011$ SET DATE DATA FORMAT The default Data Format is <Date>, <Time>, <Barcode Data> Example: To set Date to 2022-08-01 (Year-Month-Day): below are all items available for display and their codes: 1. Scan [Set Date] 2.
  • Page 15 MEMORY MODE MEMORY MODE . R008$ . R009$ DATE FORMAT TIME FORMAT The default Date Format is DD/MM/YYYY (Code = 09), below The default Time Format is HH:MM:SS (Code = 01), below is full list of available formats and their setup codes: are available formats and their setup codes: Code Format...
  • Page 16 QUANTITY QUANTITY . R017$ . R018$ DISABLE QUANTITY INPUT ENABLE QUANTITY INPUT When quantity input is disabled, the operation procedure under When quantity input is enabled, the operation procedure under memory mode will be: memory mode will be: 1. Scan [MEMORY MODE] (page 24) 1.
  • Page 17 QR Code Micro QR Code PDF417 Data Matrix Aztec - 31 - - 32 -...
