ARDHEA EVO5 – ARDHEA-F EVO5
ITA - MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE.
FRA - MANUEL D'INSTALLATION, D'UTILISATION ET D'ENTRETIEN.
ENG - INSTALLATION, USE AND MAINTENANCE GUIDE.
DEU - INSTALLATIONS-, BETRIEBS- UND WARTUNGSANLEITUNG.
ESP - MANUAL DE INSTALACIÓN USO Y MANTENIMIENTO.
ITA – Informazioni importanti per la sicurezza ed il corretto funzionamento.
FRA – À lire impérativement! Informations importantes pour la sécurité et le bon fonctionnement.
ENG - Must read! Important information for safety and correct operation.
DEU - Unbedingt lesen! Wichtige Informationen zur Sicherheit und zum sicheren Betrieb.
ESP - ¡Leer! Informaciones importantes para la seguridad y el correcto funcionamiento.
Installation, use and maintenance guide
ARDHEA EVO5 – ARDHEA-F EVO5
ENG
Page 0
Advertisement
Table of Contents
Related Manuals for THERMOROSSI ARDHEA EVO5
Summary of Contents for THERMOROSSI ARDHEA EVO5

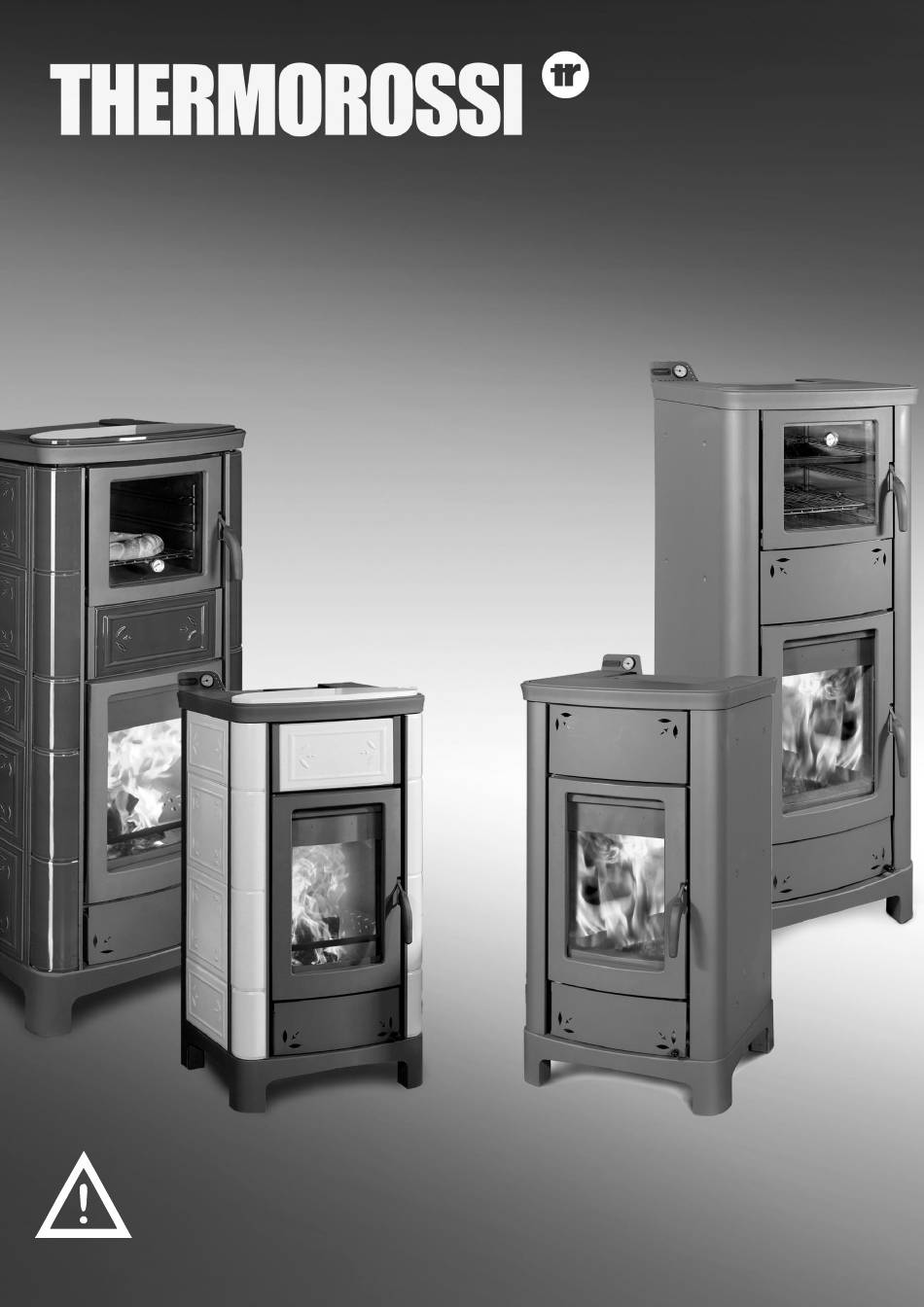

- Page 1 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 ARDHEA EVO5 – ARDHEA-F EVO5 ITA - MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE. FRA - MANUEL D’INSTALLATION, D’UTILISATION ET D’ENTRETIEN. ENG - INSTALLATION, USE AND MAINTENANCE GUIDE. DEU - INSTALLATIONS-, BETRIEBS- UND WARTUNGSANLEITUNG.
- Page 2 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 Page 1...
-
Page 3: Table Of Contents
Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 INDEX 1 – INTRODUCTION..........................5 2 – TECHNICAL CHARACTERISTICS...................... 7 3 – GENERAL DESCRIPTION ........................9 4 – INSTALLATION ..........................11 5 – PLUMBING SYSTEM CONNECTIONS AND DIAGRAMS ..............12 6 – ASSEMBLING THE COMPONENTS ....................16 7 –... - Page 4 DECLARATION OF PERFORMANCE ACCORDING TO REGULATION (EU) 305/2011 Codice di identificazione unico del prodotto-tipo: ARDHEA EVO5 Modello, lotto, serie ai sensi dell'articolo 11, paragrafo 4: ARDHEA EVO5 Unique identification code of the product type: Model, batch or serial number required under Article 11(4):...
- Page 5 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 IT – SCHEDA PRODOTTO (UE 2015/1186) IT – MARCHIO EN – PRODUCT FICHE (EU 2015/1186) EN – BRAND FR – FICHE PRODUIT (UE 2015/1186) FR – MARQUE THERMOROSSI S.P.A. NL – PRODUCTGEGEVENSBLAD (EU 2015/1186) NL –...
-
Page 6: Introduction
Furthermore, Thermorossi reserves the right to apply changes to the content of this manual anytime and without notice. Thermorossi S.p.A. retains copyright on this manual. These instructions may not be reproduced or communicated to third parties or used in any other way without the necessary authorisation. - Page 7 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 educate children to be aware of said risks. Do not expose your body to hot air for long, do not overheat the room in which the appliance is installed, as these actions could cause health problems. Do not expose plants or animals directly to the hot air flow as this could have noxious effects on them.
-
Page 8: Technical Characteristics
Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 2 – TECHNICAL CHARACTERISTICS ARDHEA EVO5 ARDHEA-F EVO5 Height (mm) 1,171 1,533 Depth (mm) Width (mm) Empty weight without casing (kg) Ø Internal smoke outlet (mm) Ø External smoke outlet (mm) - Page 9 Installation, use and maintenance guide VISTA ISOMETRICA - SCALA 1:10 ARDHEA EVO5 – ARDHEA-F EVO5 2.1 DIMENSIONS ARDHEA EVO5 VISTA FRONTALE VISTA FIANCO SX VISTA POSTERIORE VISTA SUPERIORE ARDHEA-F EVO5 VISTA ISOMETRICA - SCALA 1:10 SCALA 1:20 SCALA 1:20 SCALA 1:20...
-
Page 10: General Description
Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 3 – GENERAL DESCRIPTION 3.1 THE FUEL The fuel for this appliance is ordinary wood billets with a moisture content between 10% and 20% and with a thermal value of 13,000 to 15,429 Kcal/kg. - Page 11 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 Adjustable mounting feet Primary air adjustment knob Grill for rekindling the fire Secondary air lever Ash pan Ash pan door Feed door Baffle plate Secondary air box Safety heat exchanger insertion plate...
-
Page 12: Installation
Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 4 – INSTALLATION 4.1 APPLIANCE LOCATION Follow the general guidelines set out in paragraph 1.1 to the letter. Be aware that the flooring of the installation site must be capable of withstanding the weight of the appliance and the water contained in it. If this requirement is not met, it is obligatory to adopt countermeasures (for example, load distribution plate …). -
Page 13: Plumbing System Connections And Diagrams
The nominal volume of the closed expansion tank must be sized in relation to the total volume of the water contained in the system. Thermorossi prescribes the size of the closed expansion tank as equal to 10% of the volume of water contained in the entire system. - Page 14 Installation, use and maintenance guide ARDHEA + VASO APERTO ARDHEA EVO5 – ARDHEA-F EVO5 5.3 SCHEMATIC DIAGRAM OF TYPICAL OPEN EXPANSION TANK HYDRAULIC SYSTEM TDSC Heating plant delivery Safety heat exchanger (recommended) Water main inlet Circulation tube Safety tube from the boiler to the open expansion tank...
- Page 15 ARDHEA + VASO CHIUSO Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 5.4 SCHEMATIC DIAGRAM OF TYPICAL CLOSED EXPANSION TANK HYDRAULIC SYSTEM VM3VT Heating plant delivery Safety heat exchanger Additional closed expansion tank, sized to at least 10% of...
- Page 16 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 5.5 SCHEMATIC DIAGRAM OF TYPICAL CLOSED EXPANSION TANK HYDRAULIC SYSTEM WITH PUFFER ARDHEA + VASO CHIUSO -+ PUFFER TANK VM3VT COLD Supply to the puffer tank Discharge Water main inlet...
-
Page 17: Assembling The Components
Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 6 – ASSEMBLING THE COMPONENTS 6.1 INSTALLATION OF THE SAFETY HEAT EXCHANGER (OPTIONAL) Install the safety heat exchanger in accordance with the following procedure: Remove the safety heat exchanger insertion plate (1). - Page 18 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 6.3 INSTALLATION OF THE CIRCULATING PUMP It is mandatory to connect the circulating pump (not supplied as standard) to the dedicated terminal block. Failure to connect the circulating pump to the terminal block will immediately void the manufacturer's warranty.
- Page 19 Detail N and Detail M (for heater mod. ARDHEA-F EVO5 follow the indications in Figure 4, for heater mod. ARDHEA EVO5 follow the indications in Figure 5). Next, place the cast iron cover E and raise or lower it by means of the screws F (figure 1).
- Page 20 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 FIGURE 5 FIGURE 4 ATTENTION: The majolica elements are handcrafted so they could contain subtle surface imperfections, crazing or shade variations. The layer of glaze has an expansion factor that is different to that of the majolica tiles which is what causes the hairline cracks.
-
Page 21: Use Of The Appliance
Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 7 – USE OF THE APPLIANCE The appliance, when operating, is hot to the touch, particularly the door of the combustion chamber: consequently, take care not to touch any surface. Your appliance has obtained the CE marking. The product must not be used by children, by persons with physical or mental impairments, by persons who are not familiar with the instructions for use and maintenance of the product (the instructions are found in this installation, use and maintenance manual). - Page 22 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 Leaving open the grill for rekindling the fire (C) during normal operation results in higher fuel consumption than the declared quantity, a considerable drop in efficiency and exposure of the appliance to extremely high temperatures.
- Page 23 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 LEGENDA Tappo Plug 7.4 PRESCRIPTIONS FOR CORRECT OPERATION - Respect the maximum declared consumption, do not overload the stove with excessive quantities of fuel as this could cause damage. LOADING A LARGER QUANTITY OF FUEL OR LOADING SEVERAL TIMES IN AN HOUR WOULD EXPOSE THE COMPONENTS OF THE APPLIANCE TO VERY HIGH TEMPERATURES.
-
Page 24: Cleaning And Maintenance
• Clean the inner surfaces of the flue gas path and the tube bundle. To do so, open the feed door, remove the vermiculite tile (figure 1) and open the S plug, which in model ARDHEA-F EVO5 is located at the back (figure 2), whereas in model ARDHEA EVO5 it is located under the cast iron cover (figure 3). - Page 25 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 FIGURE 1 LEGENDA SPOSTARE IN AVANTI MOVE FORWARD RUOTARE VERSO IL BASSO ROTATE DOWNWARDS ABBASSARE, RUOTARE VERSO L’ALTO FINO LOWER, ROTATE UPWARDS UNTIL THE TILE A POSIZIONARE LA TAVELLA ORIZZONTALE IS HORIZONTAL RUOTARE VERSO SX DI 45°...
-
Page 26: Smoke Discharge Tube
Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 9 - SMOKE DISCHARGE TUBE 9.1 FOREWORD Due to the frequent accidents caused by poor functioning of flue outlets installed in private dwellings, we have prepared the following paragraph to assist the installer in his inspection of the parts concerned with eliminating the gases produced by combustion. - Page 27 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 9.3.2 FLUE OUTLET / FLUE SYSTEM COMPONENTS Components and accessories of a Every chimney must have minimum number of components as laid chimney down by standard UNI EN 10683 which are also indicated in the figure on the left.
-
Page 28: Problems, Causes And Solutions
Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 10 - PROBLEMS, CAUSES AND SOLUTIONS PROBLEM CAUSE SOLUTION Blocked grate. Clean the grate. Moist wood or too thick. Use smaller sized and more seasoned wood. Clean the ash pan. -
Page 29: Spare Parts
Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 11 - SPARE PARTS ARDHEA EVO5 Page 28... - Page 30 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 ARDHEA-F EVO5 Page 29...
- Page 31 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 LEGENDA ARDHEA EVO5 ARDHEA EVO5 BIANCO WHITE ROSSO CUOIO LEATHER BEIGE BEIGE Telaio ghisa Cast iron frame Guarnizione Gasket Semiguschio inf. Bottom half shell Semiguscio sup. Top half shell Maniglia...
- Page 32 Installation, use and maintenance guide ARDHEA EVO5 – ARDHEA-F EVO5 F ire L o v e rs Via Grumolo, 4 (Z.I.) 36011 Arsiero (VI) - ITALY Fax 0445.741657 - www.thermorossi.com - info@thermorossi.it Page 31...
