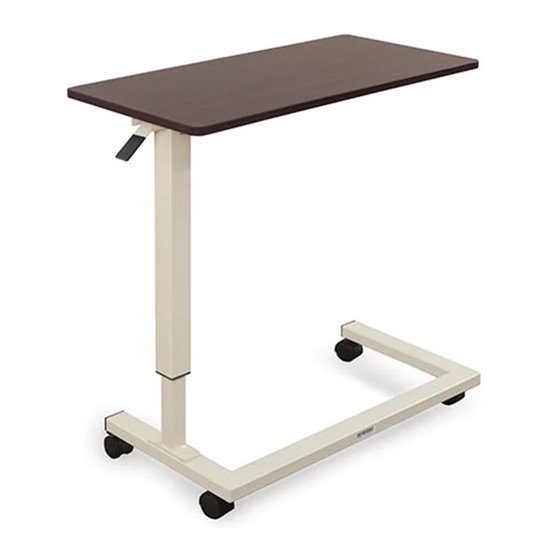

Over Bed Table
Item # OB2845
User Manual

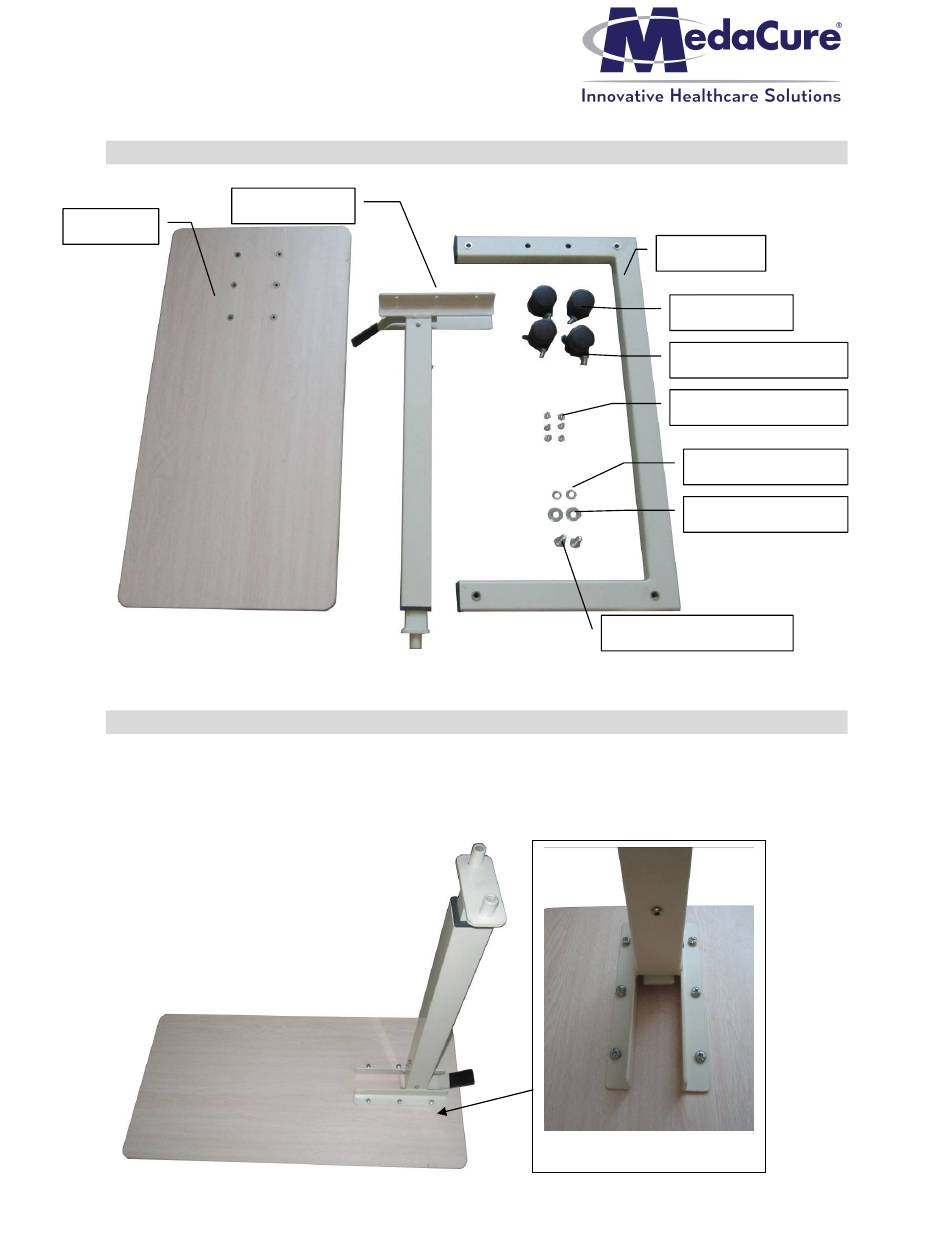

Over bed table installation parts listed below (See Figure # 1)
Lifting pole set
Table top
Figure # 1
1．Installing the table top
Place the table down face down on a flat surface with the bolt holes facing up. Match the six bolt holes on the
lifting pole with bolt holes on the table top.
Fasten 6 pcs M6 X 16 cup head bolts with a screwdriver. (See Figure # 2)
Figure # 2
Base frame
Swivel castor
Total lock brake castor
M6×16 Cup head bolt
φ10 Spring washer
φ10 Flat washer
M10×20 Hex head bolt
Advertisement
Table of Contents
Related Manuals for MedaCure OB2845
Summary of Contents for MedaCure OB2845
- Page 1 Over Bed Table Item # OB2845 User Manual Over bed table installation parts listed below (See Figure # 1) Lifting pole set Table top Base frame Swivel castor Total lock brake castor M6×16 Cup head bolt φ10 Spring washer φ10 Flat washer M10×20 Hex head bolt Figure # 1 1．Installing the table top Place the table down face down on a flat surface with the bolt holes facing up. Match the six bolt holes on the lifting pole with bolt holes on the table top. Fasten 6 pcs M6 X 16 cup head bolts with a screwdriver. (See Figure # 2) Figure # 2 ...
- Page 2 2．Installing the castors Install the total lock brake castors diagonally. Insert the caster stem into the M10 bolt hole in the base frame. Fasten the caster stem by using an open spanner (See Figure # 3) Total lock brake castor Figure # 3 3．Installing the base frame Matching the φ18 hole in the base frame with the M10 bolt hole in the lifting pole. Insert the screw nuts of the lifting pole into the base frame. Insert the φ10 spring washer and φ10 flat washer into each one of 2 pcs M10 X 20 hex head bolts, and fasten the bolts with a spanner. (See Figure # 4) Spring washer Flat washer Figure # 4 ...
- Page 3 4．Operation of the over bed table Place the over bed table in the upside down position and remove the self‐tapping screw (for shipping purpose). The over bed table has an adjustable height from 28” – 45” To raise the over bed table, lift the table top with your hand (do not press the lifting handle). To lower the over bed table, push up the lifting handle with one hand and press down the table top with the other hand. (See Figure # 5) Lifting handle Remove this self‐tapping screw Figure # 5 © 2019 Item # OB2845 MADE IN CHINA ...
