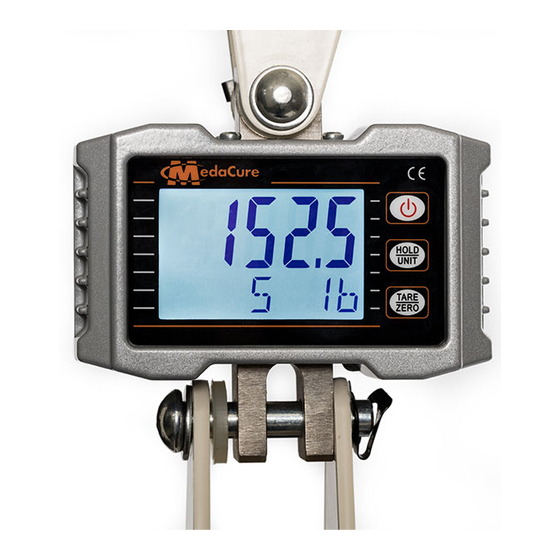

- Page 1 FS660 DS1100 Bariatric Digital Scale User Manual BEFORE using this product, read this manual and save for future reference.
-
Page 2: Table Of Contents
Bariatric Digital Scale User Manual ACCESSORIES Bariatric Digital Scale ..............3 Removing the Hanger bar ............3 Installing the Digital Scale............4 Operating the Scale ................ 6 Display & Keys ................6 Operations ................7 Weighing the Patient ..............9 Battery Maintenance /Replacing the Battery ...... -
Page 3: Accessories
1 GENERAL Accessories Bariatric Digital Scale WARNING DO NOT install or use this equipment without first reading and understanding these instructions. If you are unable to understand the Warnings, Cautions or Instructions, contact a healthcare professional, dealer or technical personnel before attempting to install this equipment - otherwise, injury or damage may occur. -
Page 4: Installing The Digital Scale
Installing the Digital Scale Please see illustration on page 5. WARNING Patient and sling must be removed from the lift during all installation procedures. Install the Ring to the arm lift, by attaching the bolt, washer and nut. Install the scale to the ring, by attaching the bolt, washer and nut. Install the arm crossbar to the scale, by attaching the bolt, washer and nut. - Page 5 Installing the Medacure Digital Scale...
-
Page 6: Operating The Scale
Operating the Scale Display & Keys Name Function Short press of key: Cancel & return to weighing mode On/Off Long press of key: Power-on / Power-off Short press of key: Tare in/out; Increase digit Tare Long press of key: Zero; Move digit Short press of key: Lock/unlock;... -
Page 7: Operations
Operations Power On/Off Press for 1 second to power-on scale. Scale performs initialization and power-on test, shows twice, then capacity shows, battery life percentage shows, weight detection shows and then auto zero. For information about Auto-Zero, refer to Scale Configuration in Technical Manual. Press for 1s to power-off scale. - Page 8 User Setup Press at the same time for 1 second to enter User Setup menu. shows. Auto-Off Timing Press to enter Auto-Off Timing. shows. Press to change timing value. Auto-Off Timing can be set to: (disabled), (5min), (10min), (15min), (30min), (60min).
-
Page 9: Weighing The Patient
DO NOT operate key strokes with pointed objects (e.g. pencils, pens, fingernails, etc.) Otherwise damage to the key pad will result. Attach sling straps to the hangar bar. For proper attachment instructions refer to Attaching a Sling on page 21 in Medacure’s Patient Lift Instruction Manual. -
Page 10: Battery Maintenance /Replacing The Battery
Should it be necessary to unlock the weight while the patient is still supported by the lift, the UNLOCK button may be pressed. The weight will unlock and the word “LOCK” will disappear from the display window. The weight value will then be updated. Once the weight becomes stable the weight can be locked again by pressing the LOCK button. - Page 11 Battery compartment Operates on 3 ‘AA’ 1.5V batteries...
-
Page 12: Warranty
MedaCure or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. MedaCure warrants the control unit when purchased new and unused to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase from MedaCure or a dealer, with a copy of the seller’s invoice required for coverage under this warranty.
