- Page 1 User Manual FOR MODEL # CZ42 & CZ48 & CZ42-BIP & CZ48-BIP 10” REPLACEMENT CELL-ON-CELL MATTRESS © 2014 MADE IN CHINA...
-
Page 2: Table Of Contents
INDEX MODEL # & DESCRIPTION----------------------------------------------------------------------------------------------------------page 2 INTRODUCTION------------------------------------------------------------------------------------------------------------------------page 2 INTENDED USE-------------------------------------------------------------------------------------------------------------------------page 2 CAUTION----------------------------------------------------------------------------------------------------------------------------------page 2 STANDARDS-----------------------------------------------------------------------------------------------------------------------------page 3 GENERAL WARNINGS----------------------------------------------------------------------------------------------------------------page 3 SYMBOLS---------------------------------------------------------------------------------------------------------------------------------page 3 GENERAL DESCRIPTION------------------------------------------------------------------------------------------------------------page 4-5 INSTALLATION--------------------------------------------------------------------------------------------------------------------------page 6 MATTRESS & COVER-----------------------------------------------------------------------------------------------------------------page 6 BEFORE USE----------------------------------------------------------------------------------------------------------------------------page 6 USE WARNINGS------------------------------------------------------------------------------------------------------------------------page 6-7 HOW TO USE----------------------------------------------------------------------------------------------------------------------------page 7 HOW TO USE THE CPR DEFLATOR & INFLATOR--------------------------------------------------------------------------page 7-8 STORAGE---------------------------------------------------------------------------------------------------------------------------------page 9 MAINTENANCE--------------------------------------------------------------------------------------------------------------------------page 9 CLEANING AND DISINFECTION---------------------------------------------------------------------------------------------------page 9... -
Page 3: Model # & Description

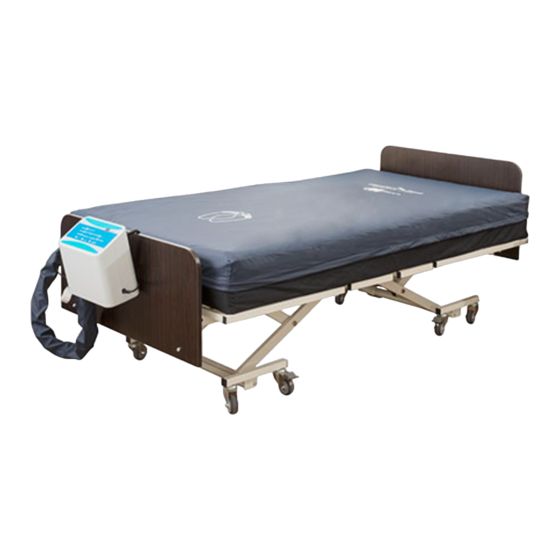

MODEL # & DESCRIPTION CZ42 (42” WIDTH) & CZ48 (48” WIDTH) MATTRESS & PUMP – BARIATRIC WIDTH WITH 10” CELL-ON-CELL HEIGHT INTRODUCTION Thank you for purchasing the Comfort Zone Bariatric Mattress with Alternating Pressure and Low Air Loss MedaCure. -
Page 4: Standards
STANDARDS The system has been tested and successfully approved to the following standards: EN 60601-1 EN 60601-1-1-2 GENERAL WARNINGS Keep this manual in a safe place and refer to the manual before use and under proper medical supervision. Improper operation of this system may cause damage t o the product and possible injury to the user. -
Page 5: General Description
GENERAL DESCRIPTION Pump and Mattress Controls and Features Main Control Panel POWER SWITCH CYCLE TIME When LED is illuminated the power is on. Adjust the cycle time from 10,15, 20 and 25 minutes for “Alternating”... - Page 6 Front (1) Control panel (2) Female quick connector (3) Male quick connector (4) Main male quick connector (5) Fuse Back (8) Filter (9) Main filter (10) Protective cap of filter (11) Hook (1) Pillow (2) Cover (3) Fixing belt (4) Low air loss holes (5) Male quick connector (6) Protective cap of connector (7) Air tubing...
-
Page 7: Installation
INSTALLATION 1.Comfort Zone is a replacement mattress. Place the mattress directly on the bed frame, with the air hose connectors positioned at the footboard. 2.Hang the pump onto the bed board (footboard side) using the hooks on back of the pump, or place it on a flat surface. 3.Connect air hose connectors from air mattress to the pump unit. -
Page 8: How To Use
1) Only use the system under the supervision of a nurse or caregiver that understands how to operate this device. 2) Do not use any parts that did not come with this unit or supplied by MedaCure or authorized dealer. - Page 9 2) Pull down tab to open the valve as shown. IMPORTANT: Always keep this tab in the closed position when mattress is in use to prevent deflating. 3) Turn the CPR as show to open the valve for deflating. 4) Align the air holes as shown to deflate. CPR Inflator –...
-
Page 10: Storage
Dispose this equipment by bringing it to a specific recycling point for electric and electronic equipment or others that provide this service. SPARE PARTS/ACCESSORIES For spare parts and accessories please contact MedaCure or authorized dealer. TROUBLESHOOTING If your questions can’t be answered with below information, please contact your local agent directly. They might require a technician to take care of the problem. -
Page 11: Electromagnetic Compatibility Declaration
ELECTROMAGNETIC COMPATIBILITY DECLARATION Guidance and manufacturer’s declaration-electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment-guidance RF emissions... - Page 12 ELECTROMAGNETIC COMPATIBILITY DECLARATION Guidance and manufacturer’s declaration-electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level Electromagnetic...
- Page 13 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the CZ42 & CZ48 is used exceeds the applicable RF compliance level above, the CZ42 & CZ48 should be observed to verify normal operation.
- Page 14 Recommended separation distance between portable and mobile RF communications equipment and the CZ42 & CZ48 The CZ42 & CZ48 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of theCZ42 & CZ48 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the CZ42 &...
-
Page 15: Technical Features
TECHNICAL FEATURES Pump Control Unit FEATURE PUMP Power supply 120V/60Hz Power 12.0W Fuse rating 1A/250V Pressure 20mmhg~60mmhg Dimensions 12 ½” (W) x 12” (L) x 6” (H) Cycle 10/15/20/25mins Weight 9 lbs. Operation:+10 /+40 Environment Storage:-15 /+50 temperature Shipping:-15 /+70 Operation:10%-90% non-condensing Environment... -
Page 16: Appendix(Built-In Air Perimeter Mattress)
APPENDIX--- BUILT-IN AIR PERIMETER MATTRESS MODEL # CZ42-BIP & CZ48-BIP THESE MODELS COME WITH A BUILT-IN AIR PERIMETER PLEASE CHECK THE BACK OF THE PUMP FOR CORRECT MODEL NUMBER. The built in air perimeters are located on both the left & right side of the mattress.
