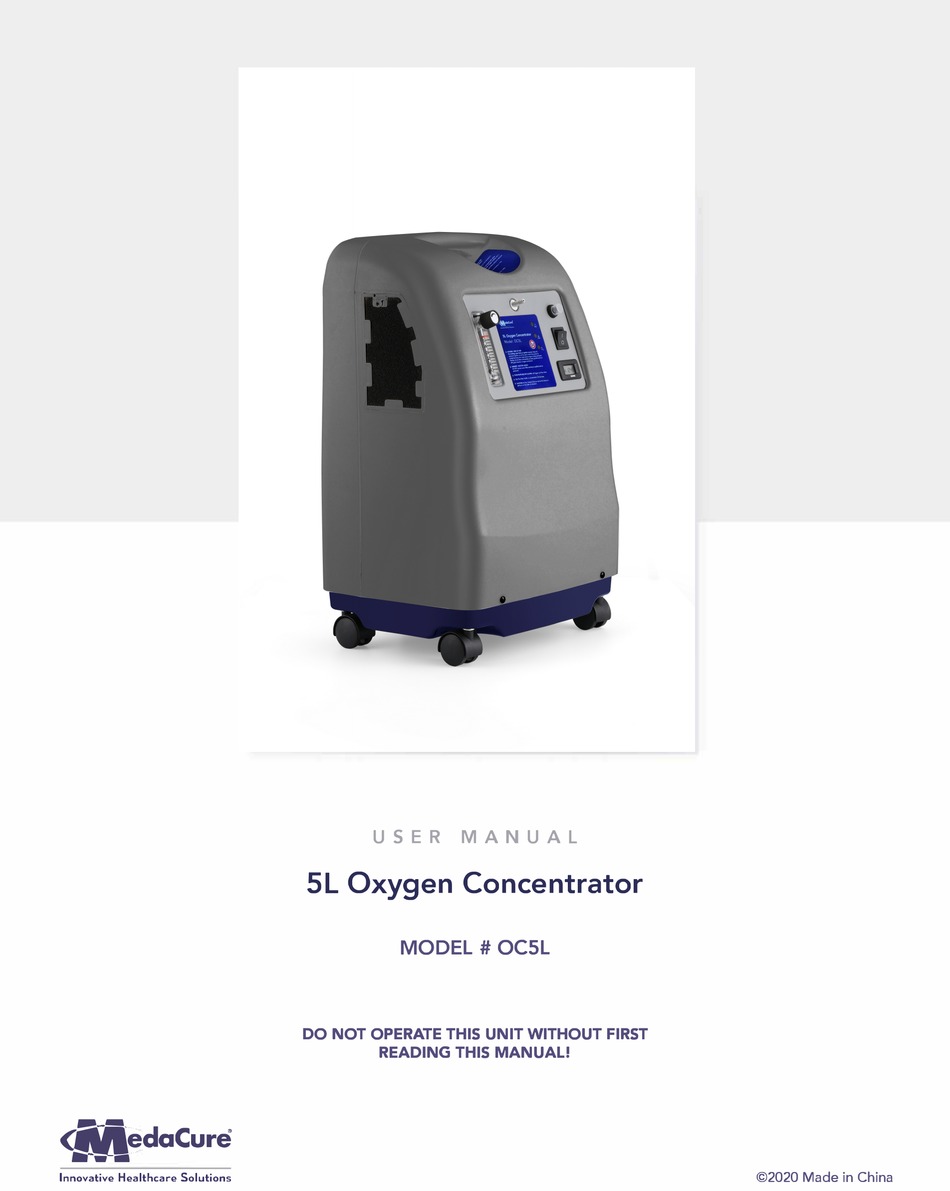

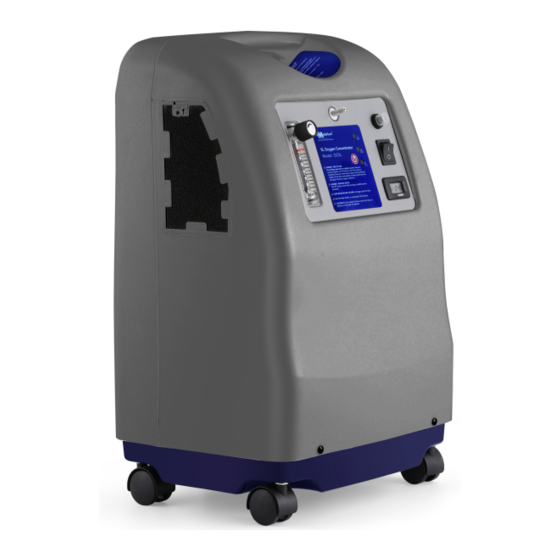

- Page 1 、 USER MANUAL SL Oxygen Concentrator MODEL# OCSL DO NOT OPERATE THIS UNIT WITHOUT FIRST READING THIS MANUAL! 磷 daCure ©2020 Made in China Innovative Healthcare Solutions...
-
Page 2: Table Of Contents
Table of Contents 1. SAFETY NOTES ................4-6 1.1 Important Information ............4 1.2 Before Installation ..............4 1.3 Placement ................4 1.4 Fire and Explosion Warning .............5 1.5 Maintenance ................5 1.6 Radio Frequency Interference ..........5 1.7 Reduce the Risk of Burns ............6 2. - Page 3 Table of Contents 4.3 Starting Up ................11 4.4 Alarm Signal .................12 4.5 Alarm Signal Cue ..............12 4.6 Turning Off ................12 4.7 Symbols and Descriptions ............13 5. MAINTENANCE ................14-15 5.1 Cleaning the Cabinet ............14 5.2 Cleaning & Replacing the Filter ..........14 5.3 Cleaning the Optional Humidifier Bottle ......15 5.4 Oxygen Nasal Cannula ............15 5.5 Tube Maintenance ..............15...
-
Page 4: Safety Notes
1. Safety Notes WARNING: Users who require continuous oxygenation must plan for alternate reserve sources of power and oxygen in the event of a failure or loss of power and oxygen. This device is to be used as an oxygen supplement .and is NOT considered life-supporting or life-sustaining! SYMBOLS CONTENTS... -
Page 5: Fire And Explosion Warning
1. Safety Notes Do not place the unit in a confined area. The oxygen concentrator MUST be kept away from heat, fire and excessive water sources and conditions. The oxygen concentrator should be located in an area so as to avoid pollutants or fumes. Do Not place any items on top of the concentrator. -
Page 6: Reduce The Risk Of Burns
1. Safety Notes Energy of Radio Frequency of this machine is just for device operation use, so low Radio Frequency will not affect the running of other electric equipment around regard to the use of portable communications equipment in the area around such equipment. 1.7 To Reduce the Risk of Burns, Electrocution, Fire or Injury to Persons. -
Page 7: Features
2. Features 2.1 Summary The Medacure oxygen concentrator is intended for individual use as an oxygen supplement device in a home or care facility. The patient is an intended operator. It is an electronically operated device that separates oxygen from ambient air. It provides high concentration of oxygen directly to the user through a nasal cannula or other method. - Page 8 2. Features 11. Safety System: • Current overload or line surge shutdown. • High temperature compressor shutdown. • High pressure alarm shutdown. • Low Pressure larm shutdown. • Low Oxygen Concentration alarm. 12. Minimum Operating Time: 30 minutes 13. Electric Classification: Class II equipment , Type BF applied part (Nasal oxygen cannula); 14.
-
Page 9: Handling
3. Handling 3.1 Unpacking NOTE: Unless the oxygen concentrator is to be used immediately, retain containers and packing materials for storage until concentrator is in use. • Check for any obvious damage to the carton or its contents. If damage is noted, please notify the carrier or local dealer immediately. -
Page 10: Installation And Operation
4. Installation & Operation 4.1 Features & Functions Flow meter - Set the oxygen flow rate by adjustingt the knob. Status Indicator Light (Alarm/Normal Low) Oxygen tube Outlet connector Circuit Breaker To protect the machine and user, the circuit breaker will cut off power automatically when current 2'. -
Page 11: Preparation
4. Installation & Operation DO NOT add water above the maximum water level. Pure water shall be added in humidifier between the maximum and minimum water level in use. • Power switch ——I indicates that the power is on. O indicate the power is off. •... -
Page 12: Alarm Signal
4. Installation & Operation CAUTION: If the flow rate on the flow meter falls below 0.5L/min, check the tubing or accessories for blocked or kinked tubing and check for a defective humidifier bottle. 4.4 Alarm Signal • Initial Startup of the Concentrator NOTE: Concentrator may be used during the initial start warm-up time (approximately 30 minutes), while waiting for the O2 concentration to reach maximum. -
Page 13: Symbols And Descriptions
4. Installation & Operation 4.7 Symbols and Descriptions SYMBOL MEANING SYMBOL MEANING It is mandatory to read and Understand the operating instructions prior to use. Alternating Current This symbol has a blue background on the product label. Class II Equipment Type BF Applied Part OFF (power) ON (power) -
Page 14: Maintenance
5. Maintenance 心WARNING: Power should be disconnected before performing maintenance on the concentrator. DO NOT service or conduct maintenance while in patient-use. The concentrator does not require extra approved maintenance. The unit is equipped with a pressure and oxygen purity self-check function. However, regular maintenance should be performed annually. -
Page 15: Cleaning The Optional Humidifier Bottle
5. Maintenance Intake filter: The intake filter access door is located on the left side of the concentrator. Using a small screwdriver, open the access door. Unscrew the block of cabinet filter holder. Remove the intake filter. (Figure 6) It is recommended to replace with a new Intake filter every 2,000 hours. More frequent inspection and replacement of filter may be required if operating concentrator in a dusty environment. -
Page 16: Troubleshooting
6. Troubleshooting Troubleshooting Guide SYMPTOM PROBABLY CAUSE SOLUTION REMARK 1) Check and connect 1) Four corns plug-in of the circuit board to the valve has not been the valve’s fourcorns inserted completely plug-in. Elapsed time meter displays, the green and 2) Exhaust sound buffer the yellow light, but 2) Replace it... - Page 17 6. Troubleshooting SYMPTOM PROBABLY CAUSE SOLUTION REMARK 1) Concentrator’s 1) Clean or Replace oxygen concentration filters. is safe, but decreasing. 2) Move concentrator Concentrator works, at least 10 cm (4 2) Unit overheating but yellow light inches) away from due to blocked air illuminates.
-
Page 18: Other Attentive Items
7. Other Attentive Items 7.1 Post-marketing Service • With normal use and under normal maintenance circumstances if the Oxygen Concentrator can not be normally used in half a year since delivery date, or in a year of commerce storage compressor, the company is responsible for the free repair or exchange. -
Page 19: Emc Guidance In Use
GUIDANCE AND DECLARATION OF MANUFACTURER - ELECTROMAGNETIC IMMUNITY The Medacure Oxygen Concentrator is intended for use in the electromagnetic environment specified below. The customer or the user of the Medacure Oxygen Concentrator shouldassure that the unit is used in such an environment. ELECTROMAGNETIC... - Page 20 GUIDANCE AND DECLARATION OF MANUFACTURER - ELECTROMAGNETIC IMMUNITY The Medacure Oxygen Concentrator is intended for use in the electromagnetic environment specified below. The customer or the user of the Medacure Oxygen Concentrator shouldassure that the unit is used in such an environment. COMPLIANCE...
- Page 21 The Medacure Oxygen Concentrator is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or user of the Medacure Oxygen Concentrator can help to prevent electromagnetic interferences by maintaining minimum distances between the portable and mobile RF communication equipment (transmitters) and the Medacure Oxygen Concentrator as recommended below, according to the maximum output power of the communication equipment.
-
Page 22: Company Contact Information
545 N. Arlington Avenue East Orange, NJ 07017, USA PHONE 718-596-1120 EMAIL info@medacureinc.com WWW.MEDACUREINC.COM...
