User Manual
FOR MODEL # PD36, PD42 & PD48
© 2017
MADE IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD36 and is the answer not in the manual?

Questions and answers

Related Manuals for MedaCure PD36

Summary of Contents for MedaCure PD36

  • Page 1 User Manual FOR MODEL # PD36, PD42 & PD48 © 2017 MADE IN CHINA...
  • Page 2 INDEX page 2 MODEL page 2 INTRODUCTION page 2 INTENDED USE page 2 STANDARDS page 3 GENERAL WARNING page 3 page 3 SYMBOLS page 4-5 GENERAL DESCRIPTION page 6 INSTALLATION page 6 BEFORE USE page 6-7 USER WARNINGS page 7 page 7 HOW TO USE page 7...

  • Page 3: Intended Use

    PRO DYNAMIC - TRUE LOW AIR LOSS BLOWER SYSTEM WITH PUMP INTRODUCTION Thank you for purchasing the MedaCure Pro Dynamic True Low Air Loss Blower System. This user’s manual provides suggestions on how to correctly use the product and gives valuable advice regarding your safety.

  • Page 4: General Warnings

    STANDARDS The system has been tested and successfully approved to the following standards: EN 60601-1 EN 60601-1-2 GENERAL WARNINGS Keep this manual in a s afe plac e and refer to the manual before use and under pr op er medical supervision.

  • Page 5: Controls And Features

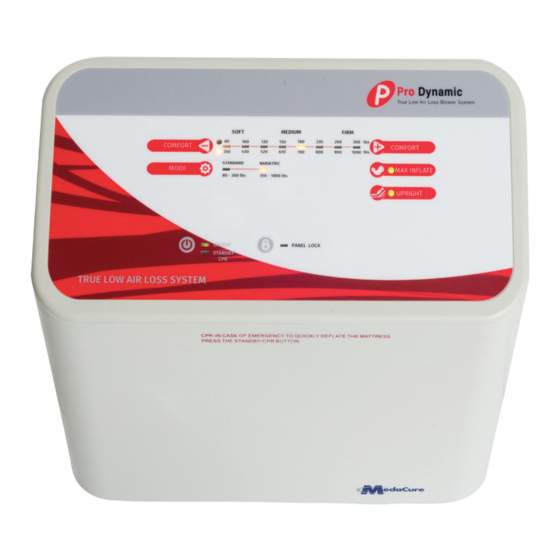

    GENERAL DESCRIPTION Pro Dynamic True Low Air Loss Blower System Pictures are for demonstration only and do not refer to a specific product or model NOTE Controls and Features POWER (1) ON/OFF SWITCH To turn on the pump press the on/off switch located on the side of the pump to on. The ON/OFF LED will illuminate to indicate the power is on.
  • Page 6 Pro Dynamic True Low Air Loss Blower System Pictures are for demonstration only and do not refer to a specific product or model NOTE (1) Control panel (2) Female CPC (3) Female quick connector (4) Male quick connector (5) Fuse (6) Hooks for foot board (7) Power switch (8) Medical grade power cord...

  • Page 7: Before Use

    1.Pro Dynamic is a replacement mattress. Place the mattress directly on the bed frame, with the air hose connectors positioned at the footboard. 2.Hang the pump over the foot board using the hooks on back of the pump, or place it on a flat surface. BEFORE USE Check the correct assembly, paying particular attention to the air hoses connector.

  • Page 8: Patient Weight

    1) Only use the system under the supervision of a nurse or caregiver that understands how to operate this device. 2) Do not use any parts that did not come with this unit or supplied by MedaCure or authorized dealer.

  • Page 9: Cleaning And Disinfection

    Dispose this equipment by bringing it to a specific recycling point for electric and electronic equipment or others that provide this service. SPARE PARTS/ACCESSORIES For spare parts and accessories please contact MedaCure or authorized dealer. TROUBLESHOOTING If your questions can’t be answered with above information, please contact your local agent directly. They might require a technician to take care of the problem.

  • Page 10: Electromagnetic Compatibility Declaration

    ELECTROMAGNETIC COMPATIBILITY DECLARATION Guidance and manufacturer’s declaration-electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment-guidance RF emissions...

  • Page 11: Guidance And Manufacturer's Declaration - Electromagnetic Immunity

    ELECTROMAGNETIC COMPATIBILITY DECLARATION Guidance and manufacturer’s declaration-electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level Electromagnetic...
  • Page 12 ELECTROMAGNETIC COMPATIBILITY DECLARATION The Pro Dynamic is intended for use in the electromagnetic environment specified below. The customer or the user of the Pro Dynamic should ensure that it is used in such an environment. Immunity test IEC 60601 test Compliance Electromagnetic level...
  • Page 13 ELECTROMAGNETIC COMPATIBILITY DECLARATION Recommended separation distance between portable and mobile RF communications equipment and the Pro Dynamic The Pro Dynamic is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Pro Dynamic can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Pro Dynamic as recommended below, according to the maximum output power of the communications equipment.
  • Page 14 Pump Control Unit FEATURE PUMP Power supply 120V/60Hz Power 300.0W Fuse rating 3A/250V Pressure 10mmhg~40mmhg 12 .6” (W) x 6.8” (L) x 12” (H) Dimensions Weight 15.4 lbs. Operation:+10 /+40 Environment Storage:-15 /+50 temperature Shipping:-15 /+70 Operation:10%-90% non-condensing Environment Storage:10%-90% humidity non-condensing Shipping:10%-90%...
  • Page 15 MedaCure warrants the control unit when purchased new and unused to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase from MedaCure or a dealer, with a copy of the seller’s invoice required for coverage under this warranty.

This manual is also suitable for:
