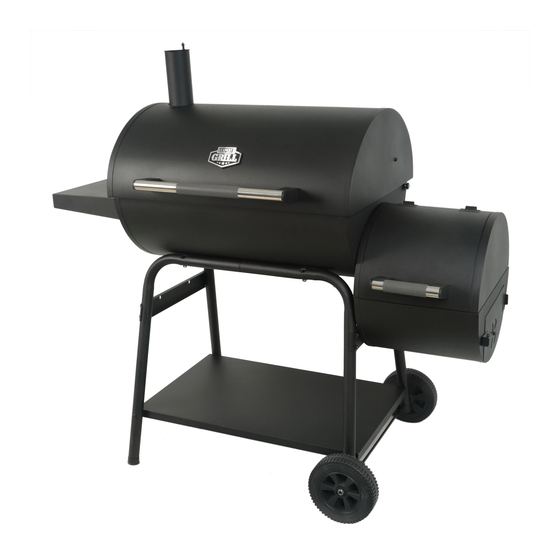

Outdoor Charcoal Barbecue Grill
Model No. XG13-104-001-01 / CBC2335W
Model No. XG13-104-001-01 / CBC2335W
Table of Contents
. . . . . . . . . . . . . . . . . . . .
Expanded View & Hardware . . . . . . . . . . . . . . . . . . 4-5
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . 11-12
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Combustion by-products produced when using this product
contain chemicals known to the State of California to cause
cancer, birth defects, and other reproductive harm .
Wash your hands after handling this product .
This instruction booklet contains important safety information .
Please read and keep for future reference .
Keep this owner's manual for future reference . If you sell or
give this product to someone else, make sure this manual
accompanies this product .
Walmart call center:
Service hours 7 days/week, 7:00 AM - 9:00 PM CST
Contact number: 1-833-908-2026
Manufactured in China for:
RevoAce Inc . Limited / Hong Kong, China
OWNER'S MANUAL
OWNER'S
CALIFONIA PROPOSITION 65
This product can expose you to
chemicals including carbon black,
which is known to the State of
California to cause cancer.
For more information, go to www.
P65Warnings.ca.gov.
Do not leave this appliance
unattended, especially cooking the
fatty meat and close the lid too long
time.
For Outdoor Use Only!
(outside any enclosure)
Page 2
CARBON MONOXIDE HAZARD
Burning charcoal inside can kill you.
It gives off carbon monoxide, which
has no odor.
Never burn charcoal in enclosed
spaces E.g. Homes, vehicles or tents.
Failure to follow the danger, warning
and cautions in this manual may
result in seriousbodily injury or death,
or in a fire or an explosion causing
damage to property.
CBC2335W-OM-E-F100
MANUAL
WARNING
DANGER
WARNING
WARNING
DANGER
Advertisement
Related Manuals for EXPERT GRILL XG13-104-001-01
Summary of Contents for EXPERT GRILL XG13-104-001-01
-
Page 1: Table Of Contents
OWNER’S OWNER’S MANUAL MANUAL Outdoor Charcoal Barbecue Grill Model No. XG13-104-001-01 / CBC2335W Model No. XG13-104-001-01 / CBC2335W WARNING CALIFONIA PROPOSITION 65 This product can expose you to chemicals including carbon black, which is known to the State of California to cause cancer. -
Page 2: Important Safeguards
FOR YOUR SAFETY W WARNINGS: W Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. W Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment. W Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death. - Page 3 IMPORTANT SAFEGUARDS ashes or coals to see if they are hot. W Check to make sure the air vents are free of debris and ash before using the grill. W Do NOT use on wooden decks, wooden furniture or other combustible surfaces. W Extinguished coals and ashes should be placed a safe distance from all structures and combustible W This grill is NOT to be used in or on boats or...
-
Page 4: Expanded View & Hardware
Expanded View Parts List Main Lid C2335-010 Side Cooking Grid (2) C2335-130 Brand Plate* C2335-020 Side Charcoal Grid Assembly C2335-140 Smoke Stack C2230-010 Side Air Vent B0105-C00 Main Lid Handle C2335-030 Side Grill Body Door C2335-150 Main Grill Body C2335-040 Door Lock C2335-160 Warming Rack... - Page 5 Hardware Screw 6 pcs M5x8 Galvanizing Phillips Truss Head Step Screw 1 pc M5x10 Galvanizing Phillips Truss Head Bolt 19 pcs M6x12 Galvanizing Hexagon Phillips Truss Head Bolt 8 pcs M6x16 Galvanizing Hexagon Phillips Truss Head Bolt 10 pcs M6x55 Galvanizing Hexagon Phillips Truss Head Washer 4 pcs ø16xø6 .2 Galvanizing...
-
Page 6: Assembly Instructions
Assembly Instructions Do Not Return To Place Of Purchase Attach Leg Brace and Long Legs Please have your owner’s manual and model number available for reference . For Easiest Assembly: 1 . Select an area where you will assemble this product . To protect components, choose a smooth surface that’s free of cracks or openings . - Page 7 Attach Axle and Wheels Attach Main Grill Body Attach Main Lid Handle Attach Smoke Stack...
- Page 8 Attach Side Lid - A and Side Grill Body Attach Side Lid Handle Attach Side Air Vent, Door Lock Attach Side Grill Body Assembly...
- Page 9 Attach Side Lid - B and Side Grill Body Door Assemble Main Lid Assemble Side Shelf Attach Warming Rack...
- Page 10 Assemble Charcoal Grid, Charcoal Grid Support Place Charcoal Grid, Charcoal Grid Hangers Place Side Charcoal Grid Assembly, Side Place Cooking Grids Cooking Grid...
-
Page 11: Operating Instructions
Operating Instructions W WARNING: Never exceed 400°F because this will damage the finish and contribute to rust. Paint is not warranted and will require touch-up. This unit is not warranted against rust. W CAUTION: Never use charcoal that has been pre-treated with lighter fluid. Use only a high grade plain charcoal, charcoal/wood WARNING mixture, lump charcoal or cooking wood. -
Page 12: Cleaning And Care
Operating Instructions (continued) Turning Off Allow charcoal to completely extinguish itself. W WARNING: Do NOT use water to extinguish. This can be dangerous and cause damage. Dispose of the ashes in a proper location . Controlling Flare-ups W CAUTION: Do NOT use water on a grease fire. This can cause the grease to splatter and could result in serious burns, bodily harm or other damage.
