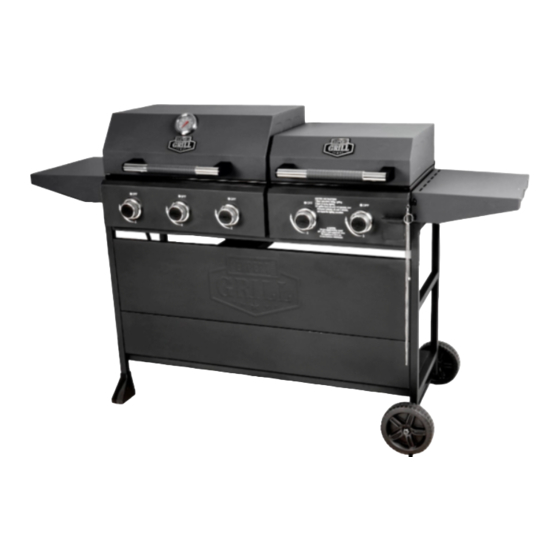

Gas grill and griddle combo
Hide thumbs

Advertisement

Quick Links

Gas Grill and Griddle Combo
Model No. XG14-101-002-01
Model No. XG14-101-002-01

Table of Contents

. . . . . . . . . . . . . . . . . . . . . .
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Expanded View & Hardware . . . . . . . . . . . . . . . . . . 6-7
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . 8-11
Installing LP Gas Tank . . . . . . . . . . . . . . . . . . . . 12-13
Operating Instructions . . . . . . . . . . . . . . . . . . . . 13-15
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . 15-17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
The use and installation must conform with local
codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code, CSA B149.1, or
Propane Storage and Handling Code, B149.2, or the
Standard for Recreational Vehicles, ANSI A 119.2/NFPA
1192, and CSA Z240 RV Series, Recreational Vehicle
Code, as applicable .
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION . PLEASE READ AND KEEP FOR
FUTURE REFERENCE .
If you are assembling this unit for someone else, give
this manual to him or her to read and save for future
reference .
Walmart call center:
Service hours 7 days/week, 7:00 AM - 9:00 PM CST
Contact number: 1-833-908-2026
Manufactured in China for:
RevoAce Inc . Limited / Hong Kong, China
OWNER'S MANUAL
OWNER'S
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or
other flammable liquids or vapors in
the vicinity of this or any other
appliance.
2. An LP cylinder not connected for
use shall not be stored in the vicinity
of this or any other appliance.
DANGER
Do not leave this appliance
unattended, especially cooking the
fatty meat and close lid too long time.
2-4
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only!
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance, immediately call your
gas supplier or your fire department.
Failure to follow these instructions
could result in fire or explosion
which could cause property damage,
personal injury or death.
GGC2452WA-OM-E-F102
MANUAL
DANGER
.
.
(outside any enclosure)
