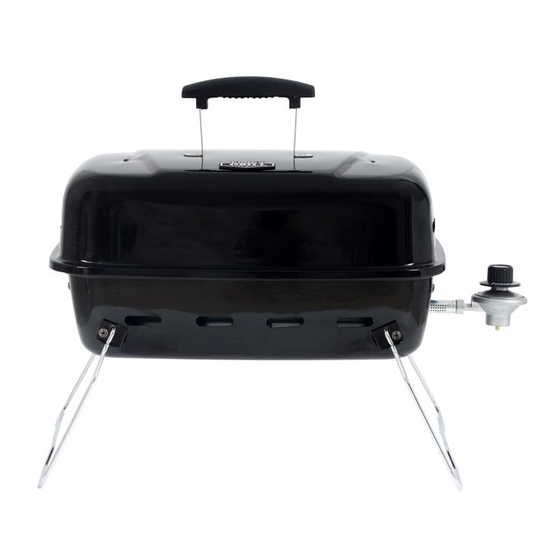

EXPERT GRILL XG10-108-002-01 Owner's Manual

Outdoor lp gas barbecue grill
Hide thumbs

Advertisement

Quick Links

Download this manual
Outdoor LP Gas Barbecue Grill
Model No. XG10-108-002-01 / GBT2014W

Table of Contents

. . . . . . . . . . . . . . . . . . . .
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . 13
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
This instruction booklet contains important safety
information . Please read and keep for future reference .
If you are assembling this unit for someone else, give
this manual to him or her to read and save for future
reference .
California Proposition 65: Handling the brass material
on this product exposes you to lead, a chemical known
to the State of California to cause cancer, and birth
defects or other reproductive harm . Wash your hands
after handling this product .
WARNING
CALIFONIA PROPOSITION 65
This product can expose you to
chemicals including benzene, which
is known to the State of California to
cause cancer.
For more information, go to www.
P65Warnings.ca.gov.
Manufactured in China for: RevoAce Inc . Limited
Hong Kong, China
1 .800 .694 .0013 • service@revoace .com
8:00 am to 4:00 pm central time, Monday to Friday .
OWNER'S MANUAL
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or
other flammable liquids or vapors in
the vicinity of this or any other
appliance.
2. An LP cylinder not connected for
use shall not be stored in the vicinity
of this or any other appliance.
DANGER
Page 2
Do not leave this appliance
unattended, especially cooking the
fatty meat and close the lid too long
time. Failure to follow the dangers,
warnings and cautions in this manual
may result in serious bodily injury
or death, or in a fire or an explosion
causing damage to property.
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only!
DANGER
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance and immediately
call your fire department. Failure
to follow these instructions could
result in fire or explosion which
could cause property damage,
personal injury or death.
.
(outside any enclosure)
GBT2014W-OM-E-F100

Advertisement

loading
Need help?

Need help?

Do you have a question about the XG10-108-002-01 and is the answer not in the manual?

Questions and answers

Trish Kilduff
July 5, 2025

Is there a way to make cleaning easier than taking it apart

0

Related Manuals for EXPERT GRILL XG10-108-002-01

Summary of Contents for EXPERT GRILL XG10-108-002-01

  • Page 1: Table Of Contents

    OWNER’S MANUAL Outdoor LP Gas Barbecue Grill Model No. XG10-108-002-01 / GBT2014W WARNING FOR YOUR SAFETY: 1. Do NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance. 2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

  • Page 2: Important Safeguards

    FOR YOUR SAFETY W DANGER 1. Never operate this appliance unattended. 2. Never operate this appliance within 10 ft (3.05 m) of any structure, combustible material or other gas cylinder. 3. Never operate this appliance within 25 ft (7.62 m) of any flammable liquid. 4.
  • Page 3 IMPORTANT SAFEGUARDS a. LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics before using any LP gas product. b. LP gas is explosive under pressure, heavier than air, and settles and pools in low areas. c.
  • Page 4 IMPORTANT SAFEGUARDS f. Strong odors, colds, sinus congestion, etc. may prevent the detection of propane. Use caution and common sense when testing for leaks. g. Do NOT use grill until any and all leaks are corrected. If you are unable to stop a leak, disconnect the LP gas supply.

  • Page 5: Limited Warranty

    IMPORTANT SAFEGUARDS W Disconnect LP gas tank when not in use. W Always place your grill on a hard, non-combustible, level surface. An asphalt or blacktop surface may not be acceptable for this purpose. W Do NOT use directly on wooden decks. W Move gas hoses as far away as possible from hot surfaces and dripping hot grease.

  • Page 6: Expanded View & Hardware

    Expanded View...
  • Page 7 Parts List Handle G1904-010 Regulator/Control Knob B0308-C23 Brand Plate* B0109-LBA Leg Support A (2) G2014-080 G2014-010 Leg Support B (2) G2014-070 Lid Handle Plate G2014-020 Heat Shield G1814-040 Cooking Grid G2014-040 Leg (2) G2014-090 * Pre-assembled Heat Plate B0230-C00 Heat Plate Support (2) B0231-B00 Burner G2014-050...

  • Page 8: Assembly Instructions

    Assembly Instructions Attach Lid Handle and Lid Handle Plate DO NOT RETURN TO PLACE OF PURCHASE. Please have your owner’s manual and model number available for reference . Note: The model number can be found on the back or side of the grill .
  • Page 9 Attach Heat Plate Supports Attach Heat Shield and Burner Insert Heat Plate, Cooking Grid and attach Cover Lid Regulator/Control Knob Note: Once attached, the regulator/control knob will freely rotate to accomodate for the LP gas tank .
  • Page 10 Fold Legs and Lock Lid Note: Lid must be locked before transporting grill . Unfold Legs and Unlock Lid Note: Always open legs completely and secure in place befor lighting grill . .

  • Page 11: Operating Instructions

    Operating Instructions Figure 1 This grill is designed to operate with a 1 lb . 7 .75 in . or 10 .6 in . high disposable / 16 .4 oz . or 14 .1 oz . propane gas tank (DOT 39 Cylinder) (Figure 1) . DO NOT ATTEMPT TO REFILL ANY 1 lb.
  • Page 12 Operating Instructions (Continued) Lighting Instructions W CAUTION: Keep outdoor gas cooking appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids. W CAUTION: Do NOT obstruct the flow of combustion and ventilation air. W CAUTION: Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can lead to a fire.

  • Page 13: Cleaning And Care

    Operating Instructions (Continued) If a grease fire occurs, close the lid AND turn regulator/control knob to “ OFF,” until the grease burns out . Use caution when opening the lid as sudden flare-ups may occur . If excessive flare-ups occur, do NOT pour water onto the flames . Minimize Flare-ups: Trim excess fat from meats prior to cooking .
  • Page 14 Cleaning and Care (Continued) 10 . Clean any clogged ports with a stiff wire (such as an opened paper clip) . 11 . Inspect burner for any damage (cracks or holes) . If damage is found, replace with a new burner from manufacturer . 12 .

  • Page 15: Troubleshooting

    Troubleshooting Problem Possible Cause Prevention/Cure LP gas tank is low or empty Replace LP gas tank Turn LP gas tank valve to “ OFF” LP gas leak Wait 5 minutes for gas to clear Follow “Checking for Leaks” section Wires or electrode covered with cooking Clean wire and/or electrode with rubbing alcohol residue Burner will not light using...
