EXULUS-HD1 & EXULUS-4K1 Spatial Light Modulators
3.4.
Operating Elements
3.4.1. Front Panel
2
1
3
4
Horizontal/Vertical Fine Adjuster
Adjust the horizontal and vertical tilt of the Liquid Crystal panel. The designed adjustment range is ±3.2° for both
horizontal and vertical.
4-40 Tapped Holes
These 4-40 mounting holes are designed for the Thorlabs 30 mm cage system. For more application ideas please
refer to www.thorlabs.com.
Rev I, October 18, 2022

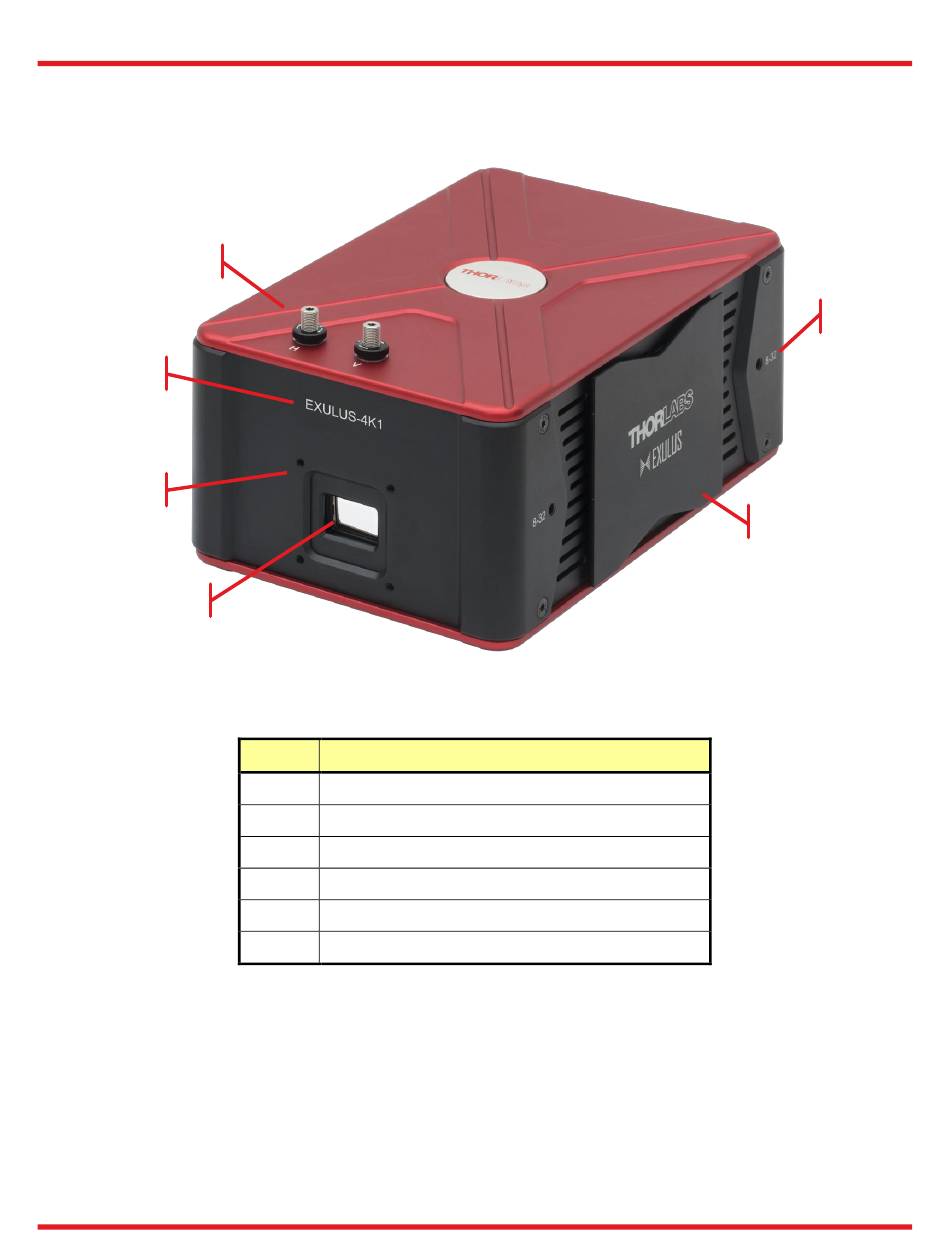

Figure 9
Callout
1
2
Horizontal/Vertical Fine Adjusters
3
30 mm Cage Mounting Holes (4-40, 4 Places)
4
5
Optical Post Mounting Hole
6
Removable Dust Cover
Front View
Description
Item #
SLM Panel
Chapter 3: Description
5
6
Page 5
