EXULUS-HD1 & EXULUS-4K1 Spatial Light Modulators
•
SLM Setting
o
Screen ID: Normally, the main computer screen is recognized as Screen ID 1 and the SLM panel
as Screen ID 2. However, in some cases, especially for systems with multiple screens, the SLM's
Screen ID might be different. Therefore it needs to be properly set in SLM Setting Window.
Otherwise the SLM does not respond to all the operations by this application.
o
Screen Flip: Flip the SLM panel in Horizontal or Vertical orientation.
o
Firmware Build Date: Show the Firmware Build Date of the connected unit.
Update
Update the software to the most up-to-date version, if available.
Support
For technical support, it launches Microsoft Outlook (if installed) and addresses to techsupport@thorlabs.com.
Help
Opens the SLM help documents.
Thorlabs Logo
Open the Thorlabs homepage by clicking the logo.

5.3.2. Preview Window

The Preview Window provides the preview of the image to be displayed on the SLM.
Page 24

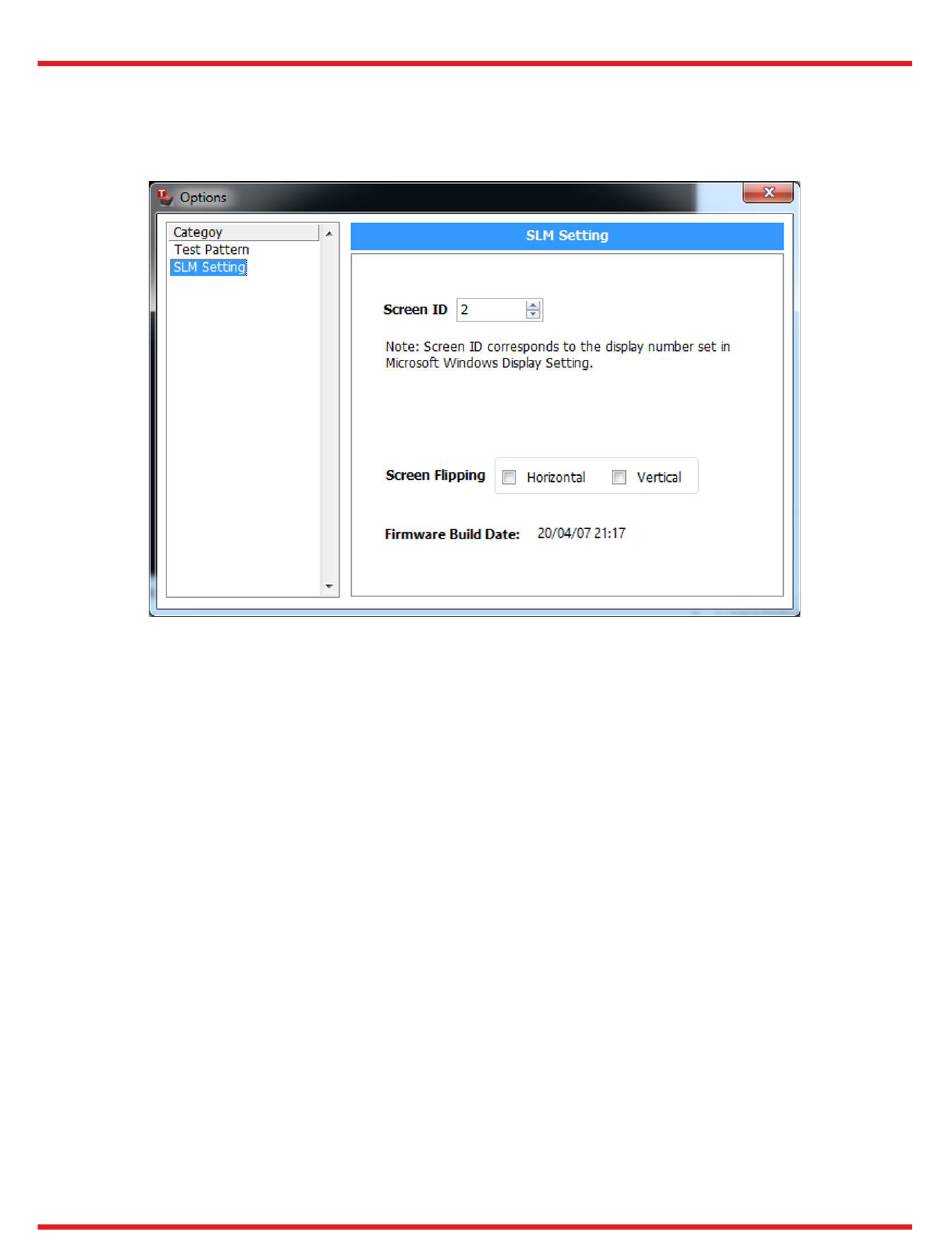

Figure 19 SLM screen ID setting
Chapter 5: Software Operation
CTN008794-D02
