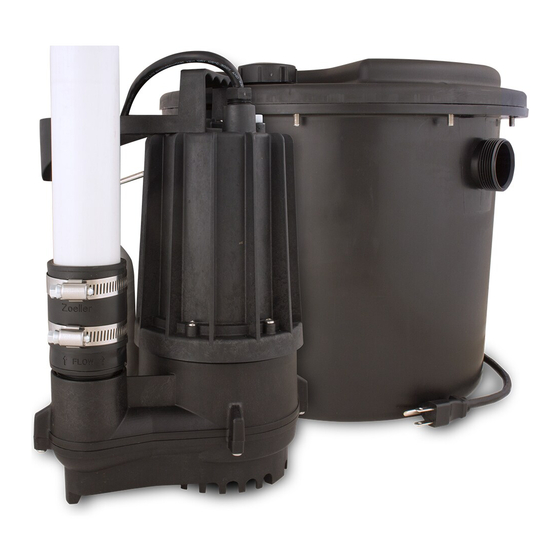

Zoeller 1104-0082 Quick Reference Manual

DRAIN PUMP
SYSTEM
MODEL #1104-0082
QUICK REFERENCE GUIDE.
SEE INSTRUCTION MANUAL FOR COMPLETE
DETAILS.
• Always disconnect power source
before attempting to install,
service or maintain the pump.
• Never handle a pump with wet
hands or when standing on wet
or damp surface or in water.
Fatal electrical shock could
occur.
• This pump is not designed for
pumping effluent or sewage.
• Pump only clear water. Do not
pump flammable or explosive
fluids such as gasoline, fuel oil,
kerosene, etc. Do not use in
a flammable and/or explosive
atmosphere. Failure to follow
these warnings could result in
death or serious injury and/or
property damage.
4

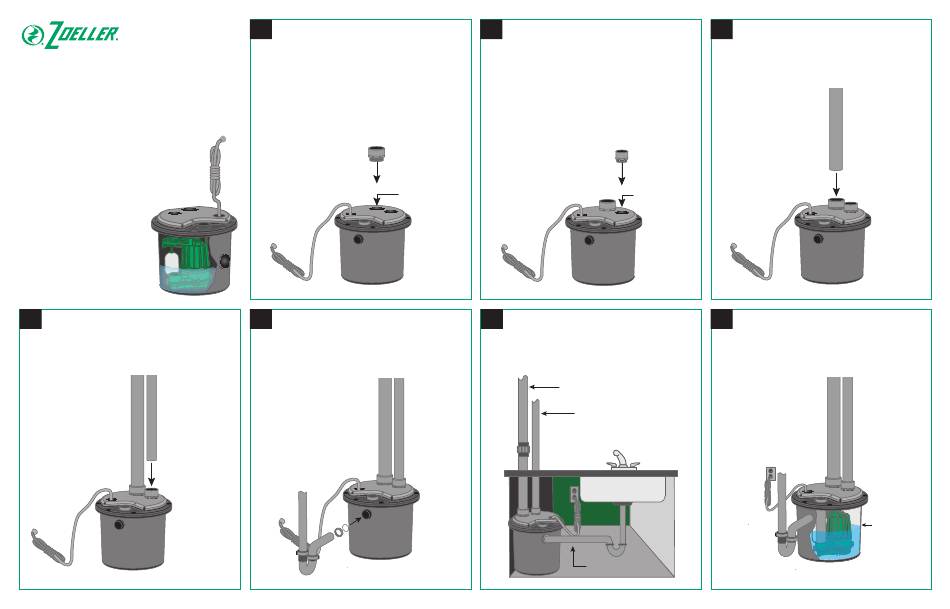

Attach rigid 1-1/2-in discharge pipe to
the 1-1/2-in slip coupling, and plumb
into existing drain pipe according to local,
regional,a and state codes. Use check valve
as required.
Zoeller is a registered trademark of Zoeller Co. All Rights Reserved.
®
1
Thread 2-in slip coupling into the vent
opening on the top of the basin.
Vent
Opening
5
Thread compression fitting into opening on
the side of the basin. Insert drain pipe into
1-1/4-in slip coupling. Insert drain pipe
into the inlet opening on the side of the
basin and tighten fitting.
2
Thread 1-1/2-in slip coupling into the
discharge opening at the top of the basin.
Discharge
Opening
6
Connect power cord to GFCI outlet.
Vent Pipe
Discharge Pipe
Inlet Pipe
3
Attach rigid 2-in vent pipe to the 2-in slip
coupling according to local, regional, and
state codes.
7
Fill the basin with water to check operation.
The pump will start when the water level
has activated the float switch.
On Level
025180 A
