- Page 1 XFADE 1U Stereo Crossfader Manual (English) Revision: 2022.11.18...
-
Page 2: Table Of Contents
TABLE OF CONTENTS COMPLIANCE INSTALLATION Before You Start Installing Your Module OVERVIEW FRONT PANEL Inputs Outputs Controls BACK PANEL TECHNICAL SPECIFICATIONS XFADE 1U Manual... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Installation
INSTALLATION This module is designed for use within an Intellijel-standard 1U row, such as contained within the Intellijel Palette, or 4U and 7U Eurorack cases. Intellijel’s 1U specification is derived from the Eurorack mechanical specification set by Doepfer that is designed to support the use of lipped rails within industry standard rack heights. -
Page 5: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labeled with “-12V” and/or a thick white stripe,... -
Page 6: Overview

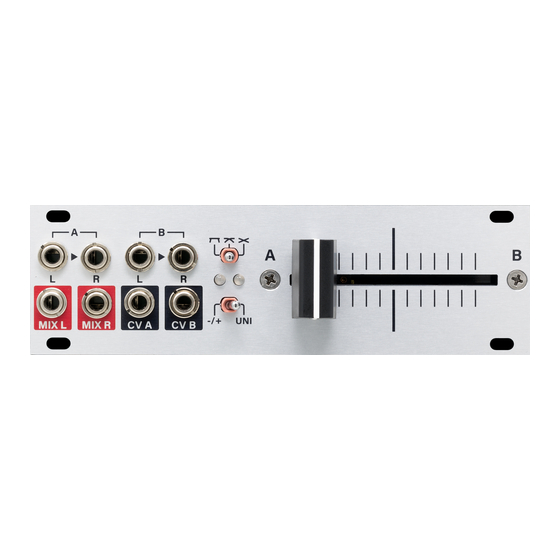

OVERVIEW XFADE 1U is a classic DJ-style stereo crossfader, with a few extra tricks up its sleeve. It has an “A” side with L+R inputs; and a “B” side, also with L+R inputs. The Crossfader blends the two signals together — crossfading one into the other depending on the position of the slider and the selected XFADE Shape. -
Page 7: Front Panel
CV B Out - Outputs a voltage that corresponds to the position of the Crossfader relative to the “B” side. The actual voltage is determined by 1) how close the crossfader is to the “B” side; 2) the selected XFADE Shape ; and 3) the Polarity switch. XFADE 1U Manual... -
Page 8: Controls
5% into the crossfade; where it stays for the remainder of the fade. Throughout most of the middle range, both the “A” side and “B” side levels are at their maximum. XFADE 1U Manual... - Page 9 “A” side linearly decreases in amplitude as the level present from the “B” side linearly increases in amplitude. In the middle, “A” side levels and “B” side levels are both cut by 50%. XFADE 1U Manual...
-
Page 10: Back Panel
XFADE 1U module ships with one 3-pin Link cable. Use this to connect XFADE 1U’s MIX output to the input of a compatible, 3-pin equipped Intellijel module (such as a Mixup ), or to the 3-pin Link connector that feeds the output jacks on your Intellijel 7U or Palette case. See those manuals for more information.
