Summary of Contents for ADJ ULTRA BEAM BAR 12CW

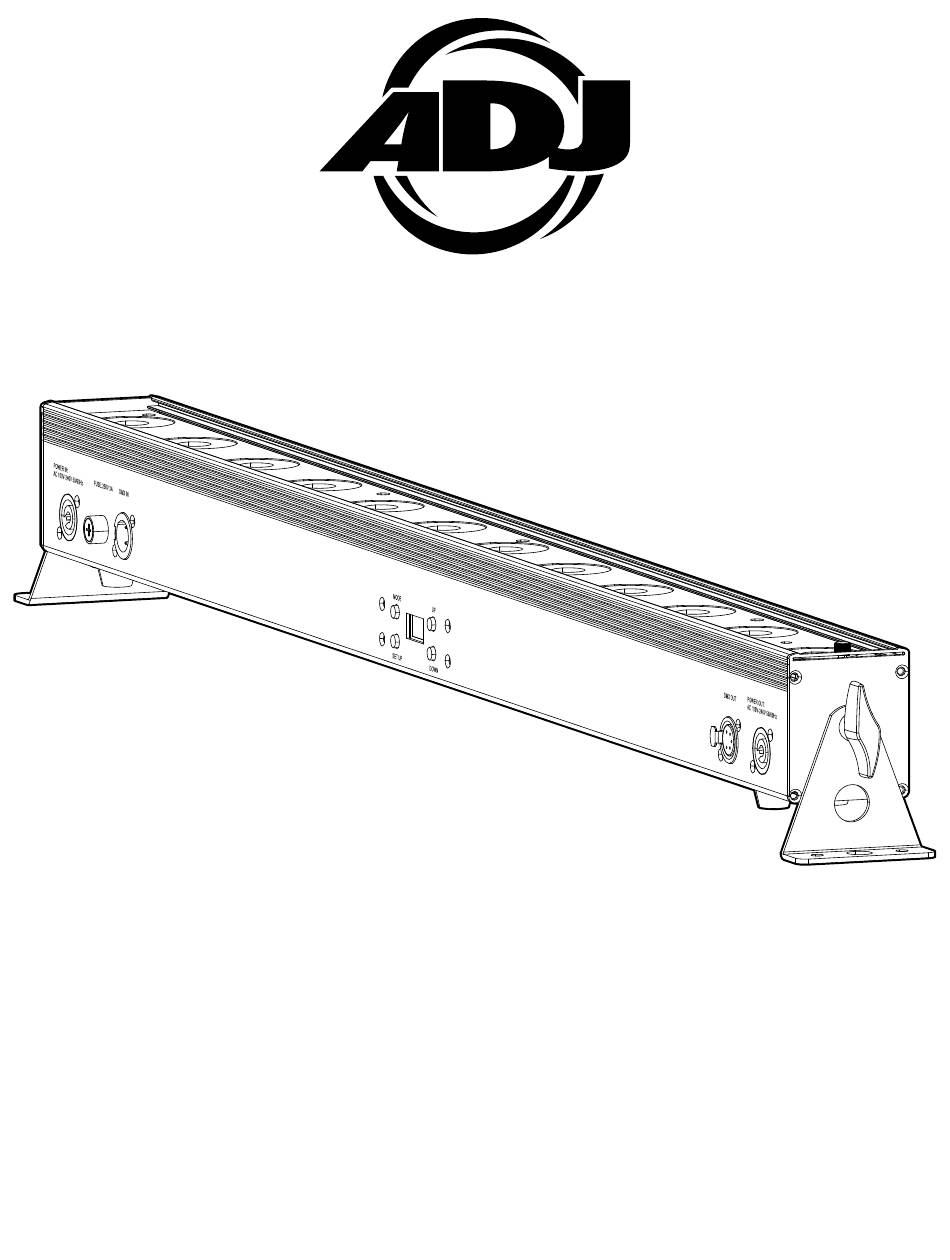

  • Page 1 ULTRA BEAM BAR 12CW User Manual...
  • Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 3 C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Guidelines Overview Installation Guidelines Accessory Installation: Lens System Menu Dimmer Modes and Curves DMX Setup DMX Traits Pixel Flip Remote Device Management (RDM) Cleaning and Maintenance Specifications Dimensions...
  • Page 4 Please do not discard the shipping carton in the trash. Please recycle whenever possible. FOR SOFTWARE SUPPORT, CONTACT ADJ CUSTOMER SUPPORT. CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions.

  • Page 5: L I M I T E D Wa R R A N T Y ( U S A O N Ly )

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 6: Included Items

    WA R R A N T Y R E G I S T R AT I O N The Ultra Beam Bar 12CW carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.

  • Page 7: Safety Guidelines

    S A F E T Y G U I D E L I N E S PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED. THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY.
  • Page 8 O V E R V I E W Bracket Adjustment Knob Mounting Bracket Rubber Feet Safety Cable Attachment Point...

  • Page 9: Electrical Connections

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS).

  • Page 10: Safety Cable

    I N S TA L L AT I O N G U I D E L I N E S INSTALLATION This fixture features brackets for the attachment of mounting clamps or screws. If screwing to a surface, use M6x25 Self-Tapping Screws. There is also a safetycable attachment point located on the bottom of fixture near one end (see below). Be sure to attach a separate SAFETY CABLE of the appropriate weight rating to a safety cable attachment point.
  • Page 11 I N S TA L L AT I O N G U I D E L I N E S RIGGING Overhead rigging requires extensive experience, including among others, calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture.
  • Page 12 I N S TA L L AT I O N G U I D E L I N E S POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS External sources of light beams from direct sunlight, lighting and moving head fixtures, and lasers, which are focused directly towards the exterior housing and/or penetrate the front lens opening of Elation lighting fixtures, can cause severe internal damage including burning of optics, dichroic color filters, glass and metal gobos, prisms, animation wheels, frost filters, iris, shutters, motors, belts,...
  • Page 13 A C C E S S O R Y I N S TA L L AT I O N : L E N S Locate Lens Thumb Screw and unscrew it. Carefully slide Lens into the Lens Slot. Once in place, secure the Lens by screwing Thumb Screw clockwise to secure it.

  • Page 14: System Menu

    S Y S T E M M E N U This unit features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. Pressing the MODE button will cycle through the various Main Menu options. When the desired Main Menu option is displayed on the screen, press the SET UP button to enter the sub-menu, then use the UP and DOWN buttons to scroll through sub-menu options.
  • Page 15 S Y S T E M M E N U - E N G L I S H MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) 001 - 512 Address DMX Settings Ch. Mode 1ch, 3ch, 12ch, 14ch, 19ch Hold, Blackout, Manual, Internal Programs No DMX Primary/Secondary Mode...
  • Page 16 D I M M E R M O D E S A N D C U R V E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default)

  • Page 17: D M X S E T U P

    2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior.

  • Page 18: Dmx Addressing

    D M X S E T U P DMX ADDRESSING All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control signal sent out from the DMX controller. The assignment of this starting DMX address is achieved by setting the correct DMX address on the digital control display on the fixture. You can set the same starting address for all fixtures or a group of fixtures, or set different addresses for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react in the same way. In this case, please note that changing the settings of one channel will affect all the fixtures simultaneously. If you set each fixture to a different DMX address, each unit will “listen” starting at the channel num- ber you have set, based on the quantity of DMX channels of each fixture. That means changing the settings of one channel will only affect the selected fixture. As an example, when operating this device in 3 channel mode, you should set the starting DMX address of the first unit to 1, the second unit to 4 (1 + 3), the third unit to 7 (1 + 3 + 3), and so on. (See the chart below for more details.) Channel Mode Unit 1 Address Unit 2 Address Unit 3 Address Unit 4 Address 1 Channels 3 Channels 12 Channels 14 Channels...

  • Page 19: Dmx Traits

    D M X T R A I T S CHANNEL FUNCTION VALUES 12Ch 14Ch 19Ch All White, 0~100% 0-255 0-255 White 1, 0~100% White 2, 0~100% 0-255 0-255 White 3, 0~100% White 4, 0~100% 0-255 0-255 White 5, 0~100% White 6, 0~100% 0-255 White 7, 0~100% 0-255...
  • Page 20 D M X T R A I T S CHANNEL FUNCTION VALUES 12Ch 14Ch 19Ch Dim Mode 0-20 Default to Unit Setting 21-40 Standard 41-60 Stage 61-80 81-100 Architectural 101-120 Theatre 121-140 Stage 2 141-160 Dim Speed from Fast to Slow (0.1-10s) 161-255 Default to Unit Setting Dim Curves 0-20...
  • Page 21 P I X E L F L I P PIXEL FLIP OFF PIXEL FLIP ON...
  • Page 22 R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 23: Cleaning And Maintenance

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.
  • Page 24 Multi-voltage operation: AC 100V-240V 50/60Hz • Power Draw: 60W • Daisy-chain power link (Up to 17 Ultra Beam Bar 12CW’s can be linked @120V and up to 32 can be linked @230V) Dimensions / Weight: • Dimensions (LxWxH): 2.96” x 42.60” x 4.2” (75x1082x106.7mm) •...
  • Page 25 D I M E N S I O N S Dimensions are not drawn to scale. 4.2in. [106.7mm] 3.9in. [98.0mm] 2.6in. [65.5mm]...

  • Page 26: Order Code

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM ULT012 12262200080 ADJ Ultra Beam BAR 12CW 1x40° Linear Diffusion Lens UBL912 TRIGGER CLAMP N/A Heavy Duty Wrap Around Hook Style Clamp TOU014 Accu-Cable Tour Link 5P5 - 5 FT, 5-pin DMX Data Cable Additional Cable Lengths Available FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
