Enerpac PTE-3404B Instruction Sheet

L2085 Rev. B
Index:
E
nglish: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Français: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-11
Deutsch: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-16
Italiano: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-21
Español: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22-26
Nederlands: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27-32
Portuguese: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33-37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-43
1.0 IMPORTANT RECEIVING INSTRUCTIONS
Visually inspect all components for shipping damage. Shipping
damage is not covered by warranty. If shipping damage is found,
notify carrier at once. The carrier is responsible for all repair and
replacement costs resulting from damage in shipment.
SAFETY FIRST
2.0 SAFETY ISSUES
Read all instructions, warnings and cautions
carefully. Follow all safety precautions to avoid
personal injury or property damage during system
operation. Enerpac cannot be responsible for damage or injury
resulting from unsafe product use, lack of maintenance or incorrect
product and/or system operation. Contact Enerpac when in doubt
as to the safety precautions and operations. If you have never been
trained on high-pressure hydraulic safety, consult your distribution
or service center for a free Enerpac Hydraulic safety course.
Failure to comply with the following cautions and warnings could
cause equipment damage and personal injury.
A CAUTION is used to indicate correct operating or maintenance
procedures and practices to prevent damage to, or destruction of
equipment or other property.
A WARNING indicates a potential danger that requires correct
procedures or practices to avoid personal injury.
A DANGER is only used when your action or lack of action may
cause serious injury or even death.
WARNING: Wear proper personal protective gear
when operating hydraulic equipment.
WARNING: Stay clear of loads supported by
hydraulics. A cylinder, when used as a load lifting
device, should never be used as a load holding device.
After the load has been raised or lowered, it must always be
blocked mechanically.
WARNING: USE ONLY RIGID PIECES TO HOLD LOADS.
Carefully select steel or wood blocks that are capable
of supporting the load. Never use a hydraulic cylinder
as a shim or spacer in any lifting or pressing application
. DANGER: To avoid personal injury keep hands
and feet away from cylinder and workpiece
during operation.
®
06/01
Instruction Sheet

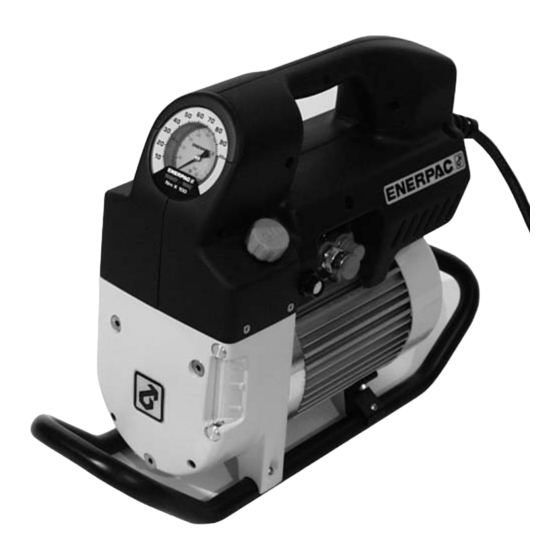

PTE-3404B, PTE-3404E, PTE-3404M,
PTE-3404T, PTE-3404W Torque Wrench Pump
WARNING: Do not exceed equipment ratings. Never
attempt to lift a load weighing more than the capacity
of the cylinder. Overloading causes equipment failure
and possible personal injury. The cylinders are designed for a
max. pressure of 700 bar [10,000 psi]. Do not connect a jack or
cylinder to a pump with a higher pressure rating.
Never set the relief valve to a higher pressure than the
maximum rated pressure of the pump. Higher settings
may result in equipment damage and/or personal
injury.
WARNING: The system operating pressure must not
exceed the pressure rating of the lowest rated
component in the system. Install pressure gauges in
the system to monitor operating pressure. It is your window to
what is happening in the system.
CAUTION: Avoid damaging hydraulic hose. Avoid
sharp bends and kinks when routing hydraulic hoses.
Using a bent or kinked hose will cause severe back-
pressure. Sharp bends and kinks will internally damage the
hose leading to premature hose failure.
Do not drop heavy objects on hose. A sharp impact
may cause internal damage to hose wire strands.
Applying pressure to a damaged hose may cause it
to rupture.
IMPORTANT: Do not lift hydraulic equipment by the
hoses or swivel couplers. Use the carrying handle or
other means of safe transport.
CAUTION: Keep hydraulic equipment away from
flames and heat. Excessive heat will soften packings
and seals, resulting in fluid leaks. Heat also weakens
hose materials and packings. For optimum performance do
not expose equipment to temperatures of 65°C [150°F] or
higher. Protect hoses and cylinders from weld spatter.
