Read the instructions in this manual before beginning installation. Save these instructions and refer to
them for inspection, maintenance, and troubleshooting information.
For questions regarding the operation, installation or maintenance of this product, visit bradleycorp.com or call 800.BRADLEY (800.272.3539).
Product warranties and parts information may also be found under "Resources" on our website at bradleycorp.com.
215-1829 Rev. E: ECO 22-08-005
© 2022 Bradley
Page 1 of 13
9/1/2022
Installation

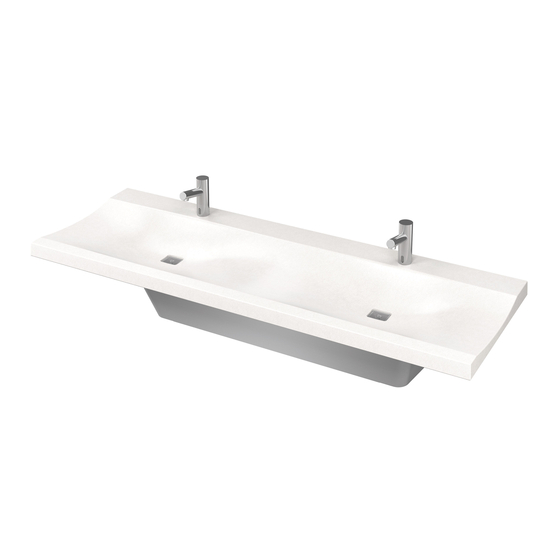

LVSD2
Verge
Lavatory System - LVS-Series
®
with Evero
Natural Quartz Material
®
Table of Contents
Safety Information .............................................................2
Supplies Required .............................................................2
Components ......................................................................3
Dimensions ........................................................................4
Structural Rough-Ins ..........................................................6
Plumbing and Electrical Rough-Ins - Shared Soap ...........8
Bracket Mounting ...............................................................9
Drain Assembly .................................................................9
Faucet Installation ............................................................10
Bowl Mounting (to Bracket and Wall)...............................10
Strainer and P-Trap .........................................................11
Adjust Temperature with Water Running .........................11
Access Panel - Fold-Up Option ......................................12
Access Panel - Swing-Down Option ...............................12
Cleaning and Maintenance ..............................................13
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
P.O. Box 309
+1 262 251 6000
bradleycorp.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bradley Verge LVSD2
Summary of Contents for Bradley Verge LVSD2
-
Page 1: Table Of Contents
For questions regarding the operation, installation or maintenance of this product, visit bradleycorp.com or call 800.BRADLEY (800.272.3539). Product warranties and parts information may also be found under “Resources” on our website at bradleycorp.com. -
Page 2: Safety Information
• OPTIONAL: (2) ³⁄₈" NPS x ³⁄₈" NPT Male Adapter for IR-DCD faucet only • Screen filter(s) as needed, if not included with faucet(s) • Drill • Crescent wrench • Tape measure • Phillips screw driver • Flat head screw driver • Level Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022... -
Page 3: Components
Verge Faucets S53-3100, S53-3300, S53-3500, & S53-3700 Plastic Hose Supply Fittings (Standard) Hose Prepack (S45-2510) Plastic Hose Stainless (S45-2731) Steel (S45-2999) Hose for Verge Faucets Hose Prepack S53-3100, S53-3300, (S45-2730) S53-3500, & S53-3700 Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022... -
Page 4: Dimensions
Top View (shown with Crestt Series Faucet & Soap) 15" 15" (381) (381) 6" 6" (152) (152) 4¼" (165) 21" (533) A = Personal soap locations 2" (51) Front View 60" (1524) 1⁷⁄₈" (48) 17½" (445) 35¾" (908) Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022... - Page 5 31" (787) 33½ (851) 33" (838) 32½" (826) Dim B 27" (686) 24" (610) 29⁵⁄₈" (752) 28¹⁵⁄₁₆" (735) 28¹⁵⁄₁₆" (735) Dim C 13⁷⁄₁₆" (341) 16⁵⁄₁₆" (414) 15⁷⁄₁₆" (391) 14¹⁵⁄₁₆" (379) 15¹⁵⁄₁₆ (405) Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022...
-
Page 6: Structural Rough-Ins
Install wall anchor with a minimum pull-out force of 100 lb per local codes at locations shown for swing-down access panel option. RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FIXTURE STYLE 33½" No Adjustment Standard Height, ADA, TAS, and CSA 30½" Subtract 3" Juvenile, ADA, and TAS 32½" Subtract 1" AODA 33" Subtract ½" Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022... -
Page 7: Plumbing And Electrical Rough-Ins - Personal Soap
½" Nominal (5/8" O.D. Comp.) Hot/Cold supplies, Stub-out 2" from wall 110V GFI protected electrical outlet (AC faucet and soap only) #10 Anchors for Faucet Control Box Installation #10 Anchors for Soap Tank Installation Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022... -
Page 8: Plumbing And Electrical Rough-Ins - Shared Soap
½" Nominal (5/8" O.D. Comp.) Hot/Cold supplies, Stub-out 2" from wall 110V GFI protected electrical outlet (AC faucet and soap only) #10 Anchors for Faucet Control Box Installation #10 Anchors for Soap Tank Installation Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022... -
Page 9: Bracket Mounting
Screw Assemble the remaining components as shown and thread the four screws through the drain adapter and into the basin inserts. Ensure the screws compress the drain adapter evenly onto the basin. Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022... -
Page 10: Faucet Installation
Press firmly on the back of the bowl rough-in requirement (supplied by to seat the bowl flange into the wall installer). bracket lip. Ensure bowl is level. Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022... -
Page 11: Strainer And P-Trap
(do not remove). Using cover, turn cartridge gently until desired water temperature is reached. Do not turn past stops as this may damage unit. Push cover down and tighten screw. Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022... -
Page 12: Access Panel - Fold-Up Option
After access panel brackets are slots. Route the access panel properly adjusted, mark location down and adjust the access panel and install the #10 bottom screws brackets if necessary. to secure the brackets in place. Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022... -
Page 13: Cleaning And Maintenance
Protecting the Surface: To optimize material performance in high use areas, it is recommended to apply DryTreat Stain-Proof Original or equivalent as needed. Repair Kits: Evero repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days.
