Installation
LVAD2
Verge

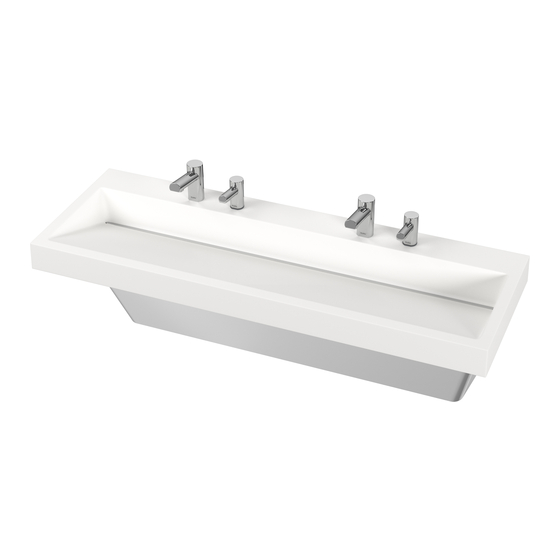

Wash Basin - LVA-Series with
®
Evero
Natural Quartz Material
®
Table of Contents
Components ..................................................................3-4
Supplies Required .............................................................5
Dimensions ....................................................................5-6
Rough-Ins .......................................................................7-8
Overflow Plug Assembly ....................................................9
Drain Assembly .................................................................9
Faucets and Optional Soap Valve ...................................10
Bowl Mounting .................................................................10
Strainer and P-trap ..........................................................11
Adjust Temperature ..........................................................11
Access Panel ...................................................................12
Cleaning and Maintenance ..............................................13
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
P.O. Box 309
bradleycorp.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bradley LVA Series
Summary of Contents for Bradley LVA Series
-
Page 1: Table Of Contents
Adjust Temperature ............11 Access Panel ..............12 Cleaning and Maintenance ..........13 P.O. Box 309 215-1850 Rev. A; ECN 17-08-002 Menomonee Falls, WI 53052 USA © 2017 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 Page 1 of 13 4/17/2017 bradleycorp.com... - Page 2 If any parts are missing, do not begin installation until you obtain the missing parts. For standard height mounting, do not exceed the recommended 33.5" distance from the fixture rim to the finished floor. Bradley • 215-1850 Rev. A; ECN 17-08-002 4/17/2017...
-
Page 3: Components
TMV Valve Tempered Supply TMV Supply (1/2" NPTM Connections Connections Outlet) Supply Fittings (S45-2701) Plastic Hose (S45-2511) Plastic Hose Plastic Hose Supply Hose Prepack Stainless Fittings (S45-2731) Steel (S45-2510) Hose Hose Prepack (S45-2730) Bradley • 215-1850 Rev. A; ECN 17-08-002 4/17/2017... - Page 4 CAP-DCA Faucets includes Transformer (S53-338), CAP-DCA Faucet Adapter (S53-339), and Grounding (S53-334) Kit (S53-349) for CAP-DCA Faucets **Adapter S45-2873 included with faucet Optional Transformer 6315-KT0000 Soap Dispenser 6324-68 Soap Dispenser 6334 Soap Dispenser Bradley • 215-1850 Rev. A; ECN 17-08-002 4/17/2017...
-
Page 5: Supplies Required
15" 15" 2-1/2" (381mm) (381mm) 5" (64mm) 6" (127mm) 6" (152mm) (152mm) 21" (533mm) 14-3/8" (366mm) 56-7/8" 1-5/8" (1444mm) (40mm) Front View 59-3/4" 3-3/4" (1518mm) (95mm) 60" 20" (1524mm) (509mm) 50" (1270mm) Bradley • 215-1850 Rev. A; ECN 17-08-002 4/17/2017... - Page 6 ADA/TAS Standard Height (Children 6-12 years) CSA Standard Height Dim A 33-1/2" (851mm) 30-1/2" (775mm) 33-1/2" (851mm) Dim B 27" (686mm) 24" (610mm) 29-29/32" (760mm) Dim C 13-1/2" (343mm) 10-1/2" (267mm) 13-1/2" (536mm) Bradley • 215-1850 Rev. A; ECN 17-08-002 4/17/2017...
-
Page 7: Rough-Ins
Install wall anchor with a minimum pull-out force of 100 lbs. per local codes at locations shown RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FIXTURE STYLE 33½" No Adjustment Standard Height, ADA, TAS and CSA 30½" Subtract 3" Juvenile, ADA and TAS Bradley • 215-1850 Rev. A; ECN 17-08-002 4/17/2017... - Page 8 17-1/2" (444) 2-1/4" (57) Finished Floor CODE DESCRIPTION QTY. 1½" NPT Drain, Stub-out 2" from wall ½" Nominal (⁵⁄₈" O.D. Comp.) Hot/Cold supplies, Stub-out 2" from wall 110V GFI protected electrical outlet Bradley • 215-1850 Rev. A; ECN 17-08-002 4/17/2017...
-
Page 9: Overflow Plug Assembly
Screw Assemble the remaining components as shown and thread the four screws through the drain adapter and into the basin inserts. Ensure the screws compress the drain adapter evenly onto the basin. Bradley • 215-1850 Rev. A; ECN 17-08-002 4/17/2017... -
Page 10: Faucets And Optional Soap Valve
Press firmly on the back of the bowl using fasteners per the structural to seat the bowl flange into the wall rough-in requirement (supplied by bracket lip. Ensure bowl is level. installer). Bradley • 215-1850 Rev. A; ECN 17-08-002 4/17/2017... -
Page 11: Strainer And P-Trap
Using cover, turn cartridge gently until desired water temperature is reached. Water in excess of 110°F Do not turn past stops as this may (43°C) may cause scalding. damage unit. Push cover down and tighten screw. Bradley • 215-1850 Rev. A; ECN 17-08-002 4/17/2017... -
Page 12: Access Panel
Rotate access panel up and secure by rotating thumbscrews to the closed position To open access panel, rotate thumb screw, slightly push panel up and swing access panel down. Do not remove thumbscrews. Bradley • 215-1850 Rev. A; ECN 17-08-002 4/17/2017... -
Page 13: Cleaning And Maintenance
Protecting the Surface: To optimize material performance in high use areas, it is recommended to apply DryTreat Stain-Proof Original or equivalent as needed. Repair Kits: Evero repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days.
