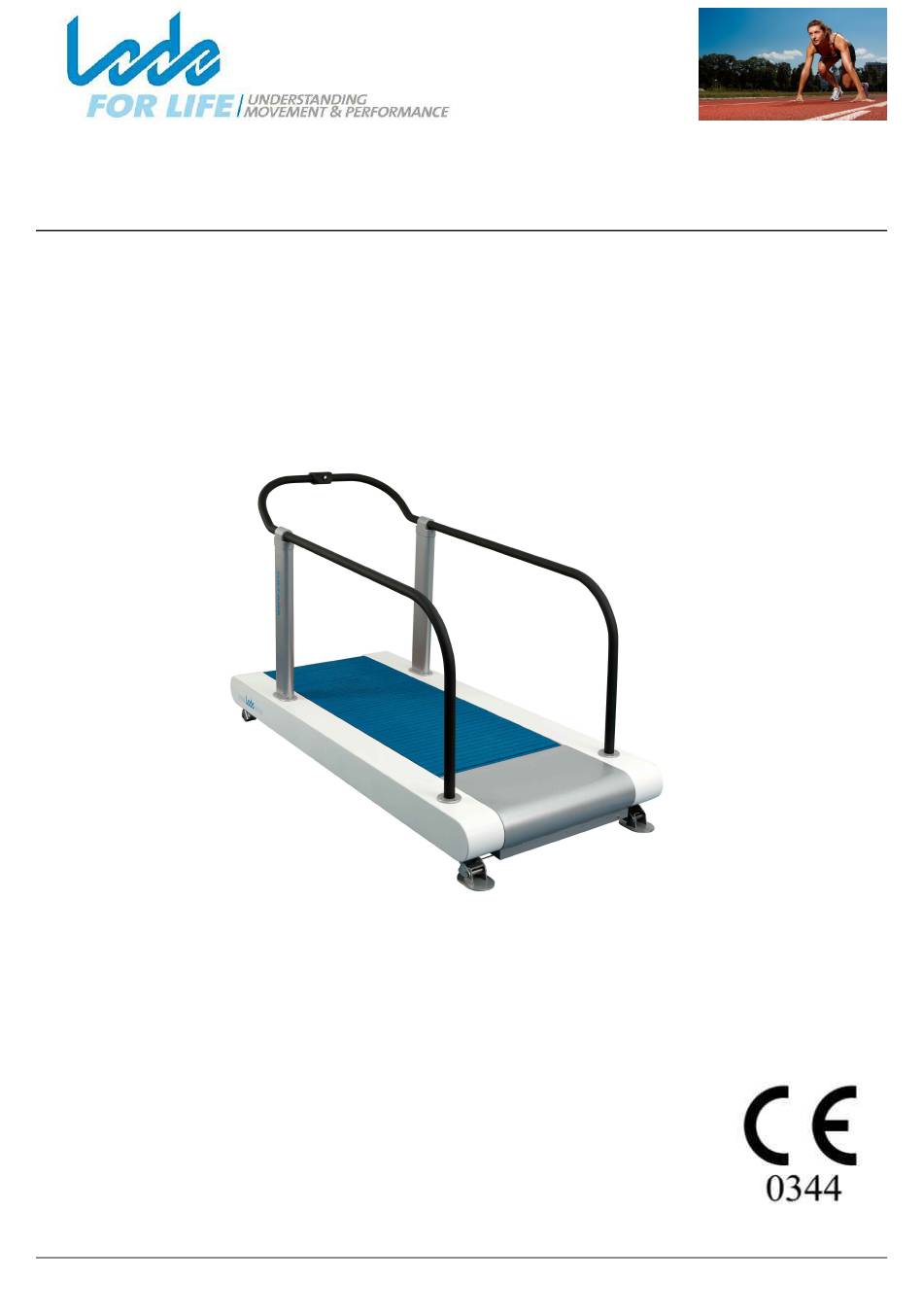

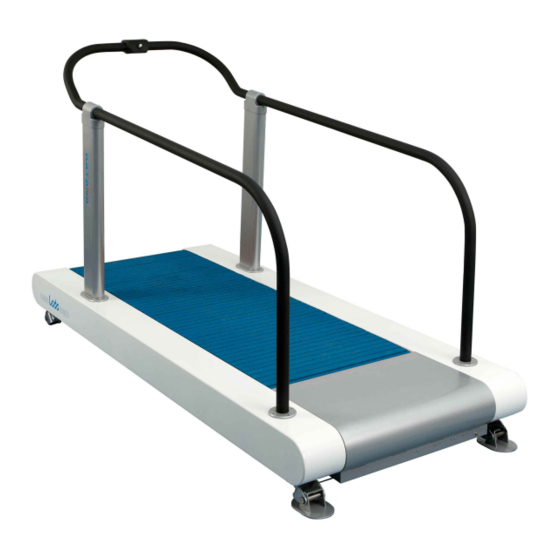

- Page 1 Manual - Katana Sport Sports Medicine Lode BV Zernikepark 16 NL 9747 AN Groningen The Netherlands t: +31 50 571 28 11 f: +31 50 571 67 46 @: ask@lode.nl www.lode.nl M934900 - MANUAL KATANA SPORT / VERSION: 1.2 - 2018-10-17...
-
Page 2: Table Of Contents
7 - Control with Control Unit 8 - Control with an External Device 8 - Control with an External Device 9 - Control with the Lode Ergometry Manager (LEM) 9 - Control with the Lode Ergometry Manager (LEM) 10 - Maintenance... -
Page 3: Intended Use
2 - Validity 2 - Validity This manual covers all Katana Sport versions starting with the following article numbers: 9349xx | : S/N 20130001 and higher Date of first issue: October 2015... - Page 4 Inspect the device for worn or loose components prior to use. Tighten / replace any loose or worn components prior to use. Do not place any loose parts or objects on the device before and during use. M934900 - MANUAL KATANA SPORT / VERSION: 1.2 - 2018-10-17 4/19...
- Page 5 Care should be taken in mounting or dismounting the ergometer. Be aware of feet when replacing the ergometer. The test subject should wear proper sports or running shoes (no spikes). M934900 - MANUAL KATANA SPORT / VERSION: 1.2 - 2018-10-17 5/19...
-
Page 6: Contra Indication
During the intended use the test subject will deliver energy. Application of the wrong dosis of energy could lead to permanent damage of the test subject health. Only use this device under supervision of a medical physician. M934900 - MANUAL KATANA SPORT / VERSION: 1.2 - 2018-10-17 6/19... -
Page 7: Definition Of Parts
Each treadmill is supplied with a carton box with additional accessories and tools, like the manual, test certificate, safety lanyard and tools for adjustments. 6 - Install your Katana treadmill ergometer 6 - Install your Katana treadmill ergometer M934900 - MANUAL KATANA SPORT / VERSION: 1.2 - 2018-10-17 7/19... -
Page 8: Emergency Stop Installation
1. While unpacking the Lode treadmill ergometer, leave the transport straps on both ends in place. 2. Place the treadmill in the location where it will be used. 3. Remove Both transport straps and remaining packaging materials. 4. The power supply cord should be installed by authorised service personnel and instructions for correct connection and anchoring must be ensured, securing that the requirements of clause 8.11.3 of... -
Page 9: Control With The Lode Ergometry Manager (Lem)
1. Connect the device with the supplied cable to the external device. You can control the device with e.g. an exercise ECG device or Metabolic Card. 2. Download the interfacing instructions from the internet at www.lode.nl after you have registered your device. -
Page 10: Cleaning
If you are not certain about the discolouring effect of a cleaning agent, you may try a little on a part of the product that is not visible during normal use. Lode cannot advise a specific cleaning agent, since local recipes may differ. The slats can be cleaned with a dry brush. - Page 11 (grounded) wall socket. Warning: moving parts, risk of squeeze Tested and certified to U.S. and Canadian National Standards by a NRTL, viz TÜV Rheinland. Compliance for U.S. and Canadian markets. M934900 - MANUAL KATANA SPORT / VERSION: 1.2 - 2018-10-17 11/19...
-
Page 12: Electromagnetic Compatibility (Emc)
FCC 18 RF ISM tested Safety notes Connector for Control Unit External Control Connector Emergency Stop RS232 Network (Proprietary Lode) 14 - Electromagnetic Compatibility (EMC) 14 - Electromagnetic Compatibility (EMC) M934900 - MANUAL KATANA SPORT / VERSION: 1.2 - 2018-10-17 12/19... -
Page 13: Emissions Test
14.1 - Emissions test The Lode equipment is intended for use in the electromagnetic environment specified below. It is the responsibility of the customer or user to ensure that the Lode equipment is used in such an environment. Emissions test: RF emissions CISPR11... -
Page 14: Immunity Test
14.2 - Immunity test The Lode equipment is intended for use in the electromagnetic environment specified below. It is the responsibility of the customer or user to ensure that the Lode equipment is used in such an environment. Immunity Test: Electrostatic discharge (ESD) EN 61000-4-2 Immunity Test: IEC 60601-Test Lev el: ±... - Page 15 The Lode equipment is intended for use in the electromagnetic environment specified below. It is the responsibility of the customer or user to ensure that the Lode equipment is used in such an environment. Immunity test: Conducted RF 61000-4-6 Immunity test:...
-
Page 16: Recommended Separation Distances
Recommended Separation Distances between Portable and Mobile RF Communication Equipment and the Lode equipment The Lode equipment is intended for use in the electromagnetic environment on which radiated RF disturbances are controlled. The customer or the user of the Lode equipment can help prevent... -
Page 17: Accessories
Possibility of downhill Ultimate safety Flexibility in exercising minute walking Blood Pressure Measurement Heart rate for treadmills Rear Elevation -25% electrical Emergency Stop Button Autospeed with ECG trigger Katana sport M934900 - MANUAL KATANA SPORT / VERSION: 1.2 - 2018-10-17 17/19... - Page 18 Removable handrail for Universal treadmill Arm USB to Serial converter RS232 cable lanyard Katana sport Support Network module connection cable Partnumber: 930930 Partnumber: 930930 Easy connection Network module connection cable M934900 - MANUAL KATANA SPORT / VERSION: 1.2 - 2018-10-17 18/19...
-
Page 19: Specifications
837.8 lbs Power requirements Power cord 3L+N+PE Power cord NEMA Maximum rated power input 5000 VA 3 x 400 V Maximum motor power 3.1 kW Order info Partnumber 934900 M934900 - MANUAL KATANA SPORT / VERSION: 1.2 - 2018-10-17 19/19...
